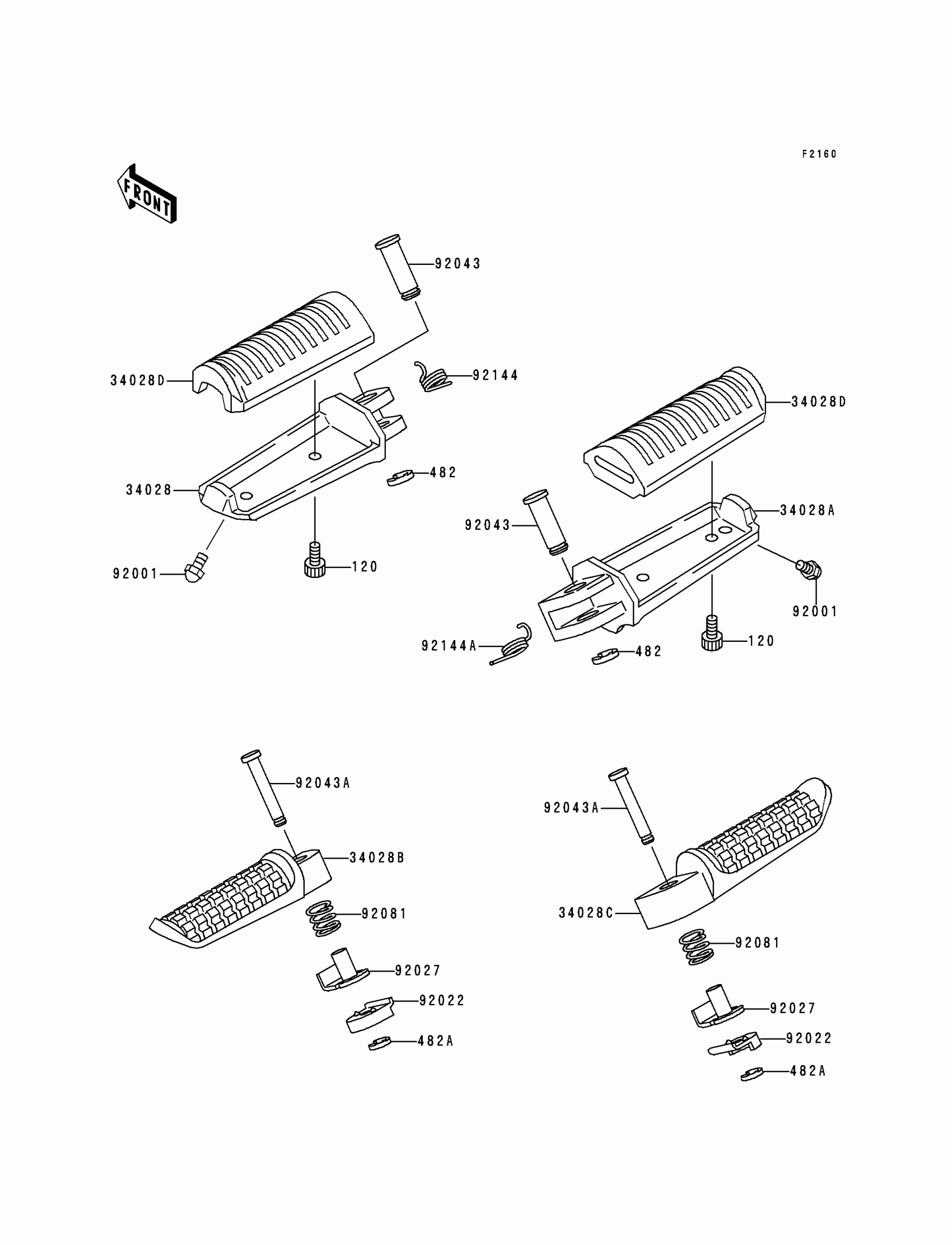

Kawasaki Ninja® ZX™-9R Footrests Diagram

Description

Price

120

BOLT-SOCKET,5X14

120Z0514

$4.35

482

CIRCLIP-TYPE-E,10MM

482L0100

$0.73

482A

CIRCLIP-TYPE-E,5MM

482L5000

$1.34

34028

STEP,FR,LH

34028-1126

$100.73

34028A

STEP,FR,RH

34028-1127

$78.36

34028B

STEP,RR,LH

34028-1191

$66.47

34028C

STEP,RR,RH

34028-1192

$66.47

34028D

STEP,FR,RUBBER

34028-1390

Unavailable

92001

BOLT,BANK SENSOR

92001-1905

$7.31

92022

WASHER,STEP,RR

92022-1507

$5.24

92027

COLLAR,STEP

92027-1732

$11.16

92043

PIN,12X37

92043-1144

$9.15

92043A

PIN,6X38.5

92043-1238

$5.23

92081

SPRING,STEP,RR

92081-1612

$4.26

92144

SPRING,STEP RETURN

92144-1567

$6.51

92144A

SPRING,STEP RETURN

92144-1568

$6.51
