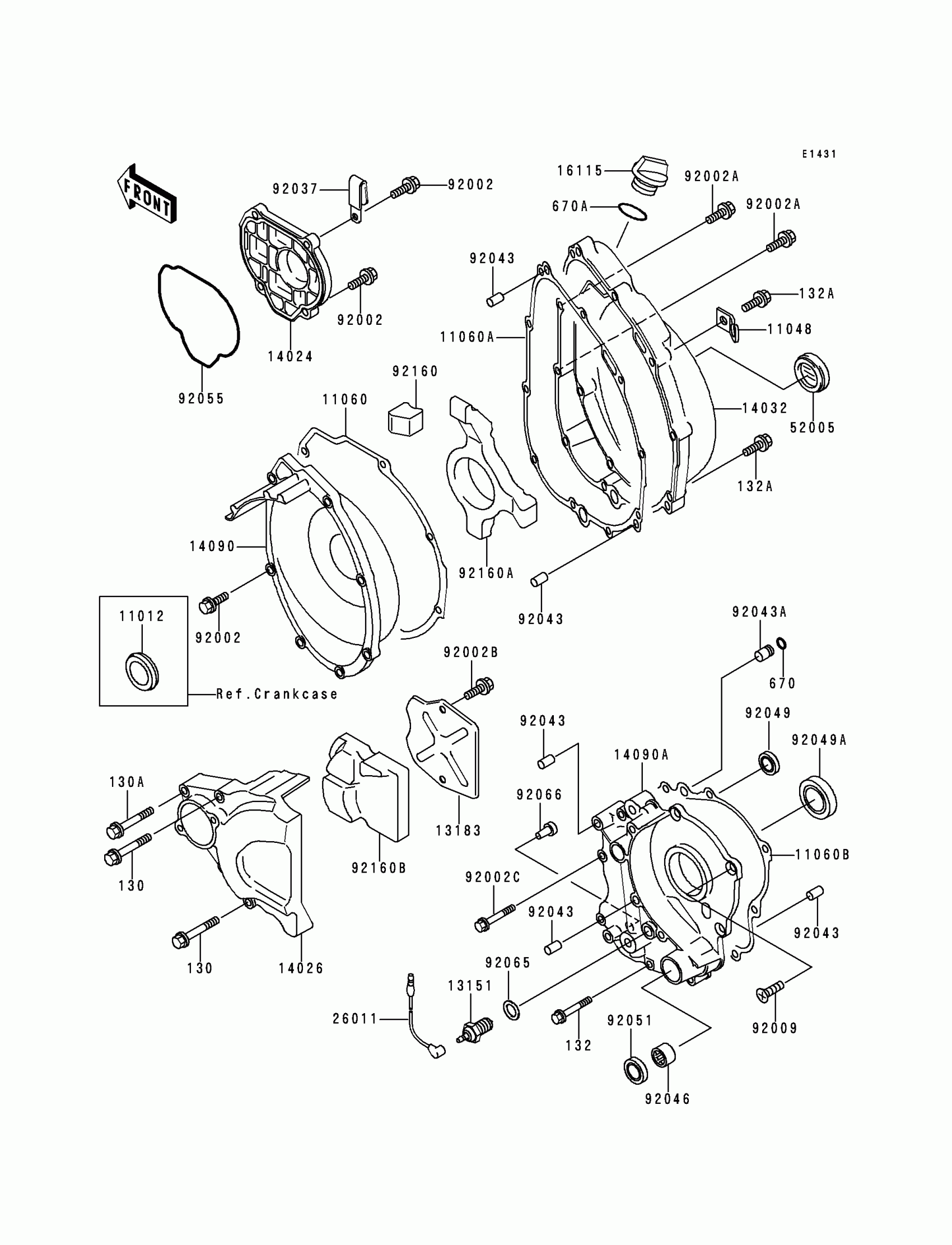

Kawasaki Ninja® ZX™-9R Engine Cover(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X35

130J0635

Unavailable

130A

BOLT-FLANGED,6X45,BLACK

130J0645

$4.35

132

BOLT-FLANGED-SMALL,6X30

132E0630

$6.22

132A

BOLT-FLANGED-SMALL,6X30

132J0630

$3.84

670

O RING,5MM

670B1505

$3.26

670A

O RING,20MM

670B2020

$1.22

11012

CAP,LH,RCA378

11012-1540

Unavailable

11048

BRACKET,THROTTLE ADJUST SCREW

11048-1798

Unavailable

11060

GASKET,BREATHER COVER

11060-1356

$23.30

11060A

GASKET,CLUTCH COVER

11060-1623

$28.78

11060B

GASKET,TRANSMISSION COVER

11060-1660

$22.33

13151

SWITCH-COMP,NEUTRAL

13151-1080

$10.38

13183

PLATE,CHAIN COVER

13183-1717

Unavailable

14024

COVER,PULSING

14024-1998

Unavailable

14026

COVER-CHAIN

14026-1207

Unavailable

14032

COVER-CLUTCH

14032-1367

Unavailable

14090

COVER,BREATHER

14090-1052

Unavailable

14090A

COVER,TRANSMISSION

14090-1673

$223.59

16115

CAP-OIL FILLER

16115-1053

$12.20

26011

WIRE-LEAD

26011-1510

Unavailable

52005

GAUGE,OIL LEVEL

52005-1057

$25.24

92002

BOLT,6X20

92002-1343

$6.56

92002A

BOLT,6X25

92002-1344

Unavailable

92002B

BOLT,6X10

92002-1449

$4.11

92002C

BOLT,6X30

92002-1622

$7.24

92009

SCREW,6X16

92009-1360

$4.31

92037

CLAMP

92037-1877

$6.56

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN

92043-1456

$9.33

92046

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92049

SEAL-OIL,SD-8187

92049-1017

$9.89

92049A

SEAL-OIL,TC32488

92049-1361

$6.82

92051

SEAL-OIL,TB13225.5

92051-005

$7.74

92055

RING-O,PULSING COVER

92055-1494

$15.94

92065

GASKET,10.5X16X1

92065-058

$3.96

92066

PLUG

92066-1412

$4.96

92160

DAMPER,SOUND ARRESTER

92160-1282

$15.30

92160A

DAMPER,SOUND ARRESTER

92160-1465

Unavailable

92160B

DAMPER,CHAIN COVER

92160-1484

$23.80
