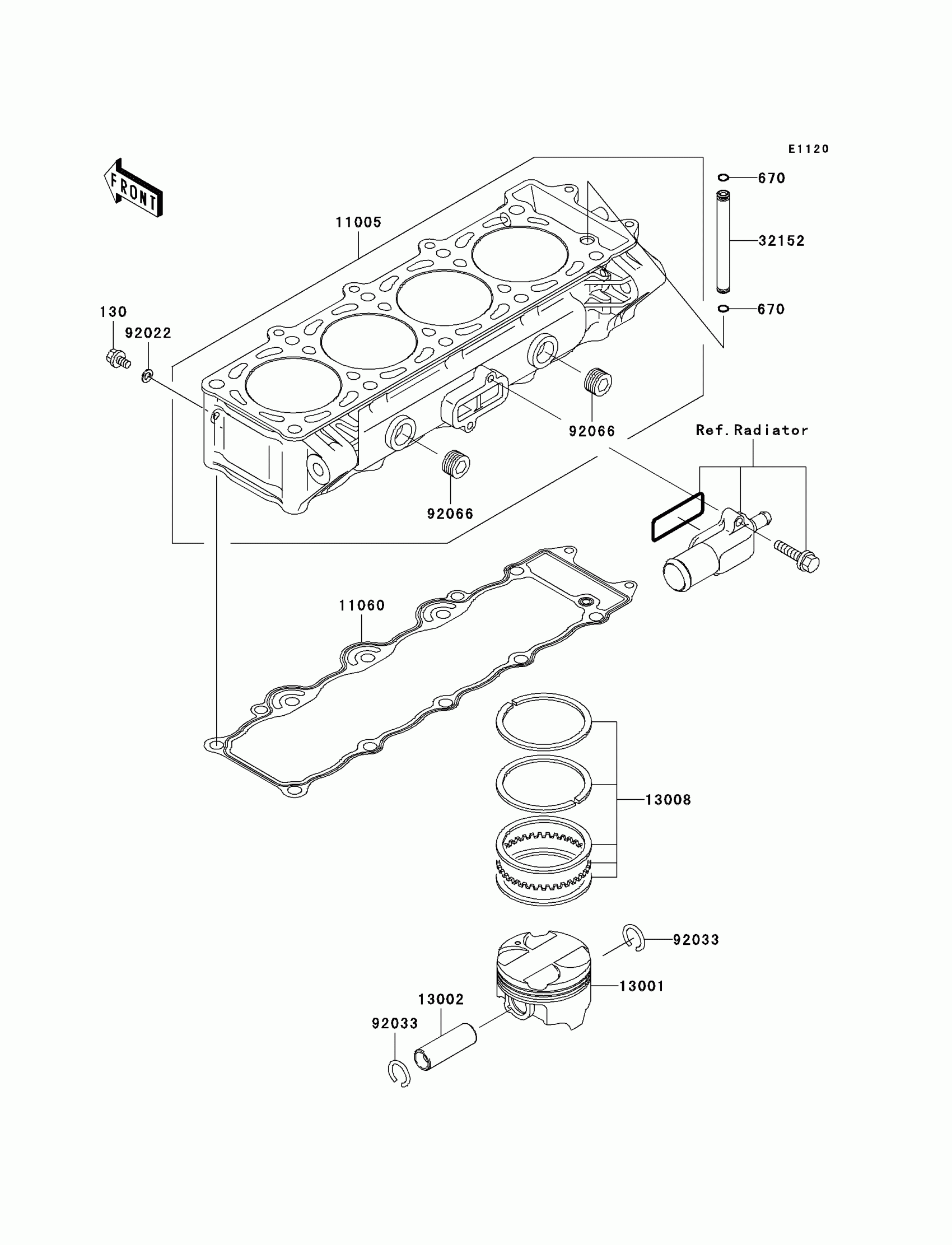

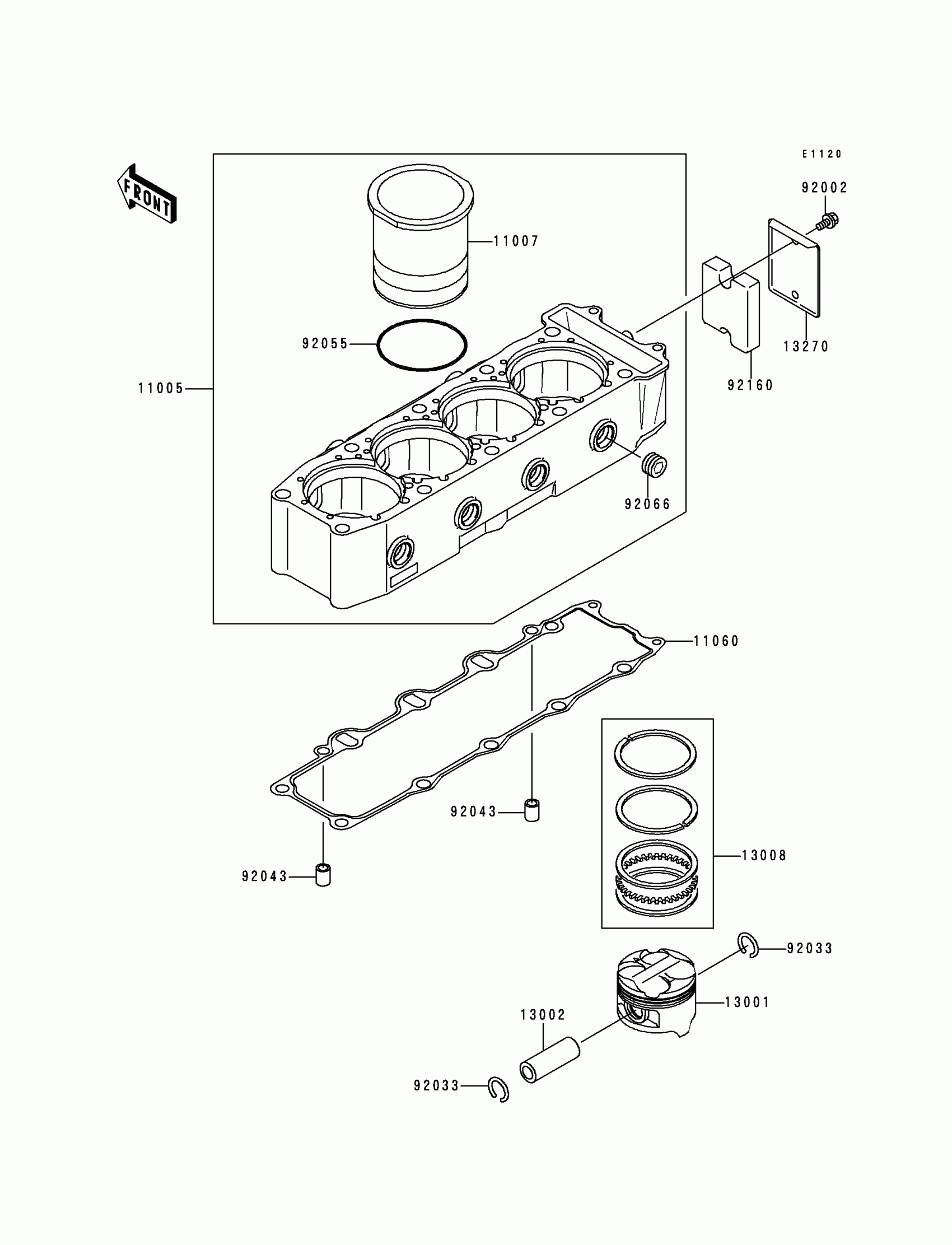

Kawasaki Ninja® ZX™-9R Cylinder/Piston(s) Diagram

Description

Price

11005

CYLINDER-ENGINE

11005-1778

Unavailable

11007

LINER-CYLINDER

11007-1136

$143.61

11060

GASKET,CYLINDER BASE

11060-1093

$59.18

13001

PISTON-ENGINE,STD

13001-1437

$123.91

13002

PIN-PISTON

13002-1086

$26.79

13008

RING-SET-PISTON,STD

13008-1158

$82.36

13270

PLATE

13270-1157

Unavailable

92002

BOLT,6X8

92002-1604

$5.24

92033

RING-SNAP,20.5X1.2

92033-1099

$0.62

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92055

RING-O,78.9X2.0

92055-1526

$5.96

92066

PLUG,PT1/2X12.5

92066-1253

$8.98

92160

DAMPER

92160-1488

Unavailable
