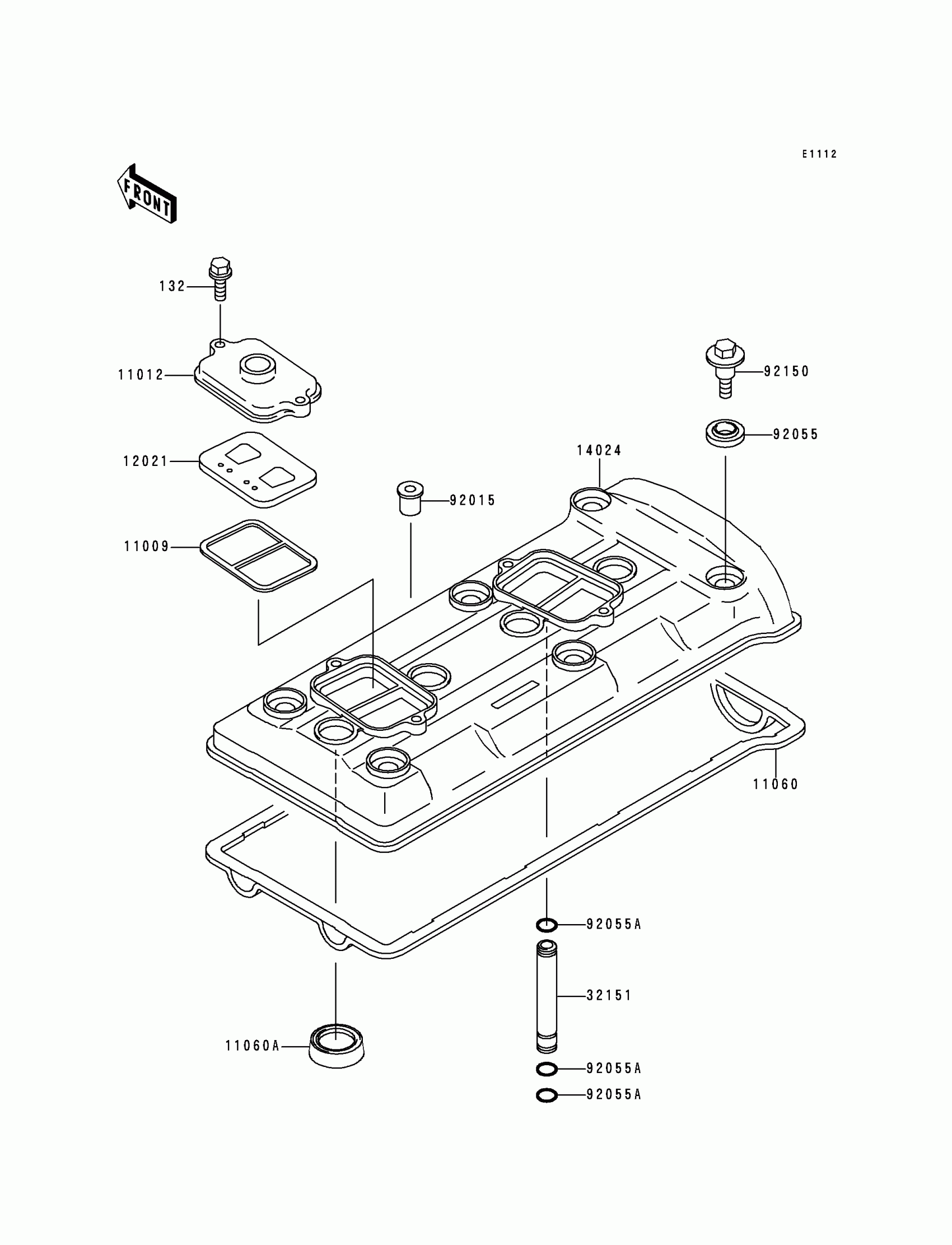

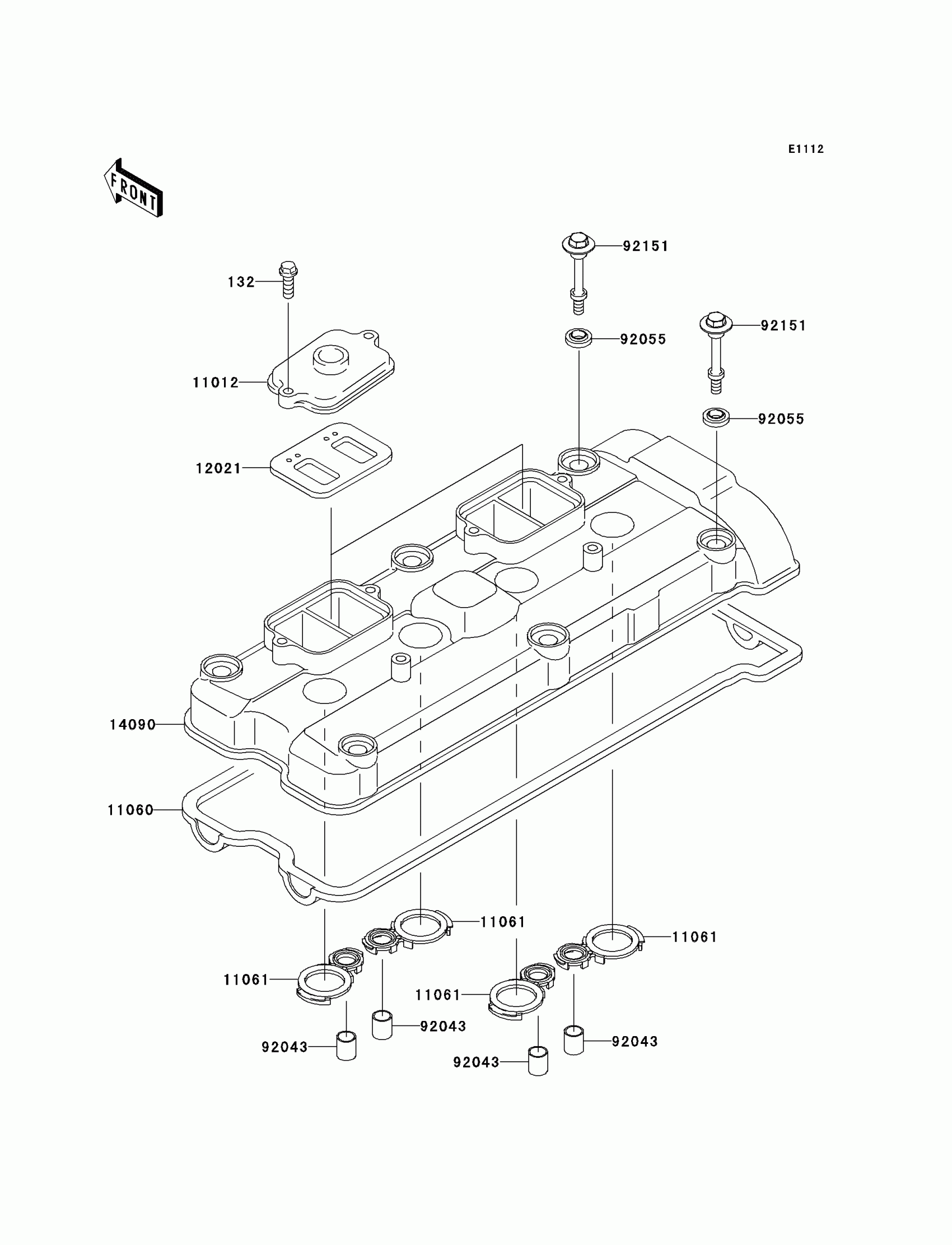

Kawasaki Ninja® ZX™-9R Cylinder Head Cover Diagram

Description

Price

132

BOLT-FLANGED-SMALL

132G0620

$2.33

11009

GASKET,REED VALVE

11009-1857

$9.83

11012

CAP,REED VALVE

11012-1758

$30.56

11060

GASKET,HEAD COVER

11060-1076

$70.16

11060A

GASKET,PLUG

11060-1077

$9.09

12021

VALVE-ASSY-REED

12021-1053

$74.72

14024

COVER,HEAD

14024-1996

Unavailable

32151

PIPE

32151-1608

$13.74

92015

NUT

92015-1700

$8.58

92055

RING-O,HEAD COVER BOLT

92055-1352

$10.00

92055A

RING-O,9X1.5

92055-1509

$4.67

92150

BOLT,FLANGED,6X23.5

92150-1447

$4.60
