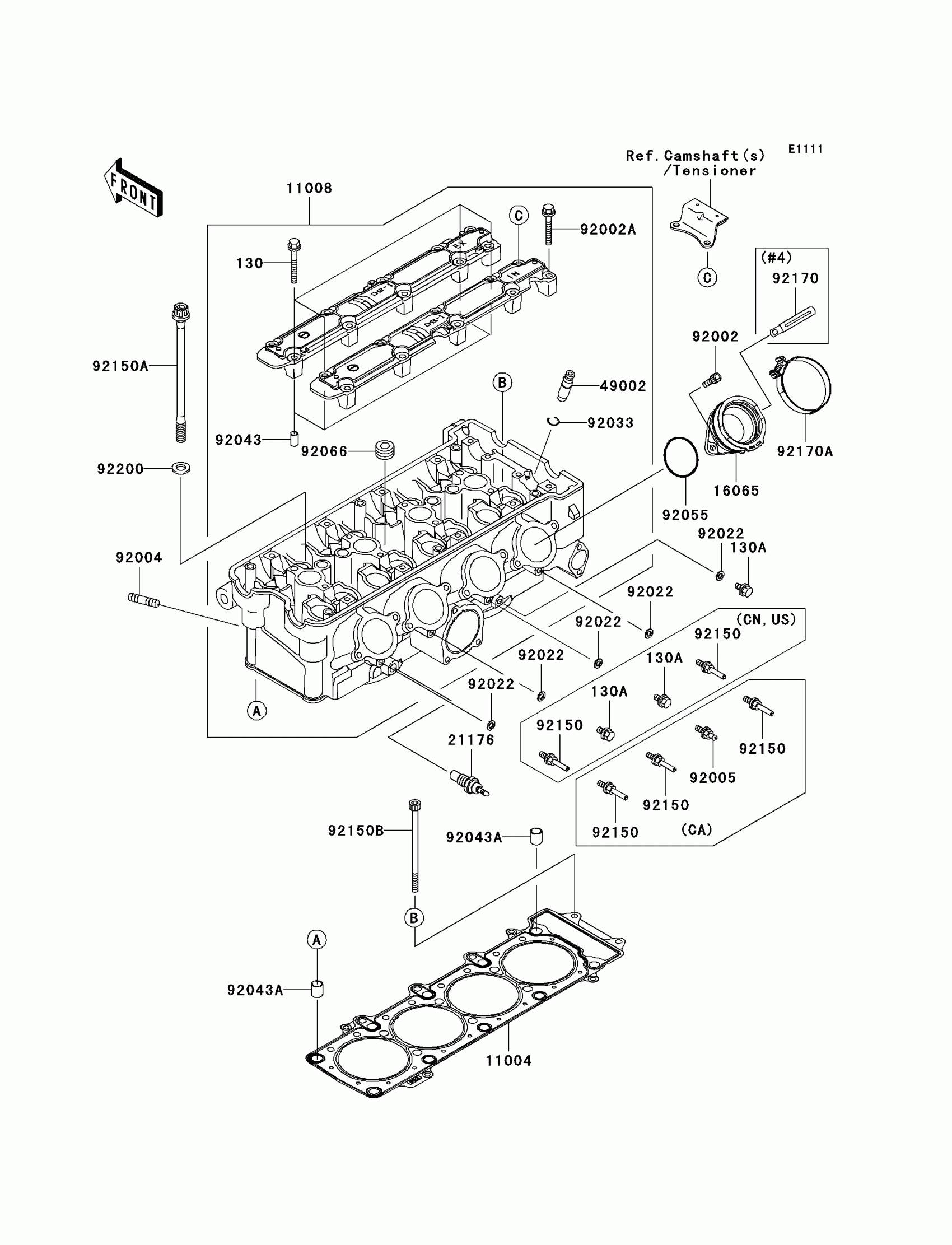

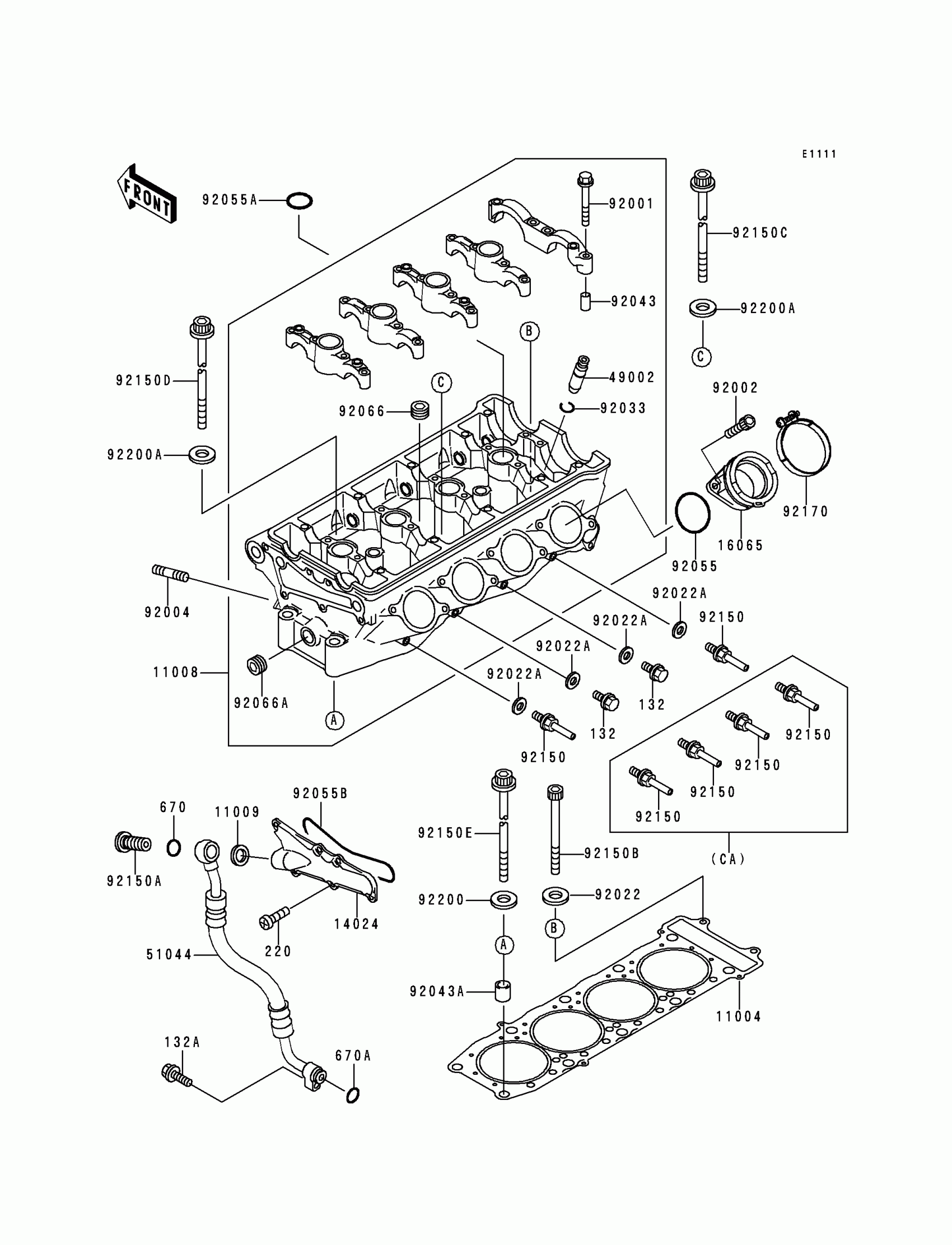

Kawasaki Ninja® ZX™-9R Cylinder Head Diagram

Description

Price

130

BOLT-FLANGED,6X45

130P0645

Unavailable

11004

GASKET-HEAD

11004-1345

$137.38

11008

HEAD-COMP-CYLINDER

11008-1420

$2,620.11

16065

HOLDER-CARBURETOR

16065-1381

$39.32

21176

SENSOR

21176-1075

$59.68

49002

GUIDE-VALVE

49002-1116

Unavailable

92002

BOLT,6X16

92002-1143

$3.92

92002A

BOLT,6X40

92002-1756

$4.69

92004

STUD,8X22

92004-1249

$3.87

92022

WASHER,6.2X11X1

92022-304

$3.65

92033

RING-SNAP

92033-1247

$3.91

92043

PIN,6.2X8X14

92043-1263

$0.43

92043A

PIN,10.1X12X14

92043-4009

$6.22

92055

RING-O,43.7X1.9

92055-1401

$13.75

92066

PLUG,PT1/2X12.5

92066-0002

$8.98

92150A

BOLT,10X165

92150-1368

$18.89

92150B

BOLT,SOCKET,6X110

92150-1755

$11.10

92170

CLAMP

92170-1514

$4.31

92170A

CLAMP

92170-1882

$9.97

92200

WASHER,10.5X19X2.3

92200-1042

$3.92

130A

BOLT-FLANGED,6X10

130Y0610

$3.41

130A

BOLT-FLANGED,6X10

130Y0610

$3.41

92005

FITTING

92005-1221

$16.78

92150

BOLT

92150-1161

$9.57

92150

BOLT

92150-1161

$9.57
