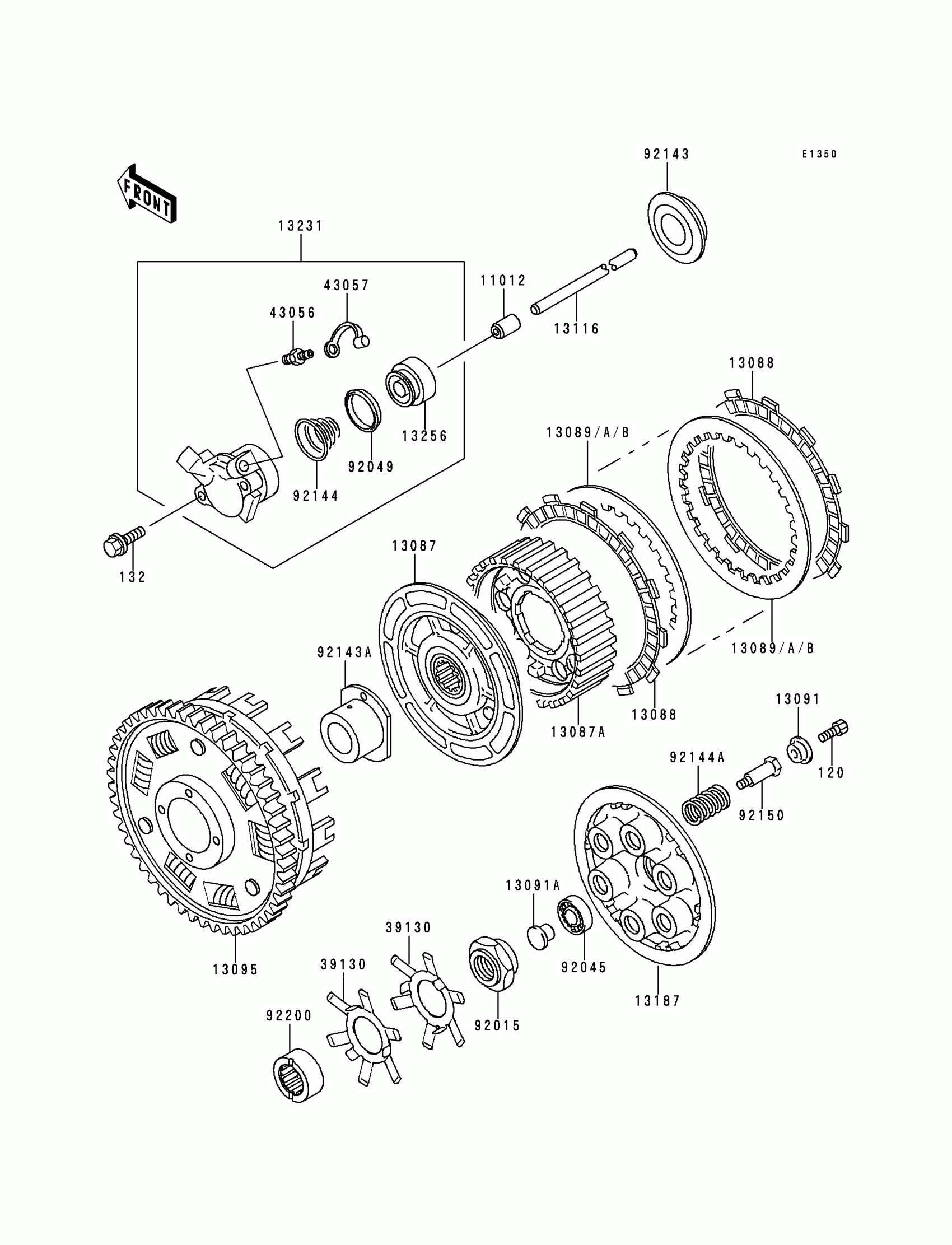

Kawasaki Ninja® ZX™-9R Clutch Diagram

#

Description
Price

120

BOLT-SOCKET,6X16

120Q0616

Unavailable

132

BOLT-FLANGED-SMALL,6X25

132J0625

Unavailable

11012

CAP,PUSHROD

11012-1569

Unavailable

13087

HUB-CLUTCH

13087-1157

$234.08

13087A

HUB-CLUTCH

13087-1160

Unavailable

13088

PLATE-FRICTION

13088-1087

$16.16

13089

PLATE-CLUTCH,T=2.0

13089-026

Unavailable

13089A

PLATE-CLUTCH,T=2.3

13089-1004

Unavailable

13089B

PLATE-CLUTCH,T=2.6

13089-1067

Unavailable

13091

HOLDER,CLUTCH SPRING

13091-1041

$9.30

13091A

HOLDER,CLUTCH PUSH ROD

13091-1085

Unavailable

13095

HOUSING-COMP-CLUTCH

13095-1284

Unavailable

13116

ROD-PUSH

13116-1141

$40.91

13187

PLATE-CLUTCH OPERATING

13187-1067

$91.94

13231

RELEASE-ASSY-CLUTCH

13231-1065

$155.47

13256

PISTON

13256-1052

$52.02

39130

SPRING-LEAF

39130-1071

$8.41

43056

BREATHER

43056-1052

$10.86

43057

CAP-BREATHER

43057-1001

$3.73

92015

NUT

92015-1929

Unavailable

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92049

SEAL-OIL,PISTON

92049-1165

$14.81

92143

COLLAR

92143-1468

Unavailable

92143A

COLLAR

92143-1638

$81.26

92144

SPRING,CLUTCH RELEASE

92144-1084

$6.48

92144A

SPRING,CLUTCH

92144-1779

$7.90

92150

BOLT,CLUTCH

92150-1477

$6.18

92200

WASHER

92200-1205

$32.91
