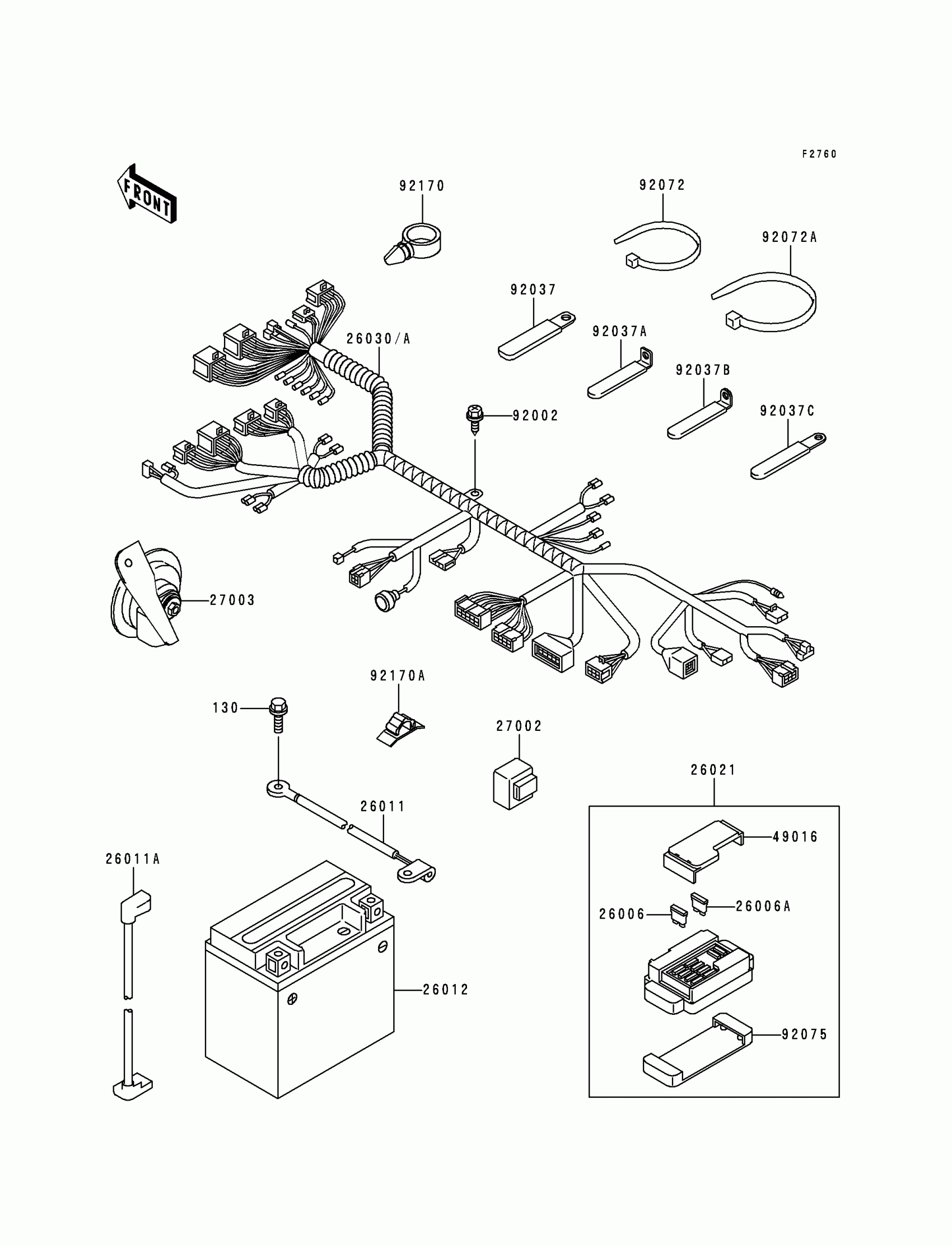

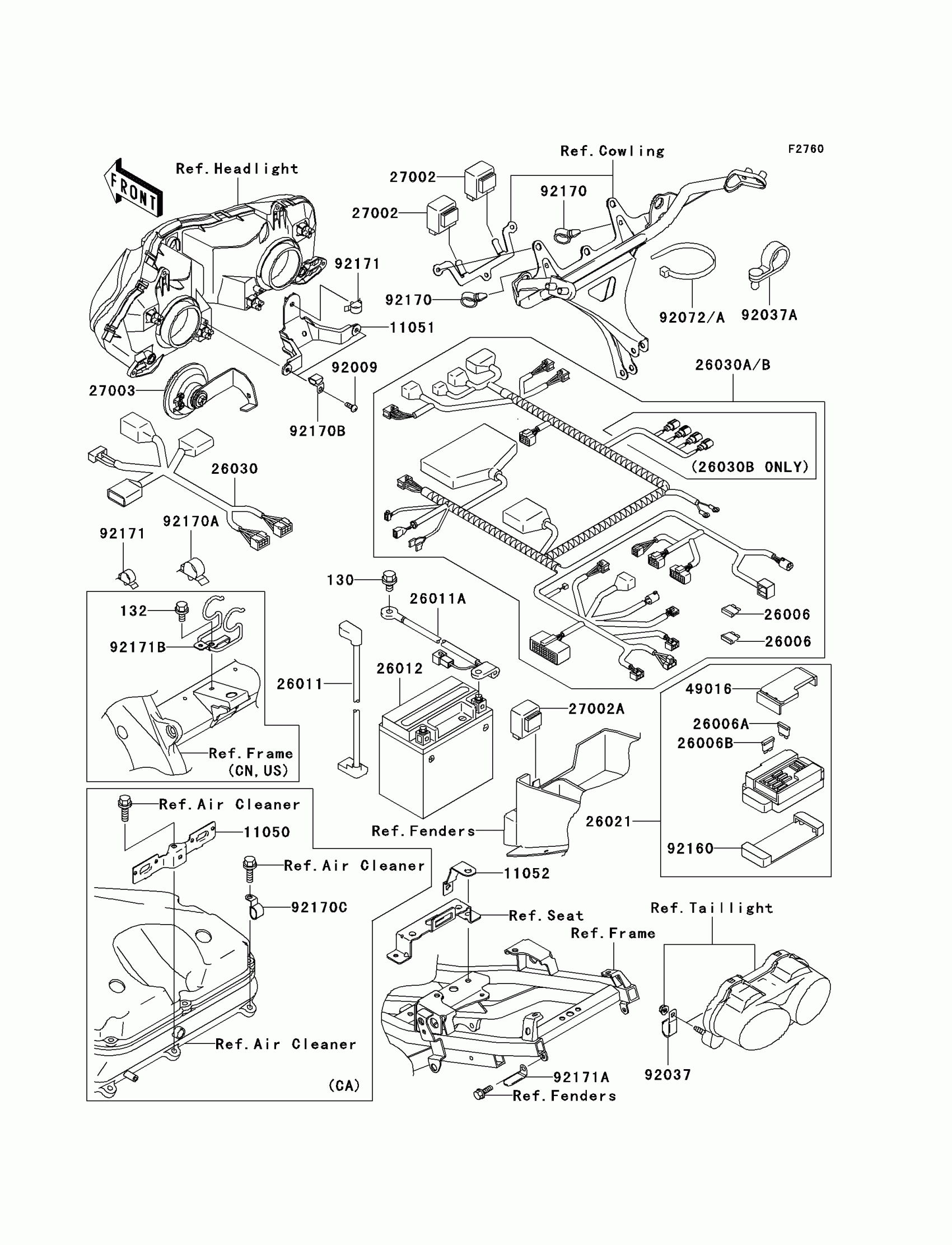

Kawasaki Ninja® ZX™-9R Chassis Electrical Equipment Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130V0610

Unavailable

11051

BRACKET,HEAD LAMP

11051-1827

$15.97

11052

BRACKET,HEAD LAMP FUSE

11052-1647

$7.69

26006

FUSE,BLADE,20A,YELLOW

26006-1051

$4.96

26006A

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006B

FUSE,10A-R

26006-1068

Unavailable

26011

WIRE-LEAD,BATTERY(+)

26011-1736

$39.02

26011A

WIRE-LEAD,BATTERY(-)

26011-1759

$26.97

26012

BATTERY,YTX9-BS,12V 8AH

26012-1326

$142.54

26021

JUNCTION BOX

26021-1096

$168.61

26030

HARNESS,FR

26030-1779

$104.00

27002

RELAY-ASSY

27002-1086

$36.91

27002A

RELAY-ASSY,TURN SIGNAL

27002-1101

$72.36

27003

HORN

27003-1407

$80.83

49016

COVER-SEAL,FUSE

49016-1177

$9.54

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92072

BAND,L=365

92072-1197

$7.84

92072A

BAND,L=140

92072-1293

$7.11

92160

DAMPER,JUNCTION BOX

92160-1650

$13.44

92170

CLAMP

92170-1067

$7.45

92170A

CLAMP,HARNESS

92170-1494

$6.61

92170B

CLAMP

92170-1577

$3.83

92171

CLAMP,HARNESS

92171-1269

$4.62

92171A

CLAMP

92171-1420

$5.05

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

11050

BRACKET,HARNESS COUPLER

11050-1791

$13.94

26030A

HARNESS,MAIN

26030-1925

$558.55

26030B

HARNESS,MAIN

26030-1926

$500.35

92170C

CLAMP

92170-1833

$6.42

92171B

CLAMP,HARNESS

92171-1492

$24.39
