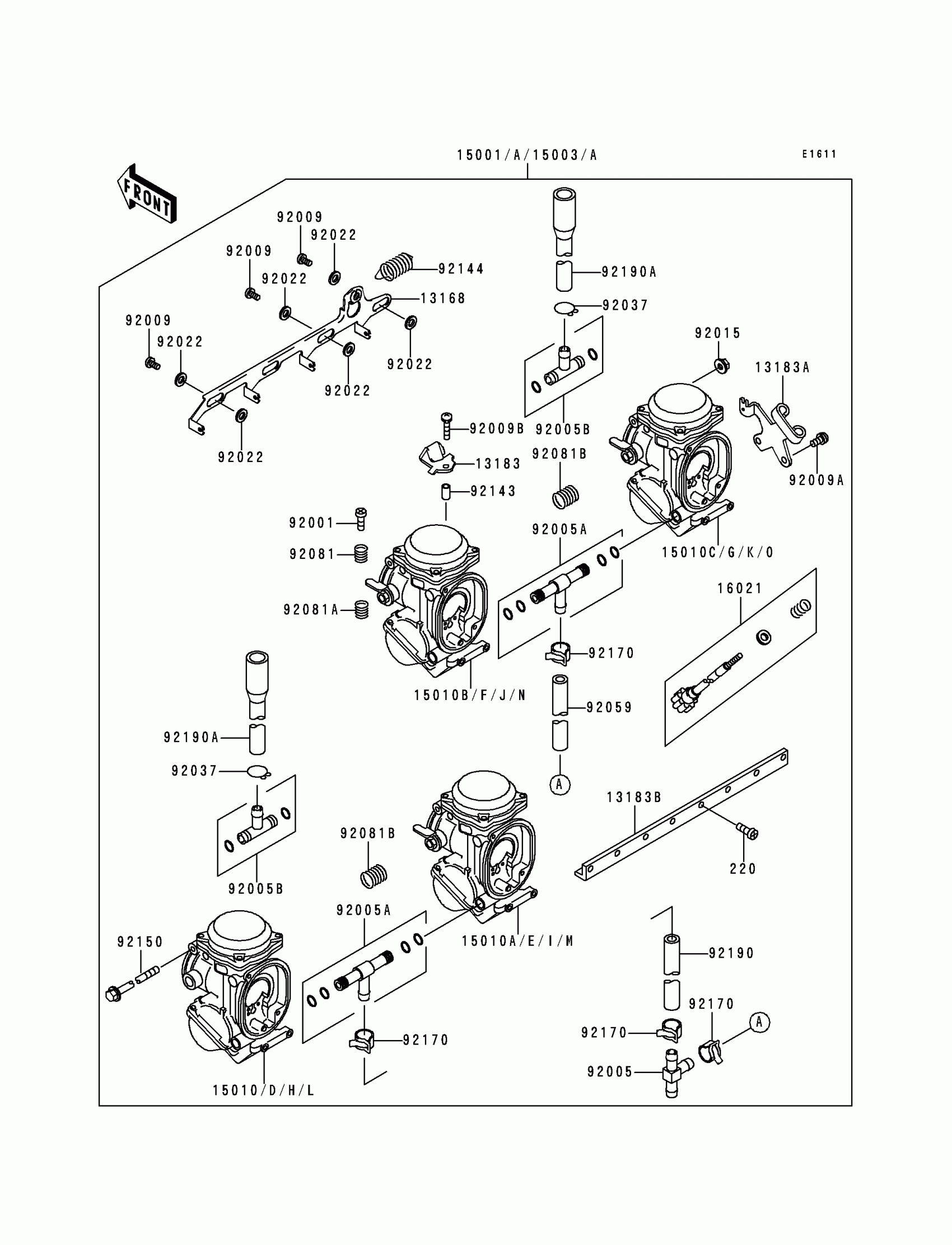

Kawasaki Ninja® ZX™-9R Carburetor Diagram

#

Description
Price

13168

LEVER,STARTER

13168-1593

$129.17

13183

PLATE,STARTER CABLE

13183-1592

$39.20

16021

SCREW-THROTTLE STOP

16021-1239

$119.50

21176

SENSOR,THROTTLE

21176-1113

$221.35

92001

BOLT,THROTTLE ADJUST

92001-1998

$16.94

92005

FITTING,T-TYPE

92005-1272

$27.60

92005A

FITTING

92005-1338

$24.25

92005B

FITTING

92005-1347

$28.99

92009

SCREW

92009-1262

$6.61

92009A

SCREW,4X18

92009-1632

$6.15

92009B

SCREW,THROTTLE SENSOR

92009-1981

$2.41

92015

NUT,FLANGED,5MM

92015-1259

$3.92

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92037

CLAMP,TUBE

92037-1531

$5.52

92055

RING-O

92055-1671

$3.73

92059

TUBE,7X11X45

92059-1738

$27.08

92081

SPRING

92081-1620

$4.96

220

SCREW-PAN-CROS,5X14

220D0514

$4.04

92081A

SPRING,THROTTLE ADJUST CNT

92081-1622

$10.67

92143

COLLAR,4X5.2X9.6

92143-1265

$7.35

92144

SPRING

92144-1451

$9.58

92144A

SPRING,STARTER LEVER

92144-1518

$24.34

92150

BOLT

92150-1416

$33.67

92170

CLAMP,TUBE

92170-1051

$8.98

92171

CLAMP,THROTTLE SENSOR

92171-1533

$7.62

92190

TUBE,STARTER SPRING

92190-1157

$9.50

92191

TUBE,7.3X12.5X55

92191-1263

$7.64

92191A

TUBE,7.3X12.5X220

92191-1264

$19.45

15003

CARBURETOR-ASSY

15003-1680

$2,223.51

15003A

CARBURETOR-ASSY

15003-1685

$2,223.51

15011

CARBURETOR,LH,OUTSIDE

15011-1925

$795.80

15011A

CARBURETOR,LH,INSIDE

15011-1926

$795.80

15011B

CARBURETOR,RH,INSIDE

15011-1927

$795.80

15011C

CARBURETOR,RH,OUTSIDE

15011-1928

Unavailable

15011D

CARBURETOR,LH,OUTSIDE

15011-1929

$704.28

15011E

CARBURETOR,LH,INSIDE

15011-1930

Unavailable

15011F

CARBURETOR,RH,INSIDE

15011-1931

$704.28

15011G

CARBURETOR,RH,OUTSIDE

15011-1932

$704.28

21188

SOLENOID,#1,FUEL CUT VALVE

21188-1006

$169.05

21188A

SOLENOID,#2,FUEL CUT VALVE

21188-1007

$149.58
