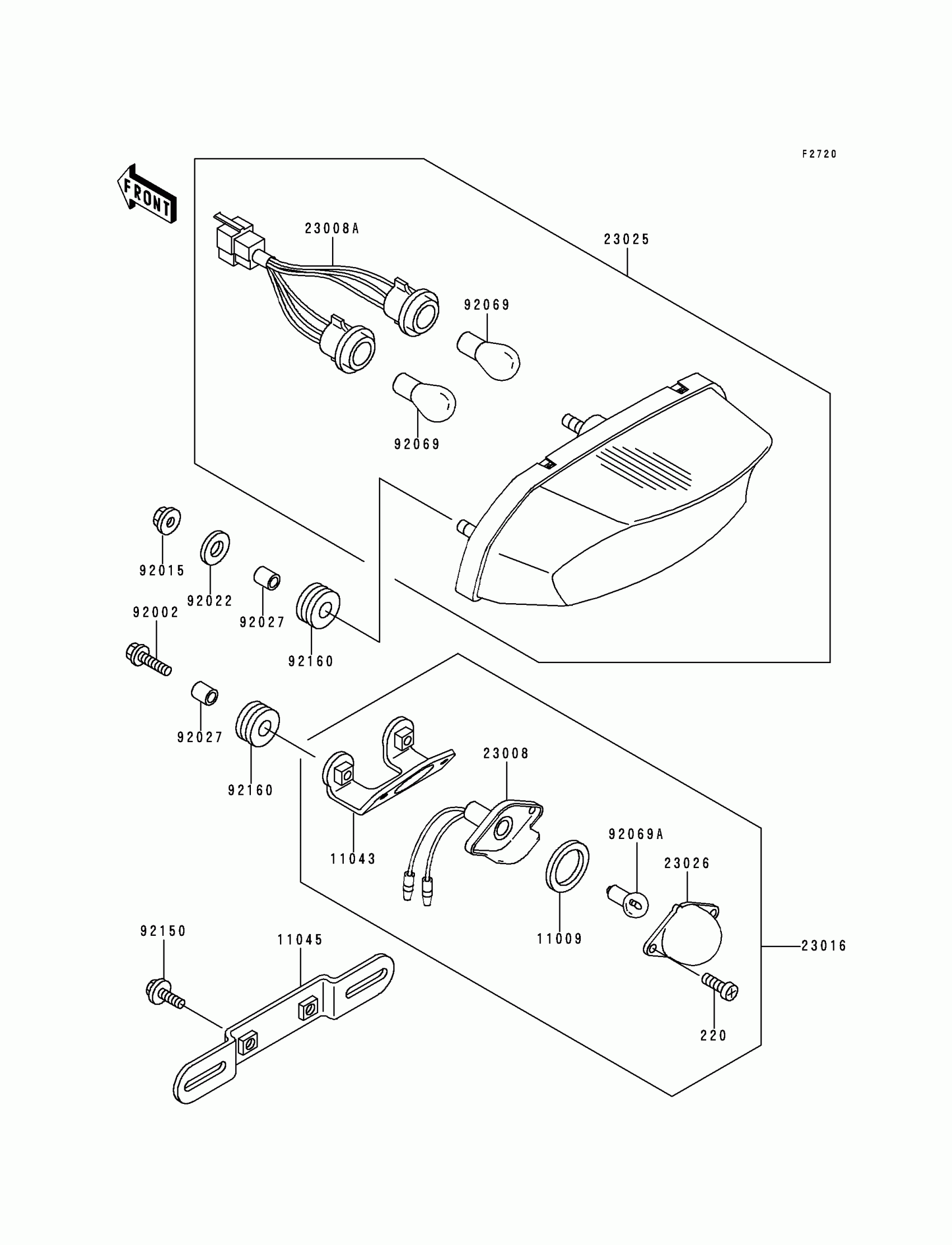

Kawasaki Ninja® ZX™-7RR Taillight(s) Diagram

Description

Price

220

SCREW PAN HEAD 4X10

220B0410

$2.30

11009

GASKET,LICENSE PLATE LAMP

11009-1372

$4.65

11043

BRACKET,LICENSE PLATE LAMP

11043-1497

Unavailable

11045

BRACKET,LICENSE

11045-1387

$16.69

23008

SOCKET-ASSY,LICENSE PLATE LAMP

23008-1221

Unavailable

23008A

SOCKET-ASSY,TAIL LAMP

23008-1413

$40.69

23016

LAMP-ASSY,LICENSE PLATE

23016-1053

$72.93

23025

LAMP-TAIL

23025-1246

$319.38

23026

LENS,LAMP

23026-1054

$9.28

92002

BOLT,6X25

92002-1135

$4.31

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,6.5X20X1.6

92022-1557

$1.40

92027

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 27/8W

92069-059

$8.12

92069A

BULB,12V 8W

92069-1012

$5.18

92150

BOLT,6X16

92150-1909

$4.49

92160

DAMPER

92160-1162

$5.00
