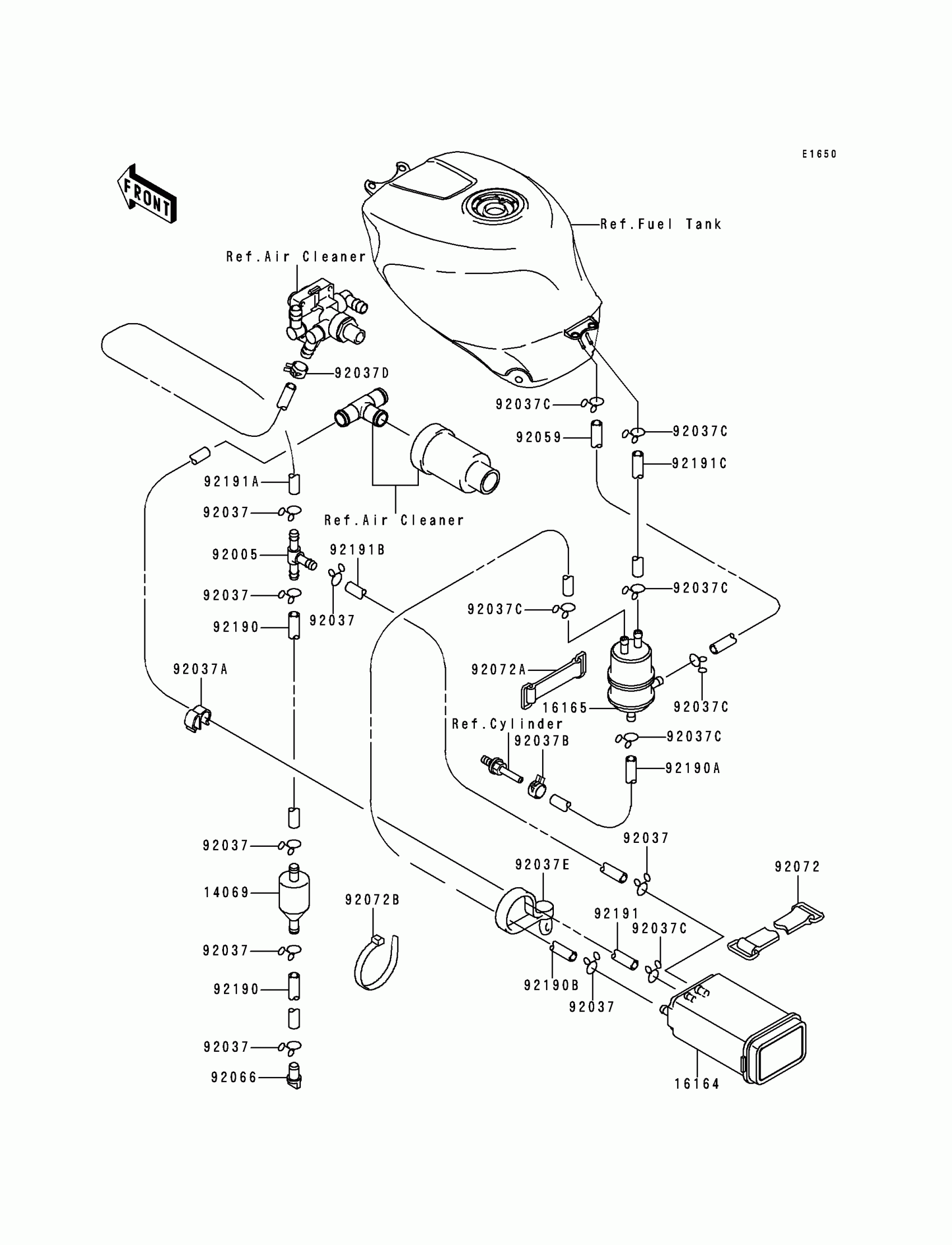

Kawasaki Ninja® ZX™-7RR Fuel Evaporative System Diagram

Description

Price

14069

BREATHER

14069-1051

$7.76

16164

CANISTER

16164-1064

$148.51

16165

SEPARATOR

16165-1001

$79.83

92005

FITTING,T-TYPE

92005-1119

$23.15

92037

CLAMP-HOSE

92037-1104

$1.09

92037A

CLAMP

92037-1458

$5.66

92037B

CLAMP,TUBE

92037-1461

$2.93

92037C

CLAMP,TUBE

92037-147

$5.61

92037D

CLAMP

92037-1861

$8.95

92037E

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92059

TUBE,5X10X230,RED

92059-1497

Unavailable

92066

PLUG,DRAIN

92066-1211

$6.48

92072

BAND,L=142.1

92072-006

$9.70

92072A

BAND,L=50

92072-066

$12.21

92072B

BAND,L=202

92072-1195

$1.16

92190

TUBE,7X12X160

92190-1201

Unavailable

92190A

TUBE,5X10X438,WHITE

92190-1216

$16.92

92190B

TUBE,5X10X668,BLUE

92190-1228

$17.46

92191

TUBE,GREEN

92191-1036

$25.93

92191A

TUBE,YELLOW

92191-1037

$20.22

92191B

TUBE,YELLOW

92191-1083

$34.26

92191C

TUBE,5X10X120,BLUE

92191-1099

$39.88
