1997 Kawasaki Ninja® ZX™-7RR Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

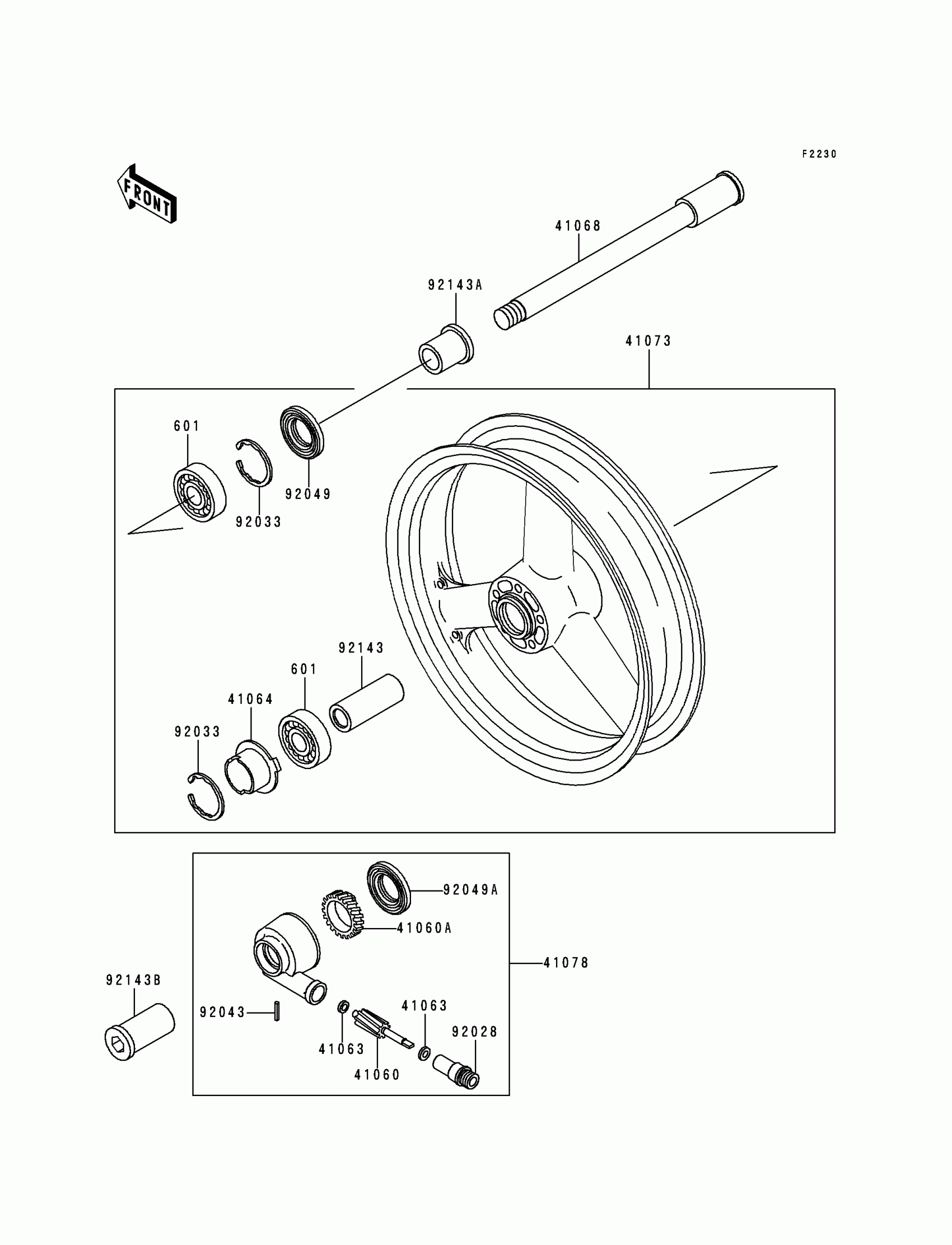

1997 Kawasaki Ninja® ZX™-7RR Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

601

BEARING-BALL,#6005UU

601B6005UU

1
Out of stock

41060

GEAR-METER SCREW,9T

41060-1140

1

$20.37

In stock

41060A

1

$28.67

In stock

41063

WASHER,5.1X9X0.4

41063-001

1

$4.17

In stock

41064

RECEIVER-SPEEDOMETER

41064-1055

1
Out of stock

41068

AXLE,FR

41068-1327

1
Out of stock

41073

WHEEL-ASSY,FR,J.S.VIOLET

41073-1496-F8

1
Out of stock

41078

CASE-ASSY-METER GEAR

41078-1082

1
Out of stock

92028

BUSHING,METER GEAR CASE

92028-1634

1
Out of stock

92033

RING-SNAP,47MM

92033-1042

1
Out of stock

92043

PIN,SPRING,3X18

92043-1454

1
Out of stock

92049

SEAL-OIL,BJN 32 47 5

92049-1377

1
Out of stock

92049A

SEAL-OIL,BJN-C2 35 52 5

92049-1378

1
Out of stock

92143

COLLAR,FR HUB,L=94

92143-1476

1
Out of stock

92143A

COLLAR,FR AXLE,RH,L=17.5

92143-1477

1
Out of stock

92143B

COLLAR,FR AXLE,LH,L=44.5

92143-1478

1
Out of stock
