Description

Price

317

NUT-HEX-SMALL,8MM

317G0800

Unavailable

481

CIRCLIP-TYPE-C,47MM

481J4700

$3.22

601

BEARING-BALL,#6005U

601B6005U

$25.56

33001

ARM-COMP-SWING,SILVER

33001-1492-KF

Unavailable

33032

SHAFT-SWING ARM

33032-1173

$157.60

33040

ADJUSTER-CHAIN,RH

33040-1114

$14.54

35019

FLAP

35019-1333

$11.83

42036

SLEEVE,SWING ARM,L=224.5

42036-1312

$80.98

55020

GUARD,CHAIN

55020-1535

Unavailable

92009

SCREW,6X18

92009-1663

Unavailable

92015

NUT,POP,6MM,L=16.5

92015-1792

$3.57

92015A

NUT,FLANGED,25MM

92015-1845

$23.68

92015B

NUT,FRAME PIVOT,32MM

92015-1930

$37.14

92022

WASHER,6.5X16X1

92022-1143

$2.99

92046

BEARING-NEEDLE,BM3520

92046-1205

$30.93

92049

SEAL-OIL,MHA 35X47X5

92049-1381

$13.00

92049A

SEAL-OIL,KC 38 45 6

92049-1419

$16.27

92143

COLLAR,SWING ARM,L=12.5

92143-1481

$31.44

92143A

COLLAR,SWING ARM,LH,L=15.5

92143-1799

Unavailable

92150

BOLT,8X55

92150-1350

$1.57

92150A

BOLT,FLANGED,6X14

92150-1689

$3.01

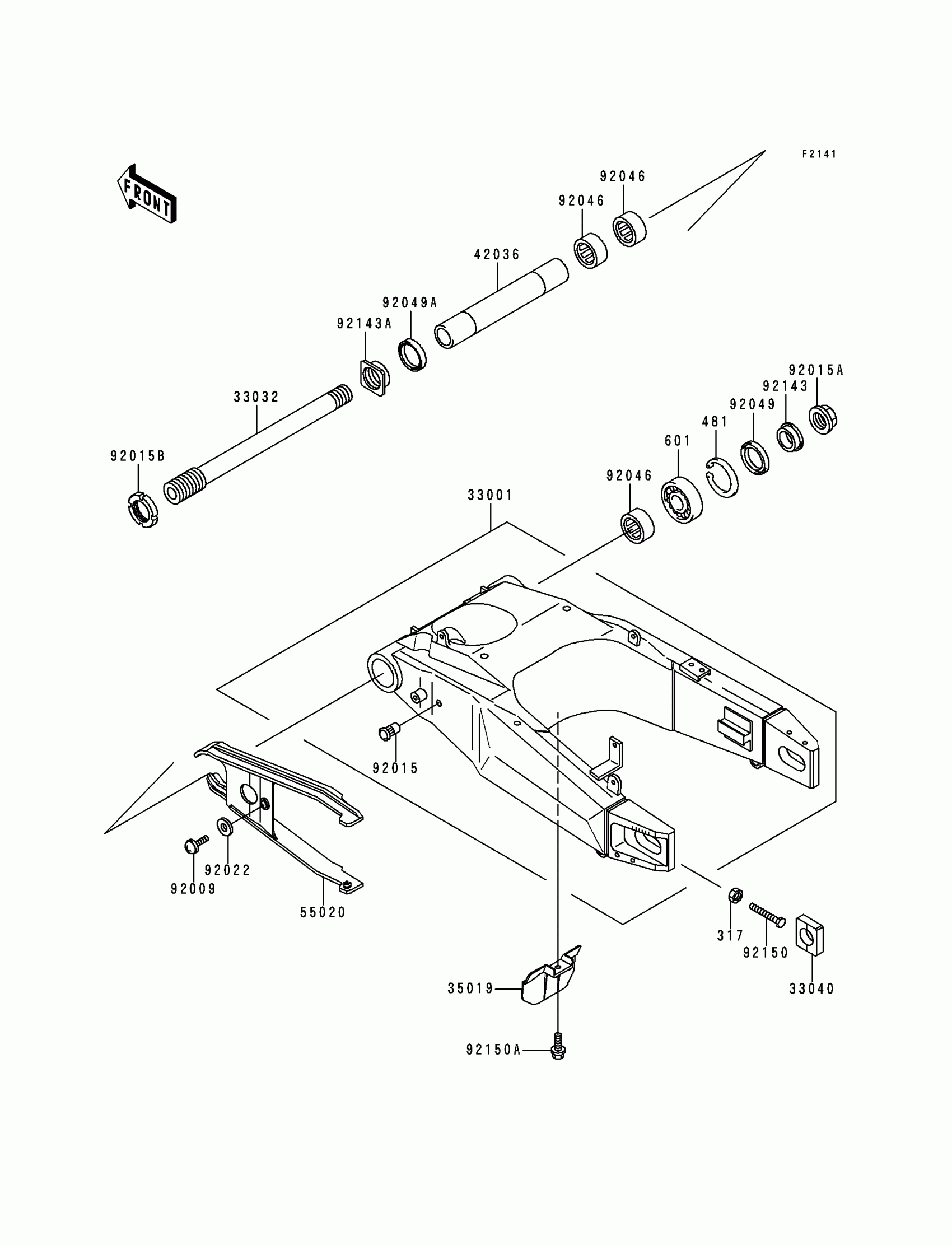

Kawasaki Ninja® ZX™-7RR Swingarm Diagram

NUT-HEX-SMALL,8MM

CIRCLIP-TYPE-C,47MM

BEARING-BALL,#6005U

ARM-COMP-SWING,SILVER

SHAFT-SWING ARM

ADJUSTER-CHAIN,RH

FLAP

SLEEVE,SWING ARM,L=224.5

GUARD,CHAIN

SCREW,6X18

NUT,POP,6MM,L=16.5

NUT,FLANGED,25MM

NUT,FRAME PIVOT,32MM

WASHER,6.5X16X1

BEARING-NEEDLE,BM3520

SEAL-OIL,MHA 35X47X5

SEAL-OIL,KC 38 45 6

COLLAR,SWING ARM,L=12.5

COLLAR,SWING ARM,LH,L=15.5

BOLT,8X55

BOLT,FLANGED,6X14
