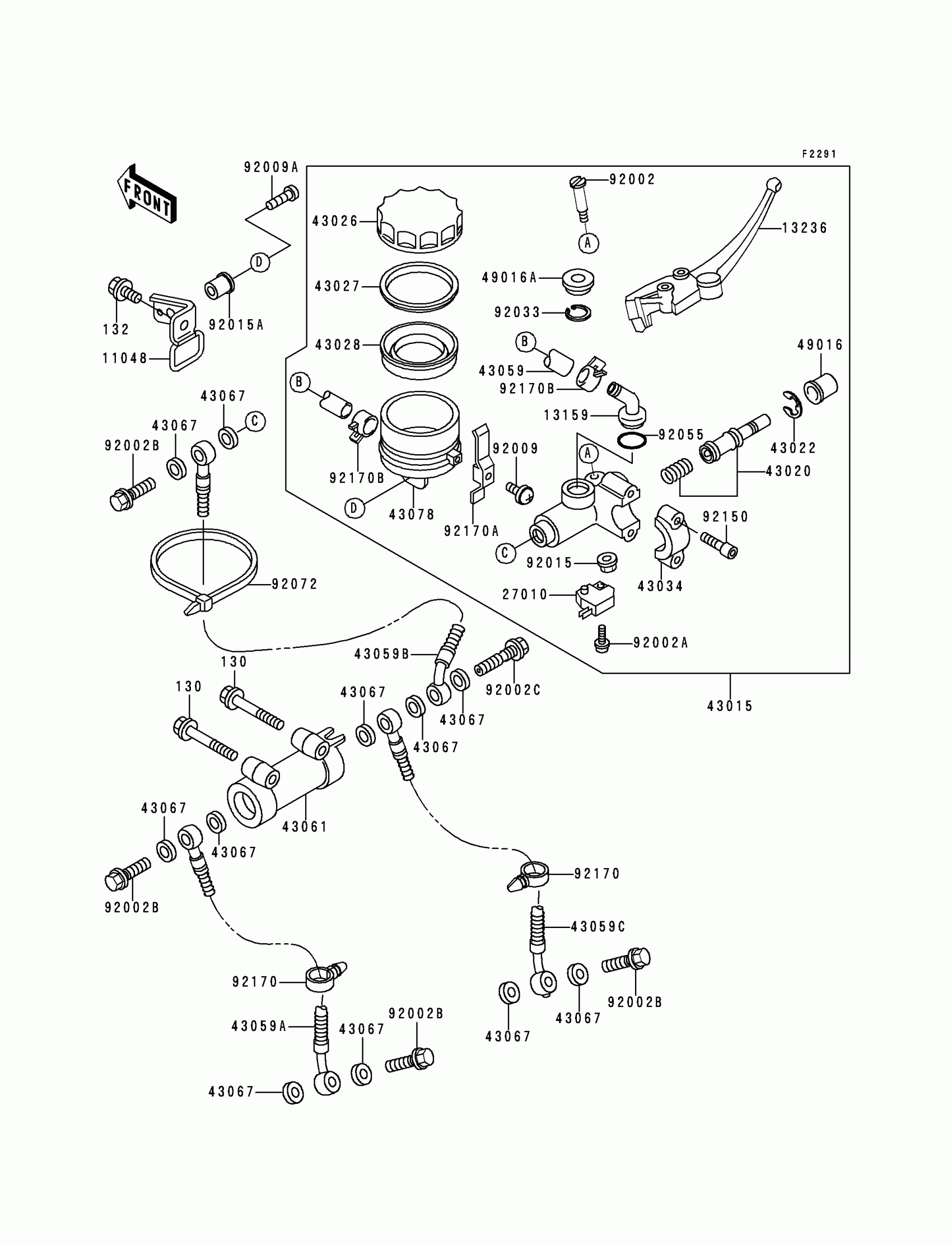

Kawasaki Ninja® ZX™-7RR Front Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED,6X35

130J0635

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

11048

BRACKET,RESERVOIR TANK

11048-1170

$22.79

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,FRONT BRAKE

13236-1185

$63.66

27010

SWITCH,BRAKE

27010-1170

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-1392

Unavailable

43020

PISTON-COMP-BRAKE,FR

43020-1054

$65.22

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43059

HOSE-BRAKE,FR MASTER CYLINDER

43059-1547

$23.30

43059A

HOSE-BRAKE,FR,LWR,LH

43059-1851

$100.41

43059B

HOSE-BRAKE,FR,UPP

43059-1854

$74.47

43059C

HOSE-BRAKE,FR,LWR,RH

43059-1944

Unavailable

43061

JOINT-BRAKE

43061-1002

$72.14

43067

WASHER,10.5X15X1.5

43067-001

$2.15

43078

RESERVOIR

43078-1099

$32.29

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49016A

COVER-SEAL

49016-1147

$6.29

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92002B

BOLT,OIL,L=23

92002-1888

$5.48

92002C

BOLT,OIL,L=37

92002-1909

$11.83

92009

SCREW

92009-1570

$3.09

92009A

SCREW,5X18

92009-1655

$4.31

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92015A

NUT,WELL,5MM

92015-1757

$7.29

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92072

BAND,L=365

92072-1197

$7.84

92150

BOLT

92150-1328

$5.00

92170

CLAMP

92170-1067

$7.45

92170A

CLAMP

92170-1090

$14.43

92170B

CLAMP,HOSE

92170-1091

$5.00
