Description

Price

130

BOLT-FLANGED,8X40

130G0840

$1.92

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$5.18

11012

CAP,FORK

11012-1967

$210.29

16126

VALVE,FORK

16126-1312

$152.25

44008

PIPE-FORK OUTER,A.BRONZE

44008-1040-JS

$973.70

44013

PIPE-FORK INNER,LH,SILVER

44013-1424-KF

$801.51

44013A

PIPE-FORK INNER,RH,SILVER

44013-1425-KF

Unavailable

44023

CYLINDER-COMP-FORK

44023-1101

$481.97

44026

SPRING-FRONT FORK,K=0.95/1.2

44026-1609

$99.71

44026A

SPRING-FRONT FORK,K=0.9

44026-1627

$99.71

44026B

SPRING-FRONT FORK,K=0.95

44026-1628

$99.71

44026C

SPRING-FRONT FORK,K=1.0

44026-1629

$88.17

44037

HOLDER-FORK UNDER

44037-1340

$723.69

44039

HOLDER-FORK UPPER

44039-1264

$316.79

44070

DAMPER-ASSY,FORK,SILVER

44070-1489-KF

$2,707.25

92015

NUT

92015-1795

$5.52

92022

WASHER

92022-1299

$8.58

92026

SPACER,FORK

92026-1477

$29.51

92033

RING-SNAP

92033-1077

$4.96

92049

SEAL-OIL,FORK OUTER TUBE

92049-1456

$23.82

92093

SEAL,FORK OUTER TUBE

92093-1415

$22.53

92150

BOLT,SOCKET,8X25

92150-1172

$2.06

92150A

BOLT,SOCKET,8X40

92150-1194

$2.80

92150B

BOLT,12X22

92150-1398

$9.21

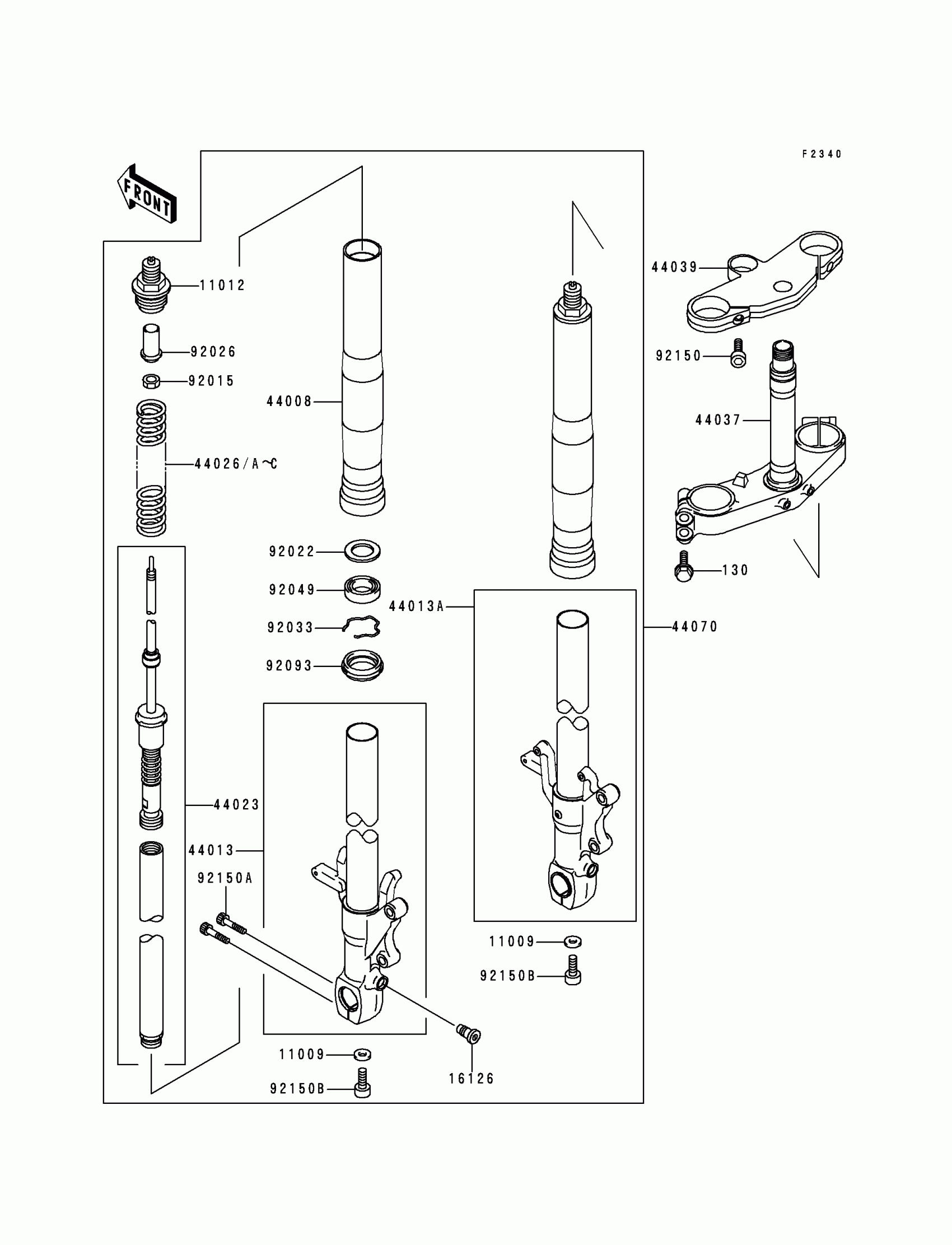

Kawasaki Ninja® ZX™-7RR Front Fork Diagram

BOLT-FLANGED,8X40

GASKET,FORK CYLINDER BOLT

CAP,FORK

VALVE,FORK

PIPE-FORK OUTER,A.BRONZE

PIPE-FORK INNER,LH,SILVER

PIPE-FORK INNER,RH,SILVER

CYLINDER-COMP-FORK

SPRING-FRONT FORK,K=0.95/1.2

SPRING-FRONT FORK,K=0.9

SPRING-FRONT FORK,K=0.95

SPRING-FRONT FORK,K=1.0

HOLDER-FORK UNDER

HOLDER-FORK UPPER

DAMPER-ASSY,FORK,SILVER

NUT

WASHER

SPACER,FORK

RING-SNAP

SEAL-OIL,FORK OUTER TUBE

SEAL,FORK OUTER TUBE

BOLT,SOCKET,8X25

BOLT,SOCKET,8X40

BOLT,12X22
