1997 Kawasaki Ninja® ZX™-7RR Front Brake Diagram

← All diagrams

Find the part on the Front Brake diagram for your 1997 Kawasaki Ninja® ZX™-7RR, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

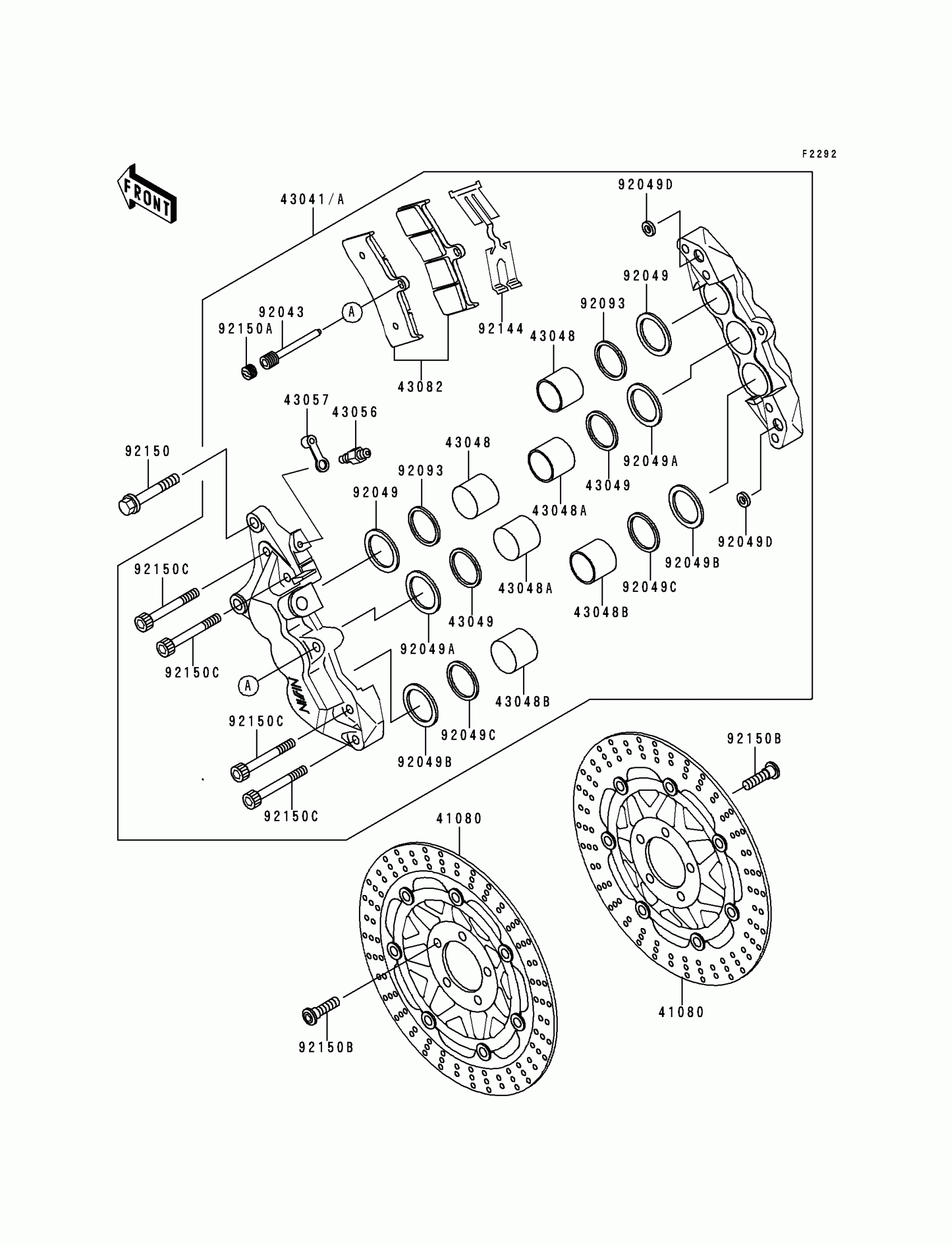

1997 Kawasaki Ninja® ZX™-7RR Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

41080

DISC,FR,GRAY

41080-1408-FF

1

$435.88

In stock

43041

CALIPER-ASSY,FR,LH

43041-1584

1
Out of stock

43041A

CALIPER-ASSY,FR,RH

43041-1585

1
Out of stock

43048

PISTON-CALIPER

43048-1074

1
Out of stock

43048A

PISTON-CALIPER

43048-1075

1
Out of stock

43048B

PISTON-CALIPER

43048-1076

1
Out of stock

43049

PACKING

43049-1064

1

$4.88

In stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1

$3.89

In stock

43082

PAD-ASSY-BRAKE

43082-1181

1

$56.59

In stock

92043

PIN,HANGER

92043-1520

1

$7.81

In stock

92049

SEAL-OIL

92049-1442

1
Out of stock

92049A

SEAL-OIL

92049-1443

1
Out of stock

92049B

SEAL-OIL

92049-1444

1
Out of stock

92049C

SEAL-OIL

92049-1447

1
Out of stock

92049D

SEAL-OIL

92049-1448

1
Out of stock

92093

SEAL,PISTON

92093-1272

1

$15.29

In stock

92144

SPRING,PAD

92144-1901

1
Out of stock

92150

BOLT,FLANGED,10X38

92150-1297

1

$5.76

In stock

92150A

BOLT,PLUG

92150-1692

1

$6.24

In stock

92150B

BOLT,SOCKET,8X30

92150-1771

1

$3.72

In stock

92150C

BOLT

92150-1971

1
Out of stock
