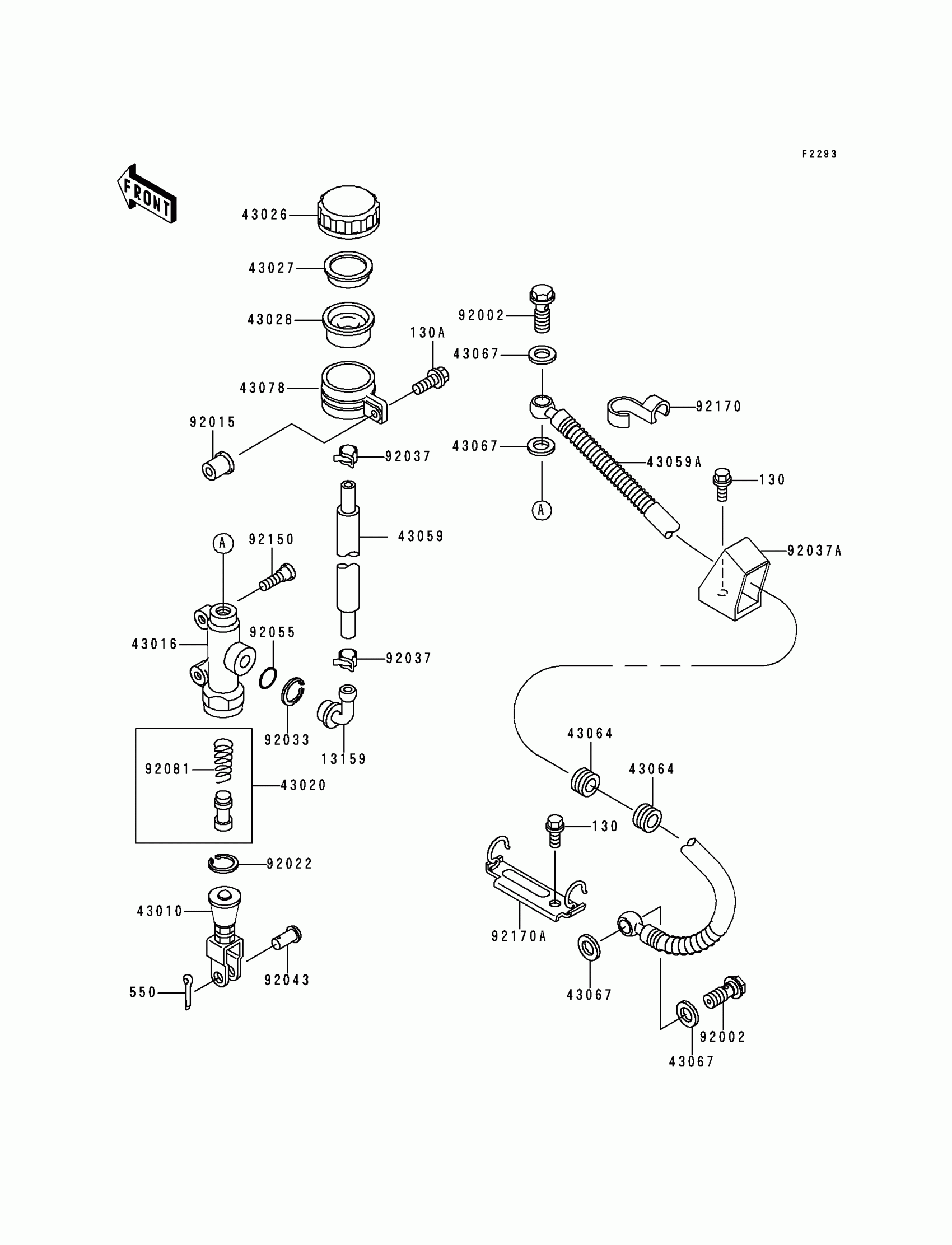

Kawasaki Ninja® ZX™-7RR Rear Master Cylinder Diagram

#

Description
Price

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,6X25

130J0625

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1062

$46.36

43016

CYLINDER-MASTER,RR

43016-1212

$217.54

43020

PISTON-COMP-BRAKE

43020-1057

$59.90

43026

CAP-BRAKE

43026-1051

$31.36

43027

PLATE-DIAPHRAGM

43027-1051

$4.22

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$15.01

43059A

HOSE-BRAKE,RR

43059-1938

Unavailable

43064

GROMMET,HOSE CLAMP

43064-006

$3.43

43067

WASHER,10.5X15X1.5

43067-001

$1.81

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.80

92002

BOLT,OIL,L=23

92002-1888

$4.35

92015

NUT

92015-1700

$6.82

92022

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.94

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1896

$22.64

92043

PIN,8MM

92043-1303

$3.11

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92150

BOLT,SOCKET,8X25

92150-1837

$3.97

92170

CLAMP,HOSE

92170-1097

$5.71

92170A

CLAMP,HOSE

92170-1367

$33.81

43059

HOSE-BRAKE,RR MASTER CYLINDER

43059-1911

$33.28
