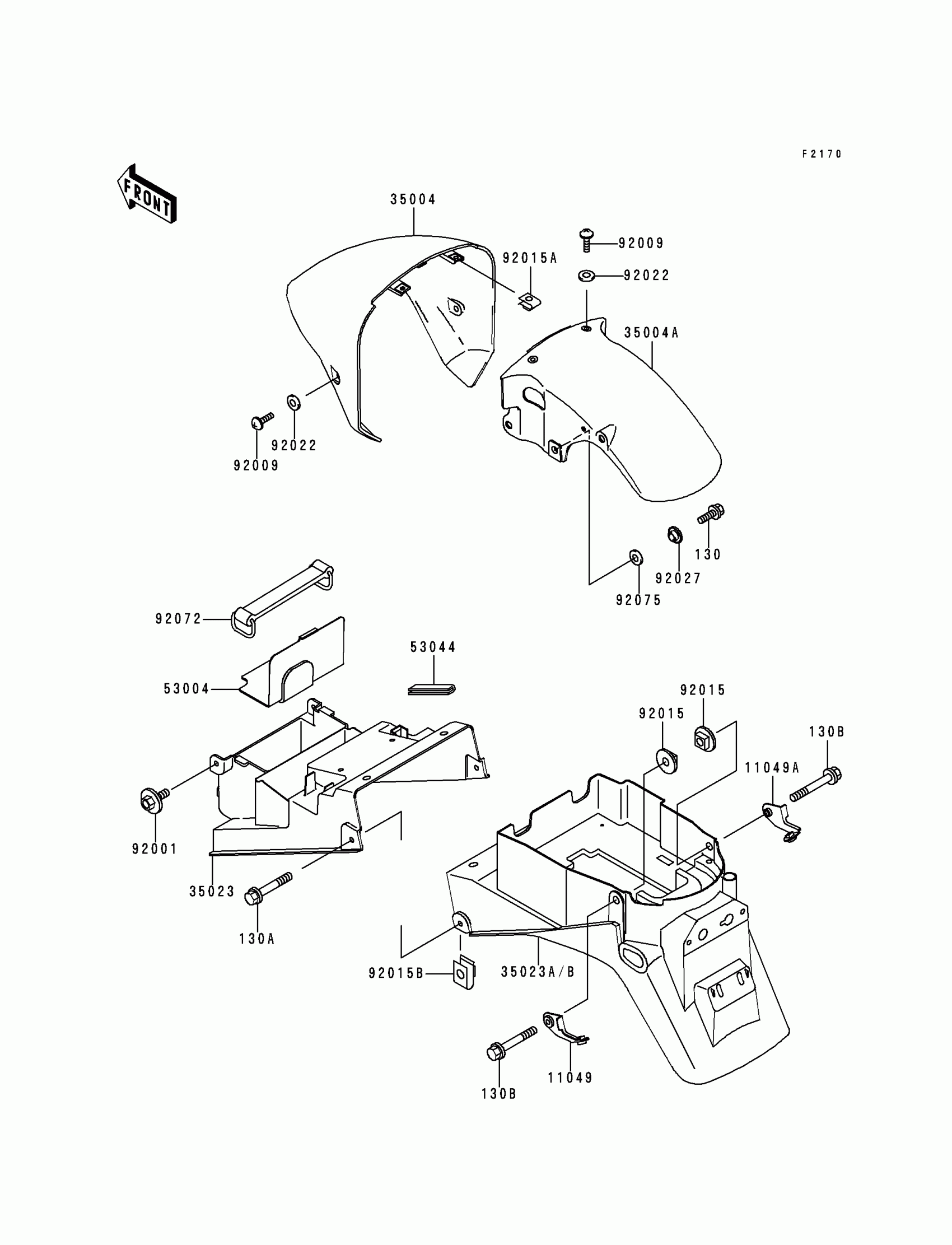

Kawasaki Ninja® ZX™-7RR Fenders Diagram

Description

Price

130

BOLT-FLANGED,6X16

130H0616

$1.17

130A

BOLT-FLANGED,6X35

130J0635

Unavailable

130B

BOLT-FLANGED,6X40

130J0640

$5.01

11049

BRACKET,SIDE COVER,LH

11049-1364

Unavailable

11049A

BRACKET,SIDE COVER,RH

11049-1366

Unavailable

35004

FENDER-FRONT,FR,L.GREEN

35004-1333-7F

$136.38

35004A

FENDER-FRONT,RR,L.GREEN

35004-1334-7F

$81.23

35023

FENDER-REAR,FR

35023-1427

$138.75

35023A

FENDER-REAR,RR

35023-1428

$81.62

53004

MAT,BATTERY

53004-1109

$21.93

53044

TRIM,L=60

53044-1249

$6.57

92001

BOLT,6X16

92001-1950

$4.31

92009

SCREW,5X16,BLACK

92009-1654

$3.13

92015

NUT,6MM

92015-1321

$11.91

92015A

NUT,5MM

92015-1573

$6.63

92015B

NUT,6MM

92015-1602

$7.34

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92027

COLLAR,COWLING STAY

92027-1667

$11.25

92072

BAND,L=142.1

92072-006

$12.76

92075

DAMPER

92075-1564

$5.48
