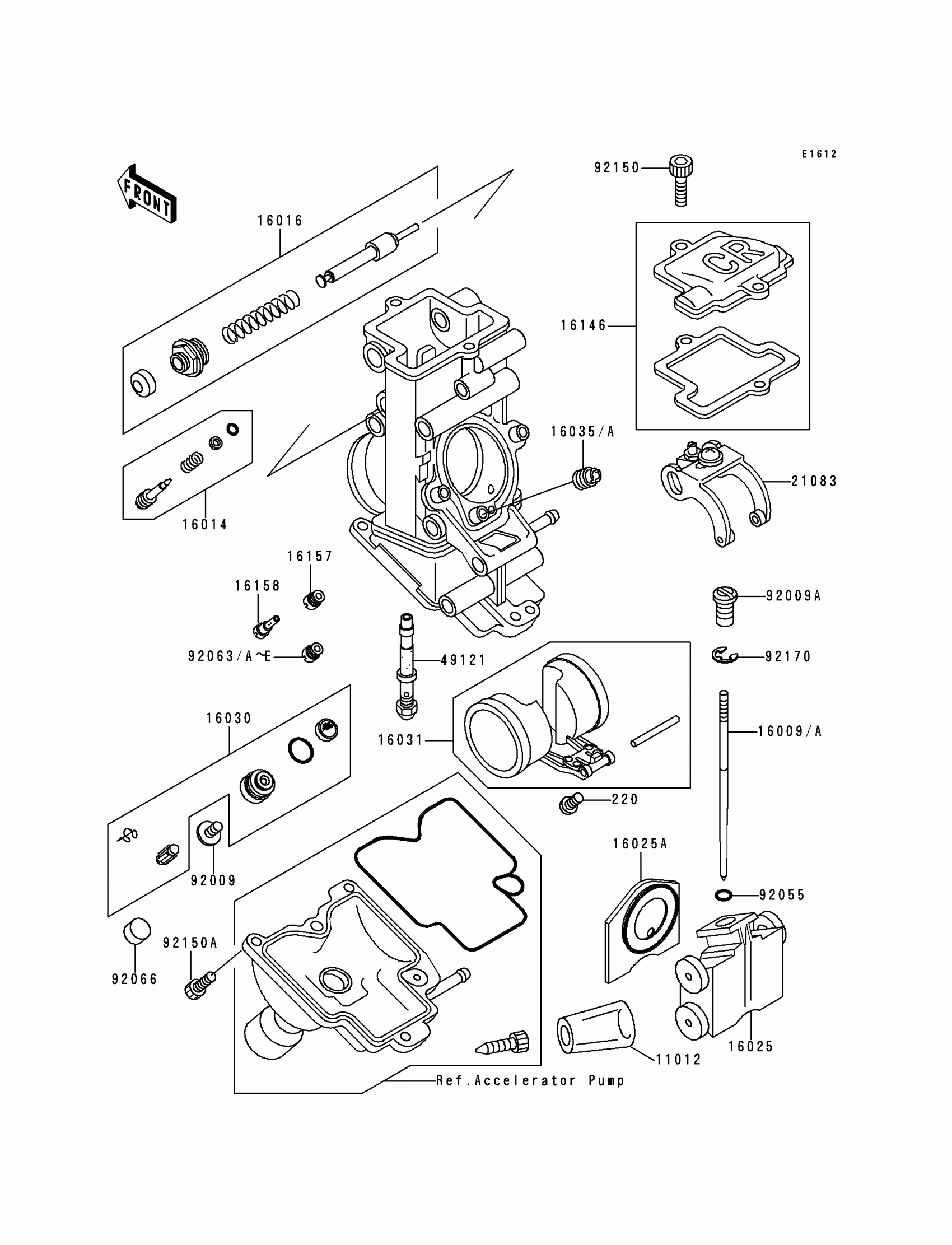

Kawasaki Ninja® ZX™-7RR Carburetor Parts Diagram

#

Description
Price

220

SCREW-PAN-CROS,4X8

220D0408

$0.68

11012

CAP,DRAIN SCREW

11012-1675

$9.20

16009A

NEEDLE-JET,N3HC

16009-1890

Unavailable

16014

SCREW-PILOT AIR

16014-1075

$24.26

16016

PLUNGER

16016-1093

Unavailable

16025

VALVE-THROTTLE

16025-1177

Unavailable

16025A

VALVE-THROTTLE

16025-1178

Unavailable

16030

VALVE-FLOAT

16030-1079

$96.48

16031

FLOAT

16031-1081

$48.39

16035

JET-AIR,#140

16035-1064

Unavailable

16035A

JET-AIR,#60

16035-1067

Unavailable

16146

COVER-ASSY,CHAMBER TOP

16146-1183

Unavailable

16157

JET-STARTER,#55

16157-1061

$22.95

16158

JET-SLOW,#42

16158-1051

$21.35

21083

ARM,THROTTLE VALVE

21083-1095

Unavailable

49121

NOZZLE-MAIN

49121-1060

Unavailable

92009

SCREW,4X8

92009-1550

$4.38

92009A

SCREW,NEEDLE

92009-1630

$11.39

92055

RING-O

92055-1559

Unavailable

92063

JET-MAIN,#210

92063-1416

$16.92

92063A

JET-MAIN,#200

92063-1417

$16.92

92063B

JET-MAIN,#195

92063-1418

$16.92

92063C

JET-MAIN,#190

92063-1419

$16.92

92063D

JET-MAIN,#220

92063-1420

$12.95

92063E

JET-MAIN,#230

92063-1421

Unavailable

92066

PLUG,PILOT AIR SCREW,6.9X2

92066-1051

$5.05

92150

BOLT,SOCKET,4X12

92150-1426

$6.22

92150A

BOLT,SOCKET,4X10

92150-1427

$8.19

92170

CLAMP,JET NEEDLE

92170-1204

$3.94
