Description

Price

13168

LEVER,ACCELERATOR LINK

13168-1489

Unavailable

13168A

LEVER,STARTER

13168-1593

$129.17

13168B

LEVER,SWITCH

13168-1594

Unavailable

13168C

LEVER,ACCELERATOR LINK

13168-1595

Unavailable

13270

PLATE,CRUISE CANSEL SWITCH

13270-1651

Unavailable

16021

SCREW-THROTTLE STOP

16021-1210

Unavailable

16041

SHAFT-CARBURETOR

16041-1066

Unavailable

16170

LINK-ASSY,ACCELERATOR

16170-1053

Unavailable

16170A

LINK-ASSY,ACCELERATOR

16170-1054

Unavailable

16184D

CHAMBER-ASSY-FLOAT,LH,OUTSIDE

16184-1075

Unavailable

16184E

CHAMBER-ASSY-FLOAT,LH,INSIDE

16184-1076

Unavailable

16184F

CHAMBER-ASSY-FLOAT,RH,INSIDE

16184-1077

Unavailable

16184G

CHAMBER-ASSY-FLOAT,RH,OUTSIDE

16184-1078

Unavailable

27010

SWITCH,CRUISE CANSEL

27010-1290

Unavailable

46102

ROD,ACCELERATOR PUMP

46102-1296

Unavailable

92009

SCREW

92009-1262

$6.61

92009A

SCREW

92009-1631

$8.12

92022

WASHER,6.1X11X0.8,POLYACETAL

92022-1199

$4.60

92144

SPRING,STARTER LEVER

92144-1961

Unavailable

92150

BOLT,SOCKET,4X8

92150-1440

Unavailable

92200

WASHER

92200-1068

Unavailable

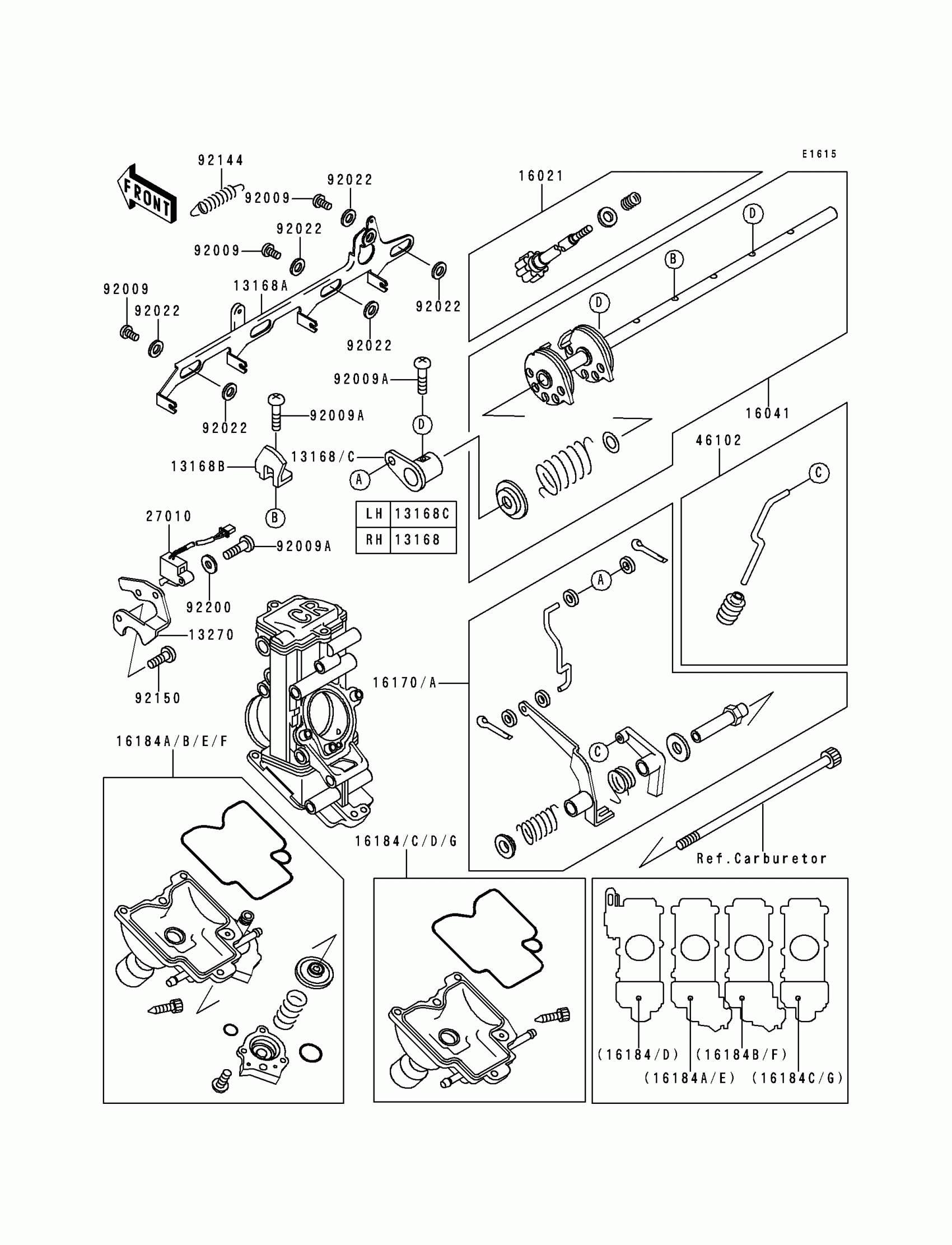

Kawasaki Ninja® ZX™-7RR Accelerator Pump Diagram

LEVER,ACCELERATOR LINK

LEVER,STARTER

LEVER,SWITCH

LEVER,ACCELERATOR LINK

PLATE,CRUISE CANSEL SWITCH

SCREW-THROTTLE STOP

SHAFT-CARBURETOR

LINK-ASSY,ACCELERATOR

LINK-ASSY,ACCELERATOR

CHAMBER-ASSY-FLOAT,LH,OUTSIDE

CHAMBER-ASSY-FLOAT,LH,INSIDE

CHAMBER-ASSY-FLOAT,RH,INSIDE

CHAMBER-ASSY-FLOAT,RH,OUTSIDE

SWITCH,CRUISE CANSEL

ROD,ACCELERATOR PUMP

SCREW

SCREW

WASHER,6.1X11X0.8,POLYACETAL

SPRING,STARTER LEVER

BOLT,SOCKET,4X8

WASHER
