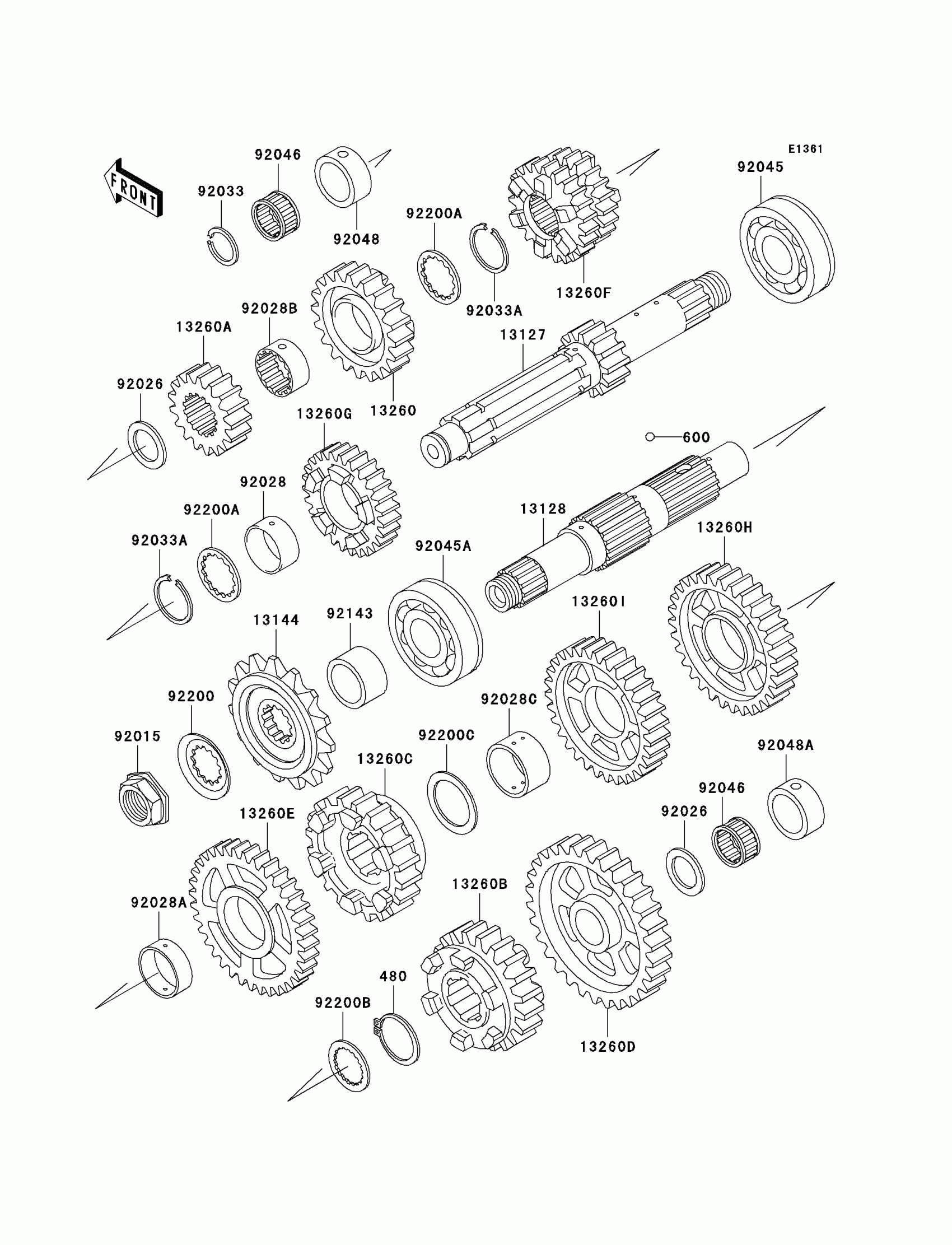

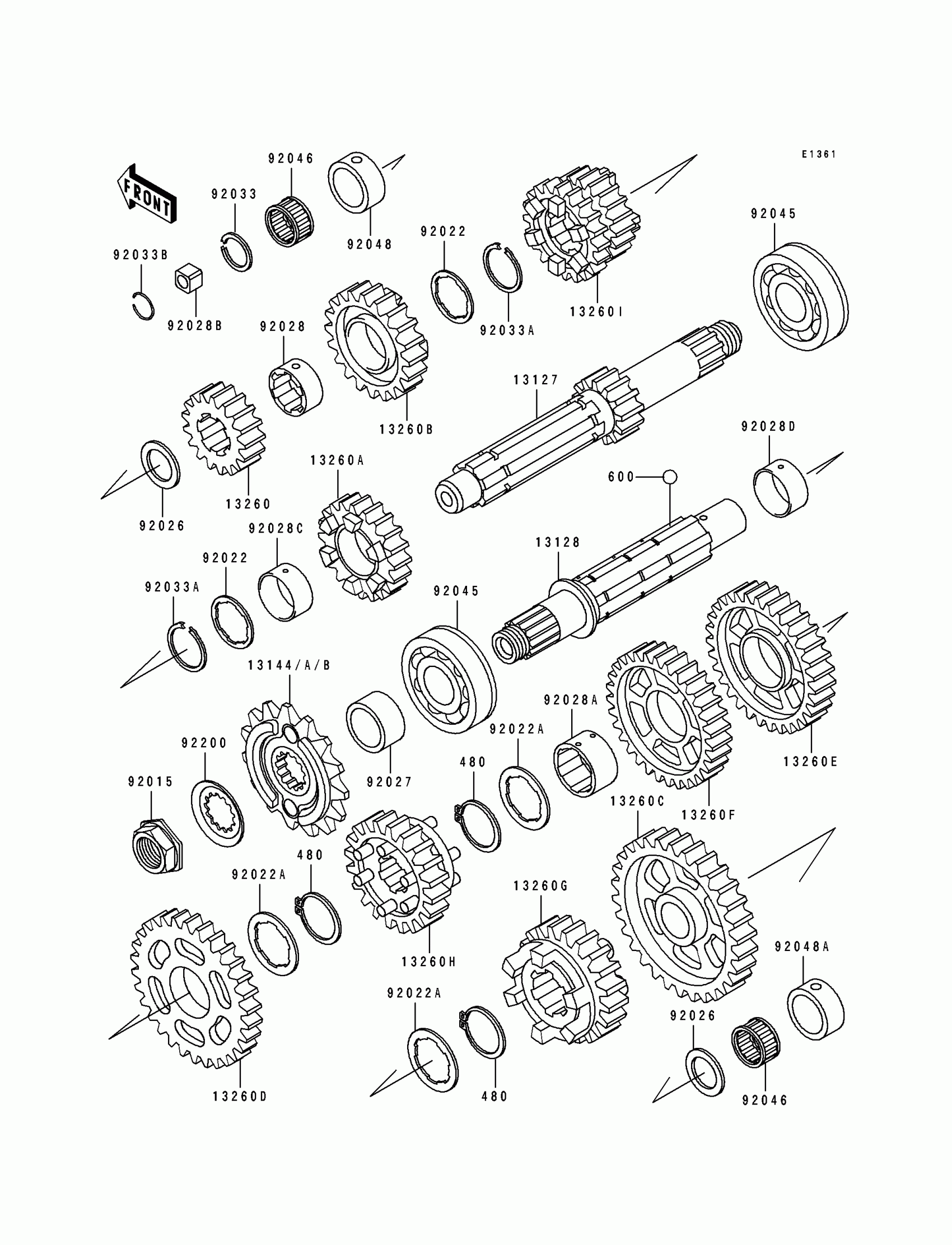

Kawasaki Ninja® ZX™-7R Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,16T

13127-1207

Unavailable

13128

SHAFT-TRANSMISSION OUTPUT

13128-1181

Unavailable

13144

SPROCKET-OUTPUT,17T(#530)

13144-1009

Unavailable

13144A

SPROCKET-OUTPUT,15T(#530)

13144-1117

Unavailable

13144B

SPROCKET-OUTPUT,16T

13144-1129

Unavailable

13260

GEAR,INPUT 2ND,19T

13260-1183

Unavailable

13260A

GEAR,INPUT 5TH,25T

13260-1185

Unavailable

13260B

GEAR,INPUT TOP,25T

13260-1186

Unavailable

13260C

GEAR,OUTPUT LOW,38T

13260-1187

Unavailable

13260D

GEAR,OUTPUT 2ND,36T

13260-1188

Unavailable

13260E

GEAR,OUTPUT 3RD,34T

13260-1189

Unavailable

13260F

GEAR,OUTPUT 4TH,31T

13260-1190

Unavailable

13260G

GEAR,OUTPUT 5TH,31T

13260-1191

Unavailable

13260H

GEAR,OUTPUT TOP,30T

13260-1192

Unavailable

13260I

GEAR,INPUT 3RD&4TH,21T&22T

13260-1248

Unavailable

92015

NUT,20MM

92015-1254

$11.31

92022

WASHER,TOOTHED,26X35.5X1.5

92022-1077

$10.63

92022A

WASHER,TOOTHED,30.3X40X1.5

92024-043

$12.47

92026

SPACER,22X35.5X2.1

92026-1224

$9.27

92027

COLLAR,ENGINE SPROCKET

92027-1302

$14.47

92028

BUSHING,INPUT TOP GEAR

92028-1255

$41.11

92028A

BUSHING,OUTPUT 3RD&4TH

92028-1363

$46.37

92028B

BUSHING

92028-1448

Unavailable

92028C

BUSHING,INPUT GEAR

92028-1449

$24.03

92028D

BUSHING,OUTPUT 2ND

92028-1450

$29.55

92033

RING-SNAP,20X25.5X1.2

92033-025

$3.78

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$3.54

92033B

RING-SNAP

92036-005

$3.11

92045

BEARING-BALL,6305N2SH2

92045-1224

$37.61

92046

BEARING-NEEDLE,FWF-223014

92046-031

$15.89

92048

RACE,NEEDLE BEARING

92048-1066

$35.51

92048A

RACE,0RZ30X38X17PX1

92048-1067

$52.46

92200

WASHER

92200-1065

$4.97

480

CIRCLIP

480J2900

$5.42

600

BALL-STEEL,5/32

600A0500

$0.68
