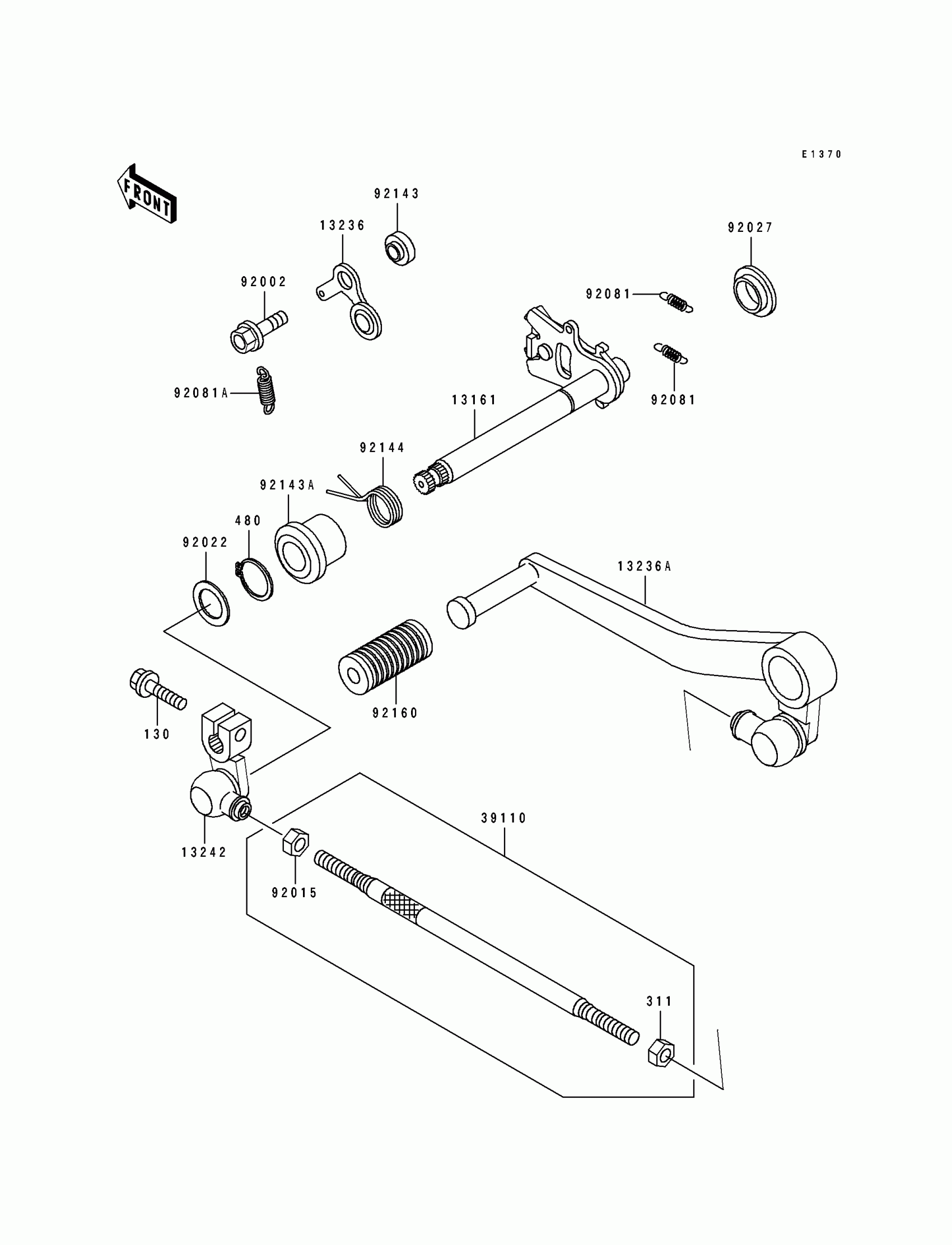

Kawasaki Ninja® ZX™-7R Gear Change Mechanism Diagram

Description

Price

13161

LEVER-COMP-CHANGE SHAFT

13161-1182

Unavailable

13236

LEVER-COMP,POSITION

13236-1189

Unavailable

13236A

LEVER-COMP,CHANGE PEDAL

13236-1204

$66.46

13242

LEVER-ASSY-CHANGE,LINK

13242-1278

$53.33

39110

ROD-ASSY-TIE

39110-1097

$33.36

92002

BOLT,6X16

92002-1571

$4.17

92015

NUT,LEFT HANDED,6MM

92015-1125

$3.85

92022

WASHER,13.3X20X1

92022-1496

$2.99

92027

COLLAR,CHANGE SHAFT,L=5.5

92027-1512

Unavailable

92081

SPRING,CHANGE LEVER

92081-076

$4.14

92081A

SPRING,CHANGE DRUM LEVER

92083-012

$3.54

92143

COLLAR

92143-1055

$5.61

92143A

COLLAR,RETURN SPRING

92143-1498

$8.10

92144

SPRING,CHANGE SHAFT RETURN

92144-1628

$9.14

92160

DAMPER,CHANGE PEDAL

92160-1036

$3.85

130

BOLT-FLANGED,6X20

130S0620

Unavailable

311

NUT-HEX,6MM

311G0600

Unavailable

480

CIRCLIP-TYPE-C,13MM

480J1300

$2.99
