1994 Kawasaki Ninja® ZX™-7R Swingarm Diagram

← All diagrams

Find the part on the Swingarm diagram for your 1994 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

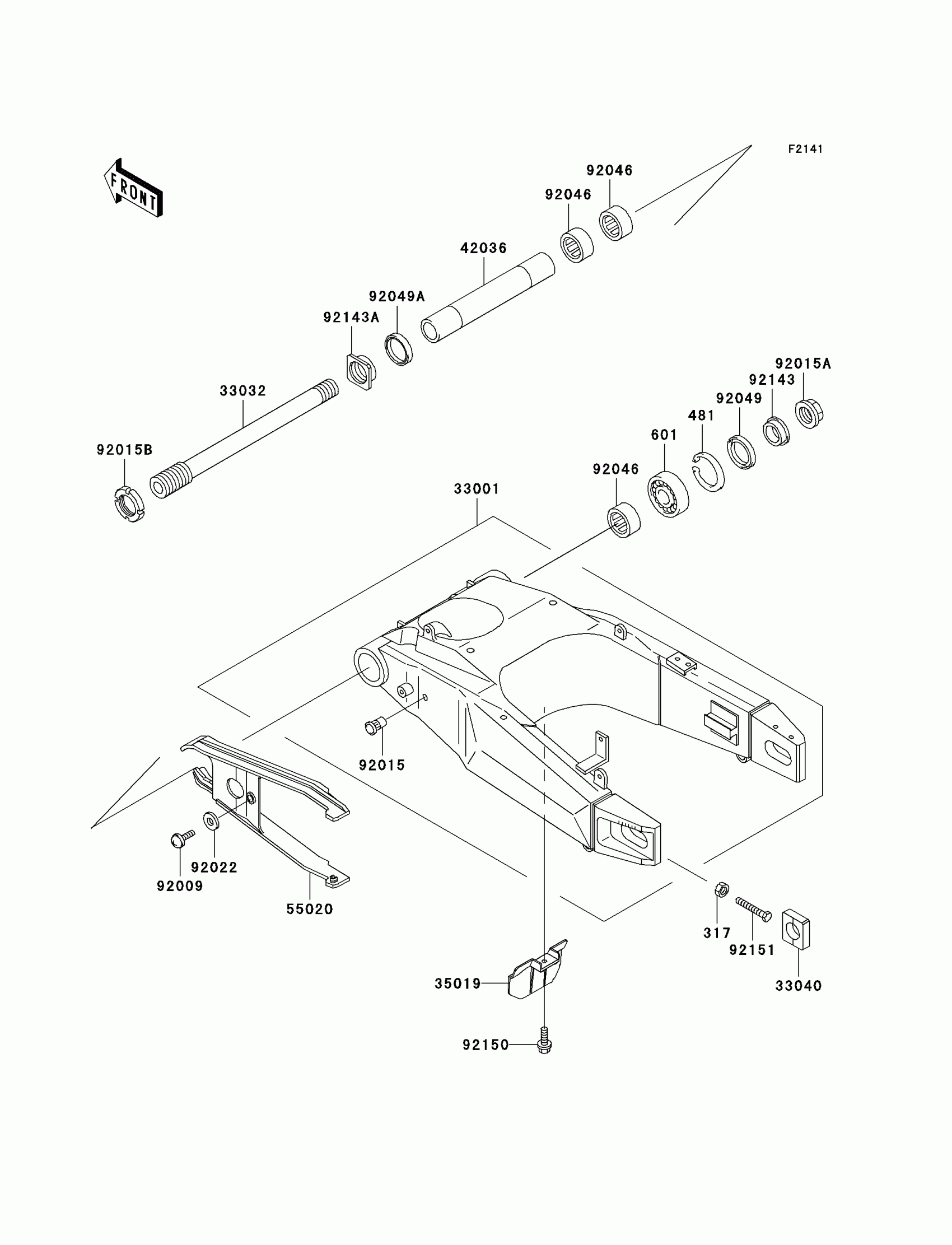

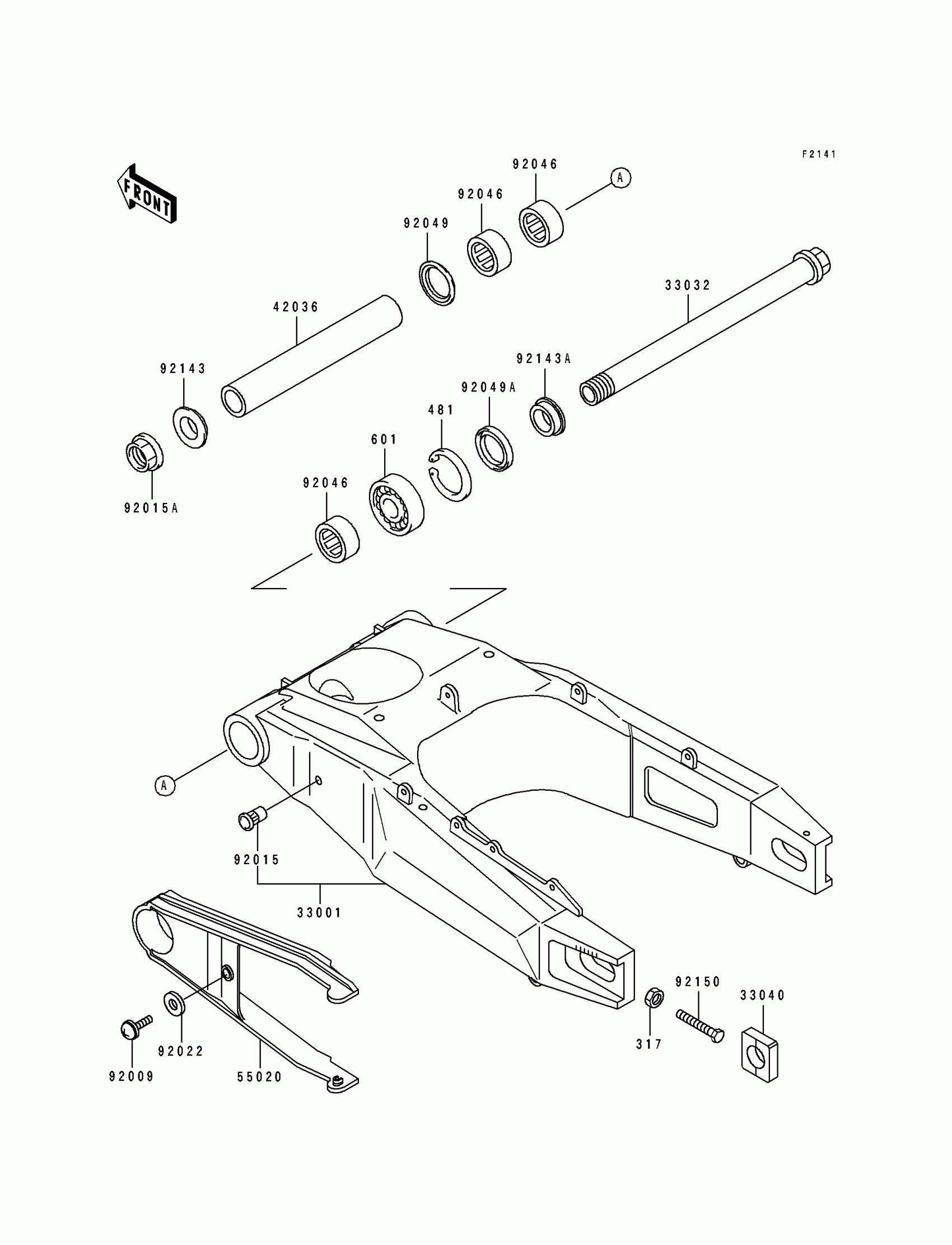

1994 Kawasaki Ninja® ZX™-7R Swingarm Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

33001

ARM-COMP-SWING,SILVER NO.30

33001-1411-KF

1
Out of stock

33032

SHAFT-SWING ARM

33032-1164

1
Out of stock

33040

ADJUSTER-CHAIN,RH

33040-1114

1

$15.15

In stock

42036

SLEEVE,SWING ARM,L=228

42036-1284

1
Out of stock

55020

GUARD,DRIVE CHAIN

55020-1450

1
Out of stock

92009

SCREW,6X18

92009-1663

1
Out of stock

92015

NUT,POP,6MM,L=16.5

92015-1792

1

$3.72

In stock

92015A

NUT,FLANGED,25MM

92015-1845

1

$23.68

In stock

92022

WASHER,6.5X16X1

92022-1143

1

$3.12

In stock

92046

BEARING-NEEDLE,BM3520

92046-1205

1
Out of stock

92049

SEAL-OIL,MHA 35 42 5.7F

92049-1380

1
Out of stock

92049A

SEAL-OIL,MHA 35X47X5

92049-1381

1
Out of stock

92143

COLLAR,SWING ARM,LH,L=11.5

92143-1480

1
Out of stock

92143A

1

$31.44

In stock

92150

BOLT,8X55

92150-1350

1

$1.81

In stock

317

NUT-HEX-SMALL,8MM

317G0800

1
Out of stock

481

1

$3.36

In stock

601

1

$25.56

In stock
