1992 Kawasaki Ninja® ZX™-7R Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1992 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

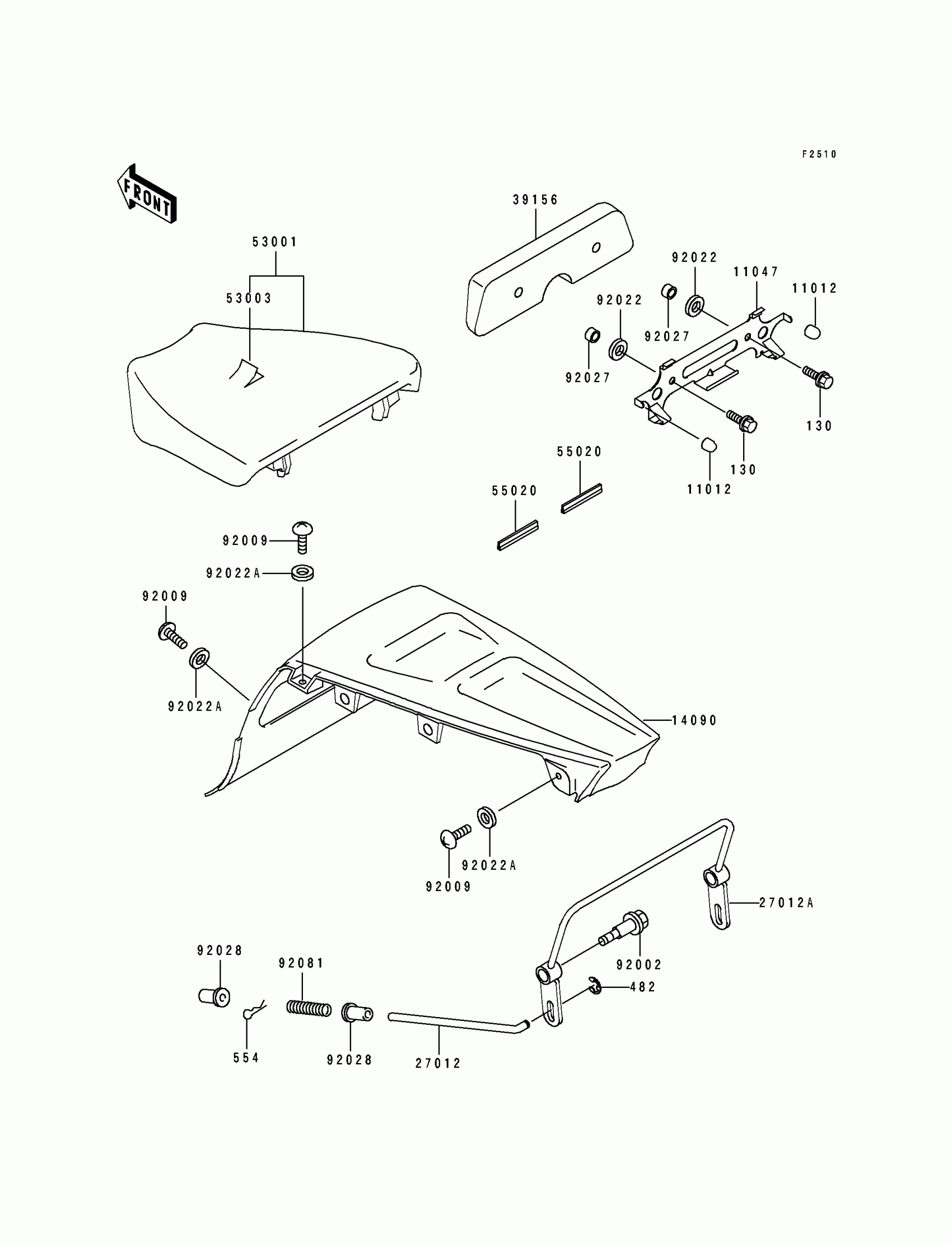

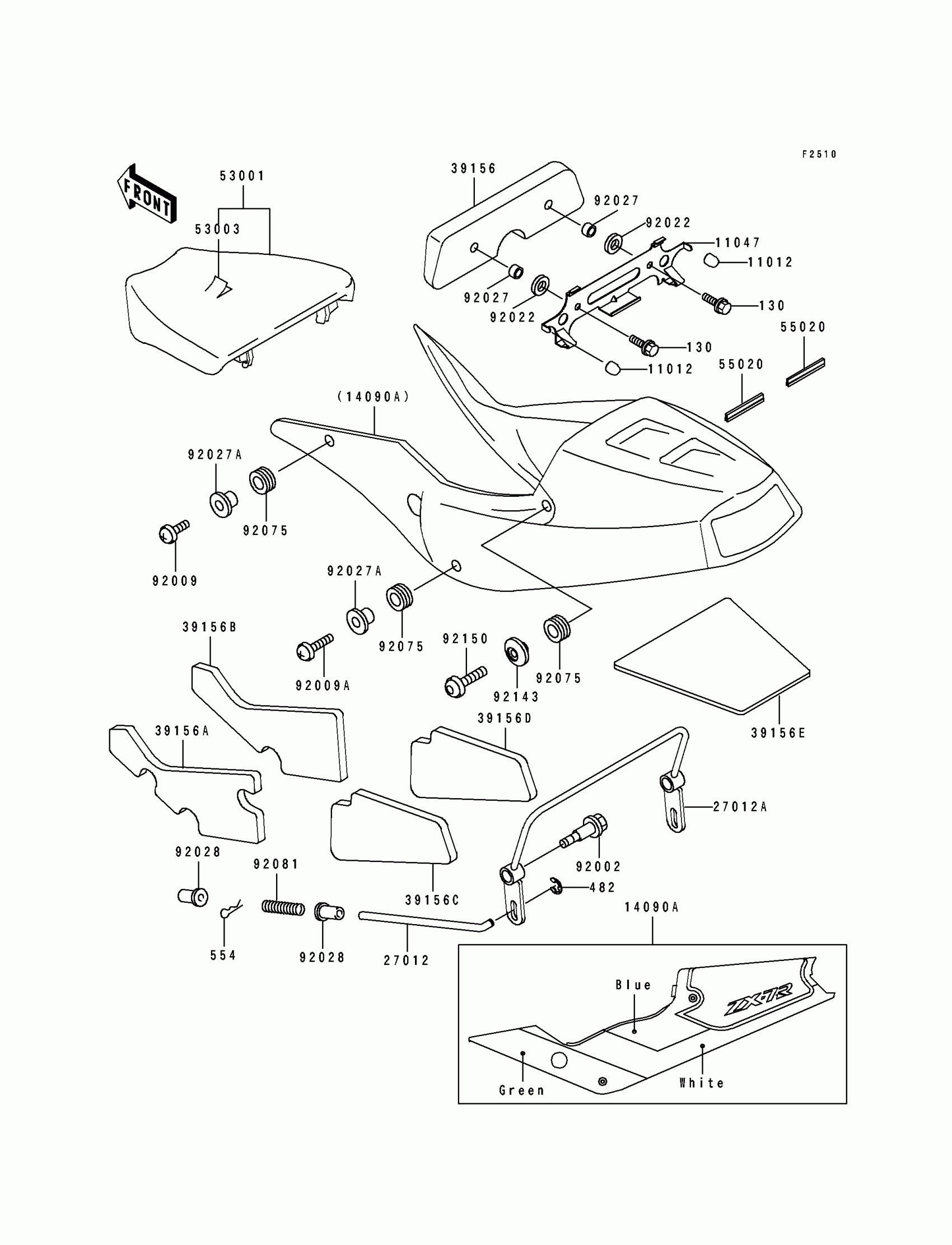

1992 Kawasaki Ninja® ZX™-7R Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1438

1
Out of stock

11047

BRACKET,SEAT PAD

11047-1353

1
Out of stock

14090B

COVER,SEAT,GREEN/WHITE/BLUE(92)

14090-5010-KE

1
Out of stock

27012

HOOK,SEAT,FR

27012-1436

1
Out of stock

27012A

HOOK,SEAT,RR

27012-1437

1
Out of stock

39156

PAD,SEAT COVER,BLACK

39156-1228-MA

1
Out of stock

39156A

PAD,SIDE COVER,FR,LH

39156-1252

1
Out of stock

39156B

PAD,SIDE COVER,FR,RH

39156-1253

1
Out of stock

39156C

PAD,SIDE COVER,RR,LH

39156-1254

1
Out of stock

39156D

PAD,SIDE COVER,RR,RH

39156-1255

1
Out of stock

39156E

PAD,SIDE COVER,CNT

39156-1262

1
Out of stock

53001

SEAT-ASSY,FR,BLACK

53001-1627-MA

1
Out of stock

53003

LEATHER,FRONT SEAT,BLACK

53003-1244-MA

1
Out of stock

55020

GUARD,SEAT COVER

55020-1413

1
Out of stock

92002

BOLT,FLANGED,6X14X13.5

92002-1595

1
Out of stock

92009

SCREW,6X14,WHITE

92009-1287

1
Out of stock

92009A

SCREW,6X20

92009-1298

1
Out of stock

92022

WASHER,6.5X20X1.6

92022-125

1
Out of stock

92027

COLLAR

92027-103

1
Out of stock

92027A

COLLAR

92027-1166

1
Out of stock

92028

BUSHING

92028-1637

1
Out of stock

92075

DAMPER

92075-1634

1
Out of stock

92081

SPRING

92081-1486

1
Out of stock

92143

COLLAR,WHITE

92143-1273

1
Out of stock

92150

BOLT,SOCKET,6X18

92150-1553

1
Out of stock

130

BOLT-FLANGED,6X16

130H0616

1
Out of stock

482

CIRCLIP-TYPE-E,5MM

482L5000

1
Out of stock

554

PIN,SNAP

554A0600

1
Out of stock
