1992 Kawasaki Ninja® ZX™-7R Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1992 Kawasaki Ninja® ZX™-7R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

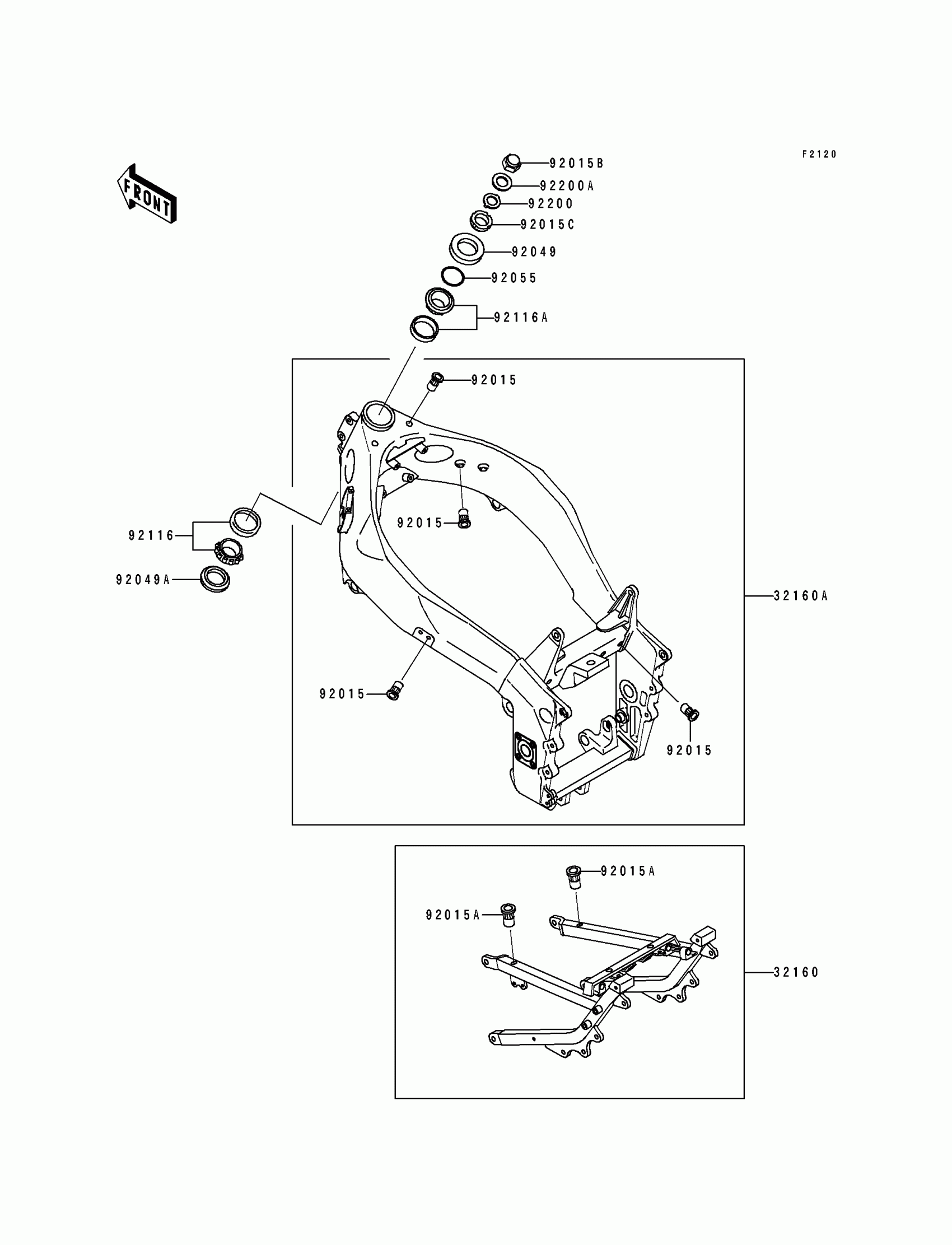

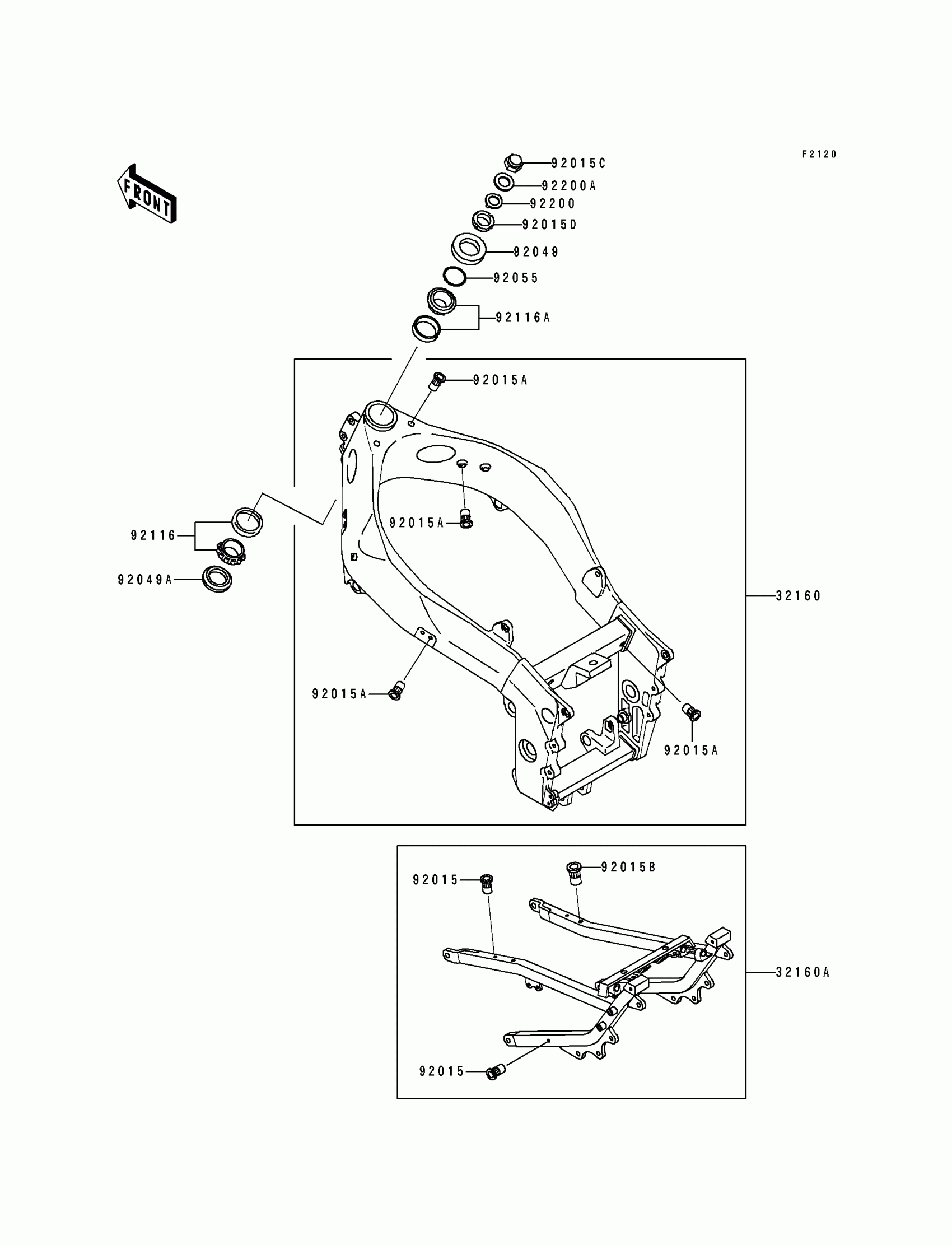

1992 Kawasaki Ninja® ZX™-7R Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32160

1

$2,380.32

In stock

32160A

1

$985.06

In stock

92015

NUT,POP,6MM,L=15

92015-1791

1

$3.72

In stock

92015A

NUT,POP,6MM,L=16.5

92015-1792

1

$3.72

In stock

92015B

NUT,POP,8MM,L=16.5

92015-1793

1

$4.42

In stock

92015C

NUT,CAP,25MM

92015-1847

1

$30.09

In stock

92015D

1

$44.93

In stock

92049

SEAL-OIL,XMH 43 75 6.4J

92049-1382

1
Out of stock

92049A

SEAL-OIL,XMHE 43 55 4J

92049-1383

1
Out of stock

92055

RING-O,34.5X2.0

92055-1452

1

$4.16

In stock

92116

1

$73.29

In stock

92116A

1

$73.29

In stock

92200

WASHER,CLAW,25.5X40X2.3

92200-1083

1
Out of stock

92200A

WASHER,25.5X42X2.3

92200-1084

1
Out of stock
