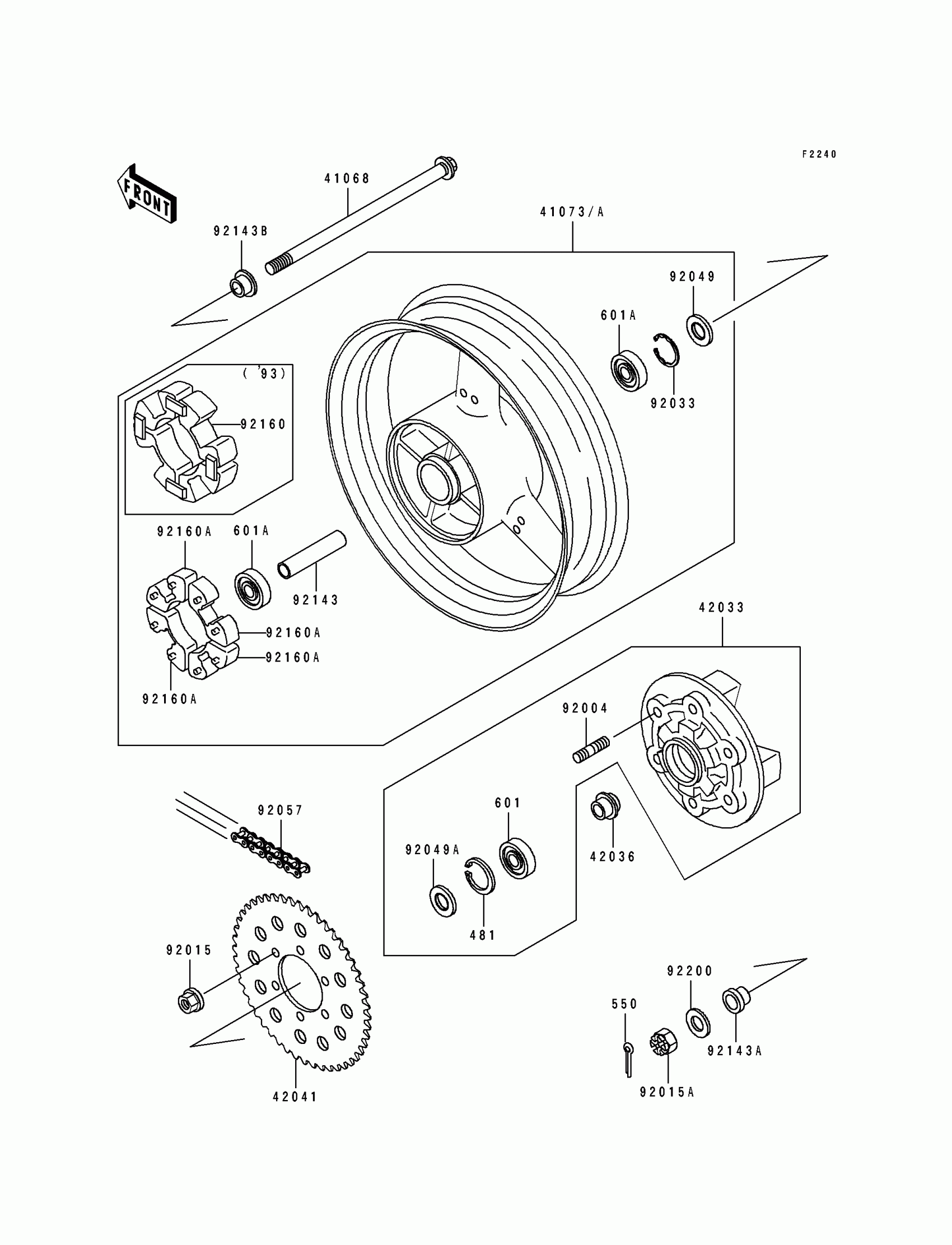

Kawasaki Ninja® ZX™-7R Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR

41068-1326

$100.40

41073A

WHEEL-ASSY,RR,L.GREEN

41073-1547-CJ

Unavailable

42033

COUPLING-ASSY,RR HUB

42033-1144

$253.53

42036

SLEEVE,RR HUB,L=22

42036-1279

$25.74

42041

SPROCKET-HUB,41T

42041-1418

Unavailable

92004

STUD,10X19

92004-1151

$6.80

92015

NUT,10MM

92015-1720

$3.98

92015A

NUT,CASTLE,24MM

92015-1844

$10.34

92033

RING-SNAP,52MM

92033-1043

$6.15

92049

SEAL-OIL,RR HUB

92049-1375

$16.11

92049A

SEAL-OIL,PJN 40 55 8

92049-1376

$13.54

92057

CHAIN,DRIVE,EK50MV-XX108L

92057-1332

$380.75

92143

COLLAR,RR HUB,L=133

92143-1473

Unavailable

92143A

COLLAR,RR AXLE,LH,L=20

92143-1474

Unavailable

92143B

COLLAR,RR AXLE,RH,L=26

92143-1475

$49.20

92160A

DAMPER,SHOCK,RR HUB

92160-1485

$20.75

92200

WASHER,25.5X38X4.5

92200-1081

Unavailable

481

CIRCLIP

481J5500

Unavailable

550

PIN-COTTER,4.0X40

550D4040

$1.05

601

BEARING-BALL,#6006G

601B6006G

$25.77

601A

BEARING-BALL,#6205UG

601B6205UG

$34.04
