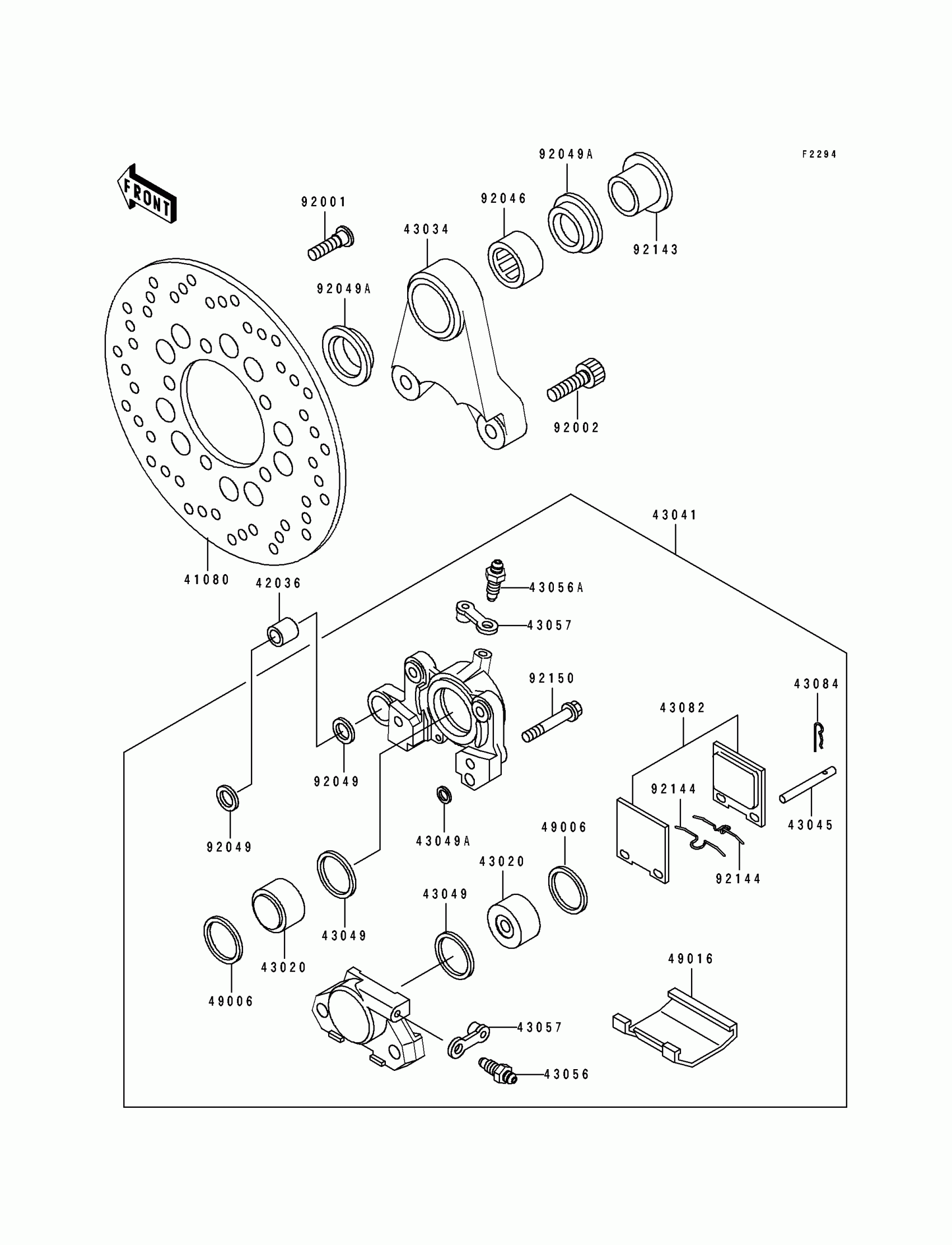

Kawasaki Ninja® ZX™-7R Rear Brake Diagram

#

Description
Price

41080

DISC,RR,C.GRAY

41080-1242-FB

Unavailable

42036

SLEEVE,8.1X14X17.6

42036-1260

$14.19

43020

PISTON-COMP-BRAKE

43020-1106

$61.95

43034

HOLDER-BRAKE,REAR CALIPER

43034-1115

Unavailable

43041

CALIPER-ASSY,RR,M.F.GRAY

43041-1503-FE

$523.21

43045

SHAFT-CALIPER

43045-007

$4.88

43049

PACKING,PISTON SEAL

43049-001

$8.41

43049A

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$4.64

43056

BREATHER

43056-003

$19.94

43056A

BREATHER-BRAKE

43056-1054

$19.94

43057

CAP-BREATHER

43057-003

$1.74

43082

PAD-ASSY-BRAKE

43082-1098

$59.15

43084

CLAMP,PAD

43084-003

$3.29

49006

BOOT,PISTON SEAL

49006-1212

$18.77

49016

COVER-SEAL

49016-1145

$12.88

92002

BOLT,SOCKET,8X25

92002-1442

$3.85

92046

BEARING-NEEDLE,BM3516

92046-1206

Unavailable

92049

SEAL-OIL

92049-1339

$3.31

92049A

SEAL-OIL,MHA 35 42 5.7F

92049-1380

$9.95

92143

COLLAR,L=32

92143-1483

$43.21

92144

SPRING,PAD

92144-1401

$4.14

92150

BOLT,FLANGED,10X45

92150-1273

$8.44

92150A

BOLT,8X30

92150-1728

$3.57
