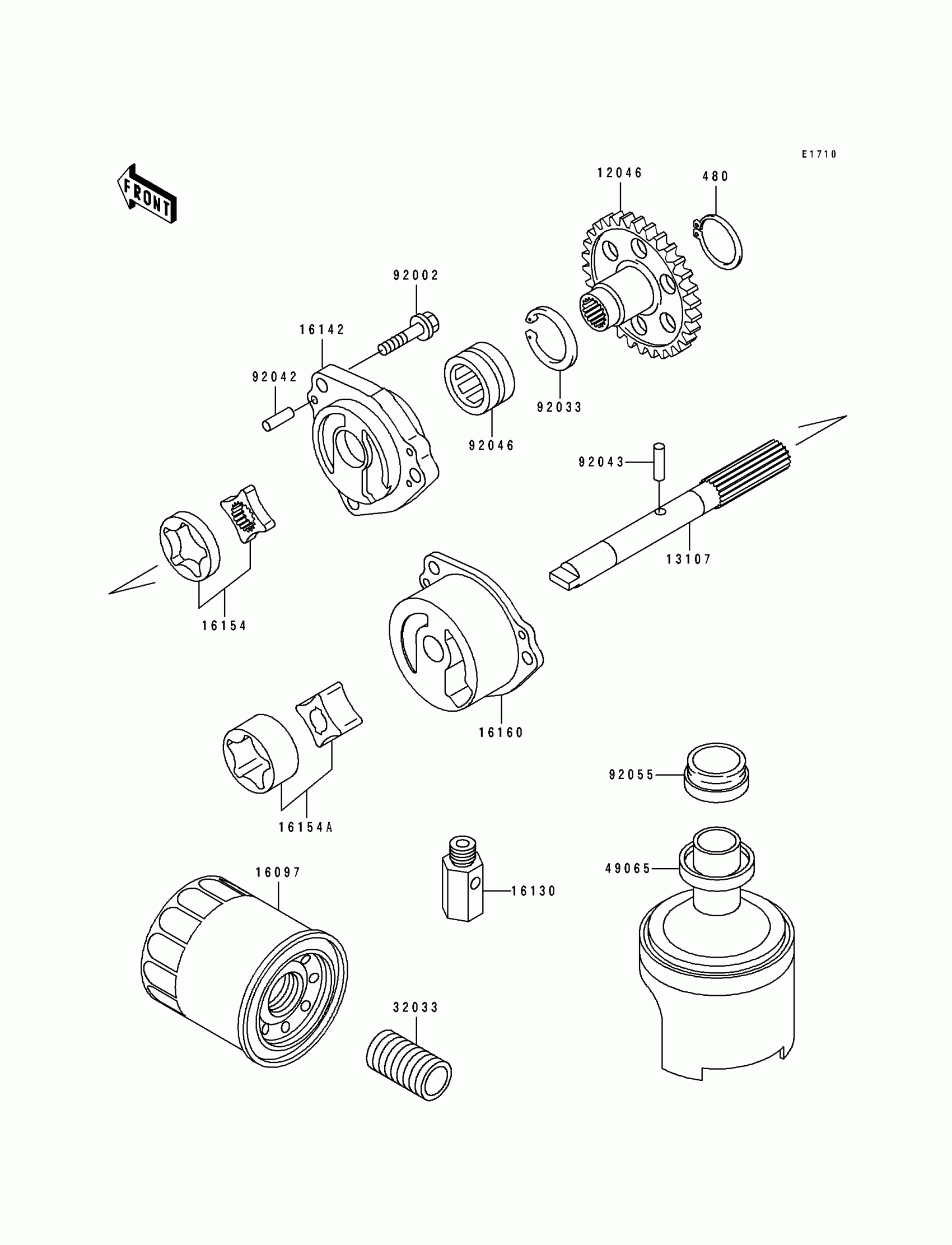

Kawasaki Ninja® ZX™-7R Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,OIL PUMP,30T

12046-1123

Unavailable

13107

SHAFT,OIL PUMP

13107-1278

Unavailable

16097

FILTER-ASSY-OIL

16097-1063

$14.50

16130

VALVE-ASSY-RELIEF

16130-1001

Unavailable

16142

COVER-PUMP

16142-1110

$43.70

16154

ROTOR-PUMP

16154-1090

$70.18

16154A

ROTOR-PUMP,ENGINE

16154-1093

$60.87

16160

BODY,OIL PUMP

16160-1173

$121.77

32033

PIPE,OIL FILTER

32033-1535

$12.96

49065

FILTER-OIL

49065-1068

Unavailable

92002

BOLT,FLANGED,6X25

92002-1582

$4.69

92033

RING-SNAP

92033-1277

$5.40

92042

PIN,DOWEL,4X15.8

92042-014

$0.43

92043

PIN,17.9X5.0

92043-1444

$4.31

92046

BEARING-NEEDLE,RNA4903

92046-1109

$46.27

92055

RING-O,OIL FILTER

92055-1503

$9.51

480

CIRCLIP-TYPE-C,15MM

480J1500

$2.31
