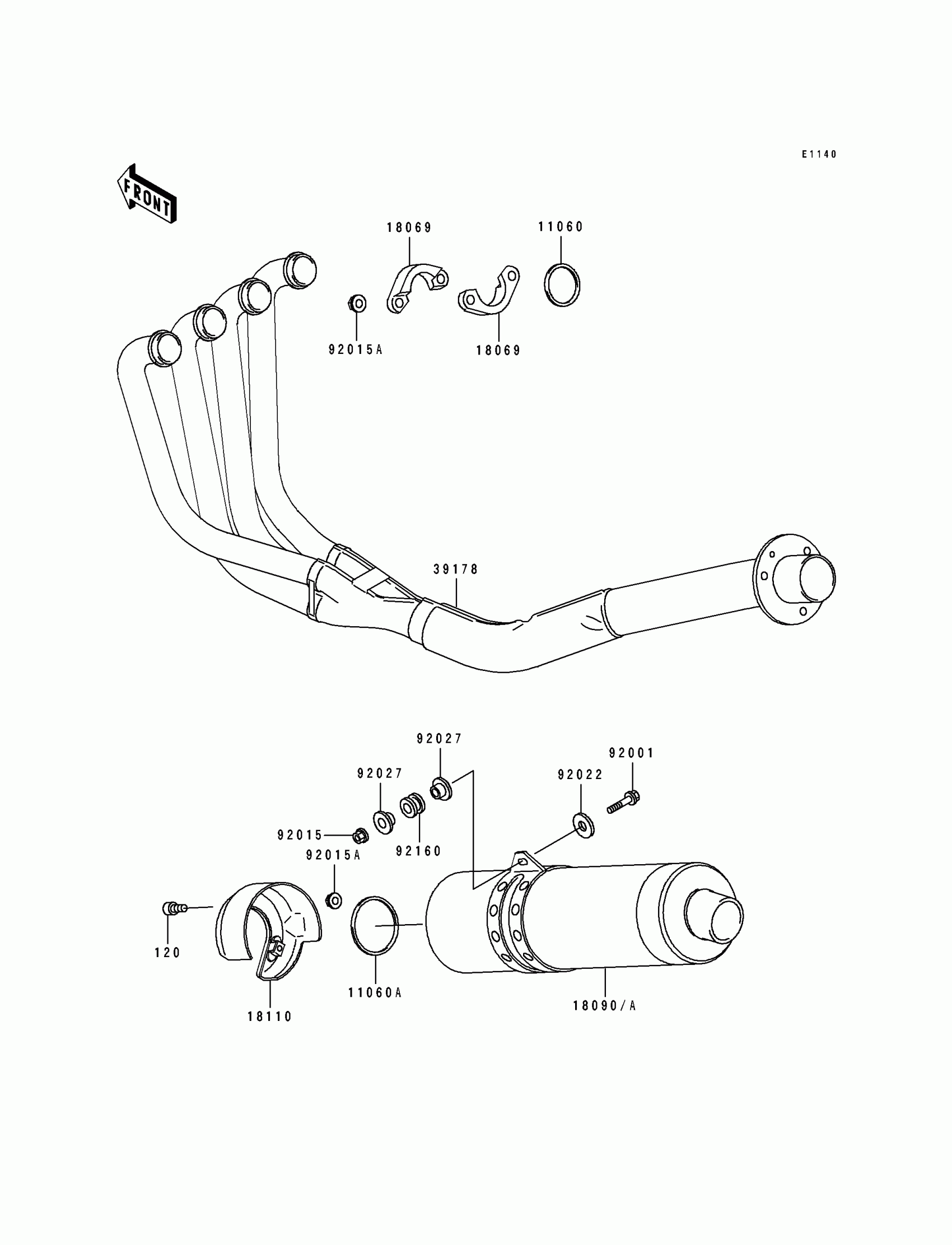

Kawasaki Ninja® ZX™-7R Muffler(s) Diagram

Description

Price

11060

GASKET,EXHAUST PIPE HOLDER

11060-1103

$7.88

11060A

GASKET,MUFFLER CONNECTING

11060-1213

$23.26

18069

HOLDER-EXHAUST PIPE

18069-1072

$25.20

18090

BODY-COMP-MUFFLER

18090-1223

Unavailable

18110

BODY END-MUFFLER

18110-1056

$29.63

39178

MANIFOLD-COMP-EXHAUST

39178-1215

$1,107.54

92001

BOLT,FLANGED,8X35

92001-1910

$6.57

92015

NUT,8MM

92015-1143

$0.65

92015A

NUT,LOCK,8MM

92015-1380

$4.34

92022

WASHER,8.5X19X1.2

92022-3730

$4.31

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

$10.28

92160

DAMPER,MUFFLER MOUNT

92160-1116

$5.52

120

BOLT-SOCKET,6X10

120P0610

$1.60
