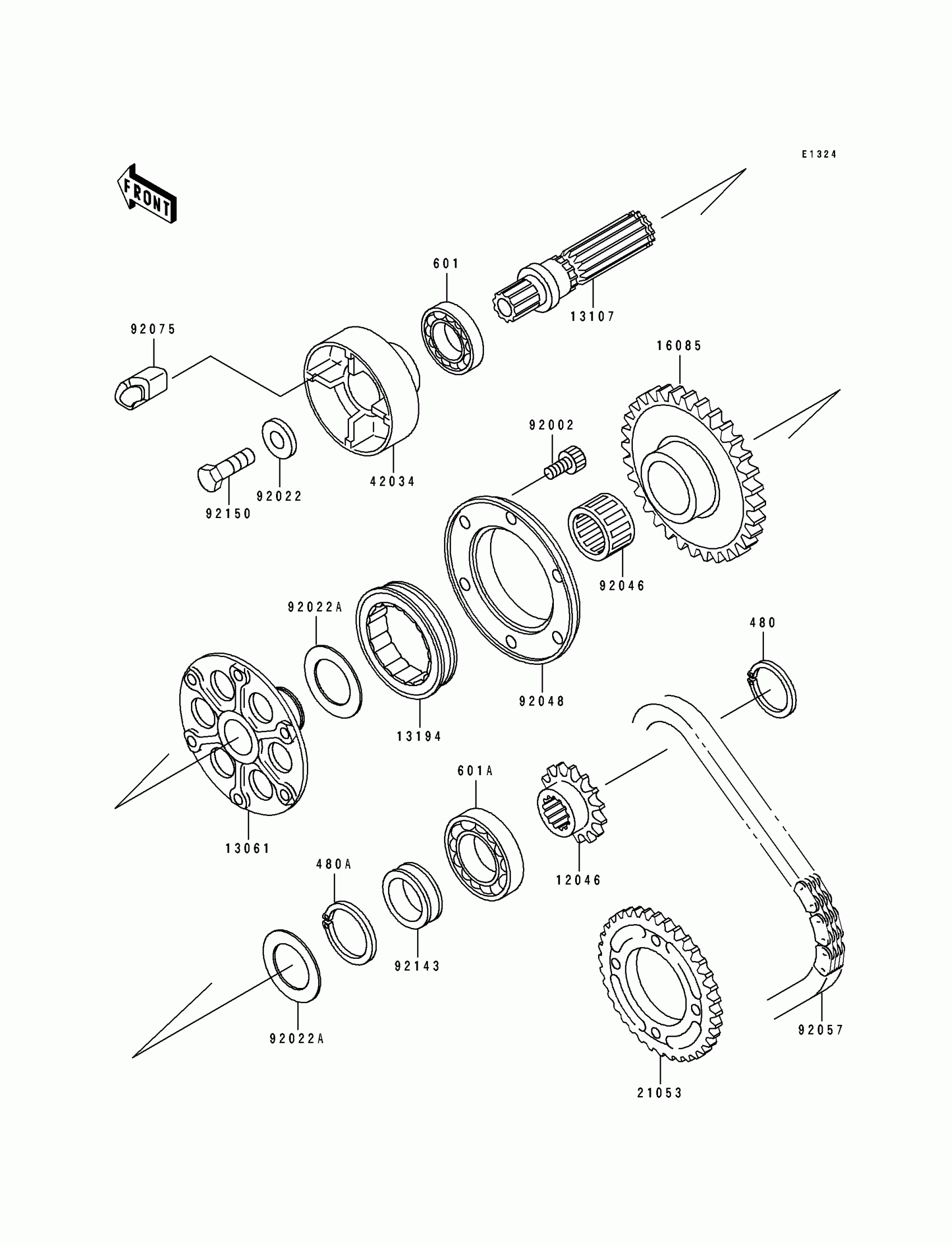

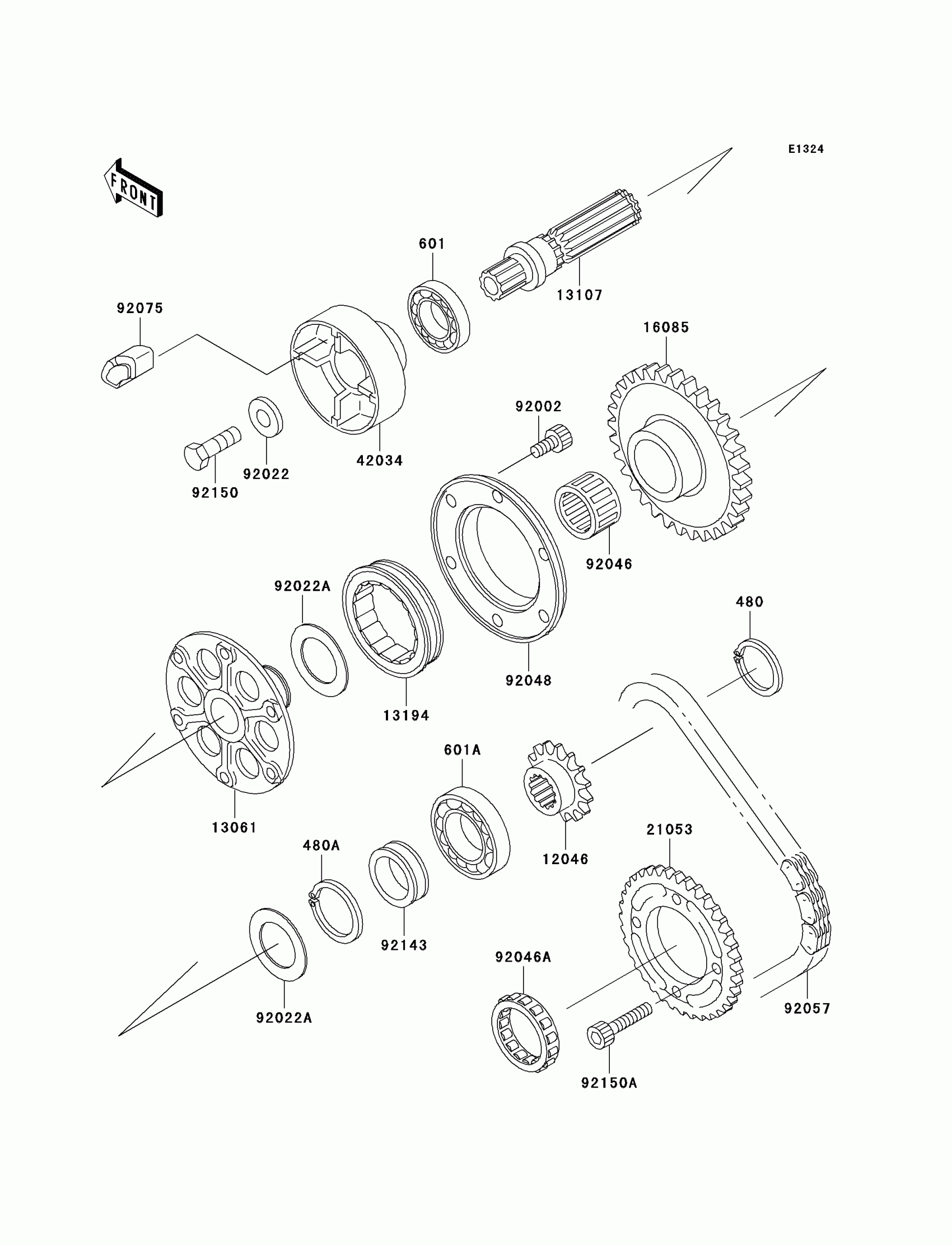

Kawasaki Ninja® ZX™-7R Generator Shaft Diagram

Description

Price

12046

SPROCKET,DRIVEN,GENERATOR

12046-1127

$44.17

13061

BOSS,ONEWAY CLUTCH

13061-1197

$120.79

13107

SHAFT,ONEWAY CLUTCH

13107-1277

$187.83

13194

CLUTCH-ONEWAY

13194-1081

Unavailable

16085

GEAR,ONEWAY CLUTCH

16085-1173

$118.87

21053

SPROCKET-ASSY,DRIVE,GENERATOR

21053-1058

Unavailable

42034

COUPLING

42034-1055

$83.37

92002

BOLT,SOCKET,6X12

92002-1796

$4.69

92022

WASHER,8X22X3

92022-1518

$4.43

92022A

WASHER,25.3X32X0.5

92022-225

$5.52

92046

BEARING-NEEDLE,K253020S

92046-1022

$22.97

92048

RACE,ONEWAY CLUTCH

92048-1068

$64.06

92057

CHAIN,GENERATOR,81RH2515M

92057-1322

$99.08

92075

DAMPER,COUPLING

92075-1790

$9.59

92143

COLLAR

92143-1466

$22.14

92150

BOLT,8X20

92150-1488

$8.66

480

CIRCLIP-TYPE-C,20MM

480J2000

$2.71

480A

CIRCLIP-TYPE-C,25MM

480J2500

$2.03

601

BEARING-BALL,#6203

601A6203

$14.12

601A

BEARING-BALL,#6204C3

601B6204

$13.65
