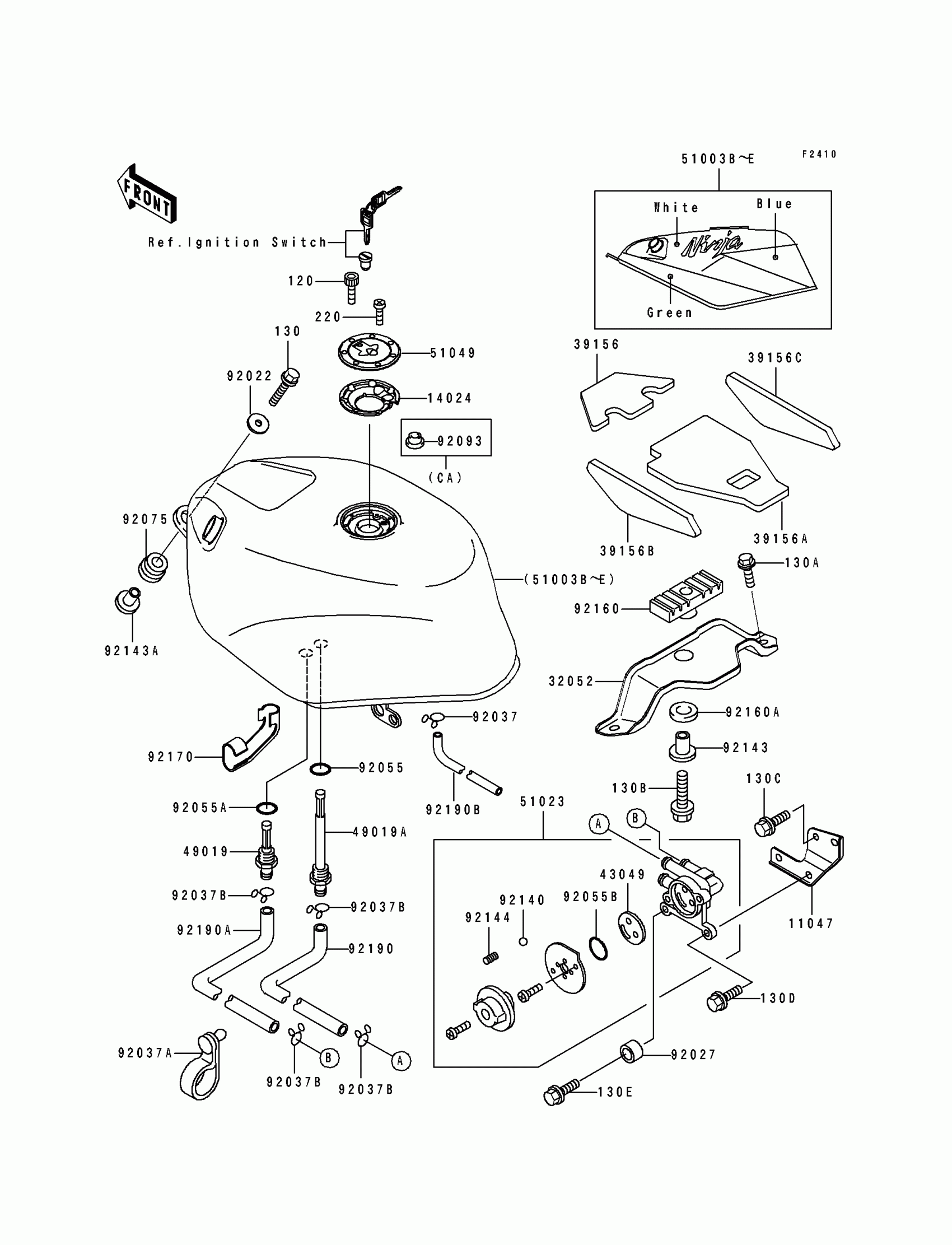

Kawasaki Ninja® ZX™-7R Fuel Tank Diagram

#

Description
Price

11047

BRACKET,FUEL TAP

11047-1268

Unavailable

14024

COVER,TANK CAP

14025-1913

$17.42

32052

BRACKET-TANK,RR

32052-1323

$44.71

39156

PAD,FUEL TANK,FR

39156-1248

Unavailable

39156A

PAD,FUEL TANK,CNT

39156-1249

Unavailable

39156B

PAD,FUEL TANK,SIDE,LH

39156-1250

Unavailable

39156C

PAD,FUEL TANK,SIDE,RH

39156-1251

Unavailable

43049

PACKING,TAP VALVE

43049-1066

$5.54

49019

FILTER-FUEL

49019-1070

$13.93

49019A

FILTER-FUEL,"ON"

49019-1071

$14.10

51003B

TANK-COMP-FUEL,GREEN/WHITE/BLU

51003-5258-KE

$2,514.11

51003C

TANK-COMP-FUEL,GREEN/WHITE/BLU

51003-5259-KE

$3,218.62

51023

TAP-ASSY,FUEL

51023-1172

Unavailable

51049

CAP-TANK,FUEL

51049-1091

$117.85

92022

WASHER,6.5X20X1.6

92022-125

$1.08

92027

COLLAR

92027-103

$2.39

92037

CLAMP,TUBE

92037-147

$5.61

92037A

CLAMP,SPEED,L=80.5

92037-1903

$5.99

92037B

CLAMP,TUBE

92037-1972

$3.29

92055

RING-O,ID=9.5

92055-1386

$2.99

92055A

RING-O,11.5X1.5

92055-1387

$2.99

92055B

RING-O,TAP LEVER

92055-1419

$3.81

92075

DAMPER RUBBER

92075-112

$3.43

92093

SEAL,FUEL TANK CAP

92093-1030

$5.93

92140

BALL,STAINLESS,5/32"

92140-1051

$4.32

92143

COLLAR

92143-1484

$4.93

92143A

COLLAR

92143-1515

$16.82

92144

SPRING,FUEL TAP KNOB

92144-1212

$3.98

92160

DAMPER,FUEL TANK,RR

92160-1271

Unavailable

92160A

DAMPER,FUEL TANK,RR

92160-1277

$4.24

92170

CLAMP,TUBE

92170-1282

Unavailable

92190

TUBE,FUEL,"ON"

92190-1192

$35.57

92190A

TUBE,FUEL,"RES"

92190-1193

Unavailable

92190B

TUBE,DRAIN

92190-1260

$29.51

120

BOLT-SOCKET,5X12

120S0512

Unavailable

130

BOLT-FLANGED,6X30

130G0630

Unavailable

130A

BOLT-FLANGED,8X20

130H0820

Unavailable

130B

BOLT-FLANGED,8X30

130H0830

Unavailable

130C

BOLT-FLANGED,6X8

130J0608

Unavailable

130D

BOLT-FLANGED,6X16,BLACK

130J0616

Unavailable

130E

BOLT-FLANGED,6X25

130J0625

Unavailable

220

SCREW-PAN-CROSS

220C0508

Unavailable
