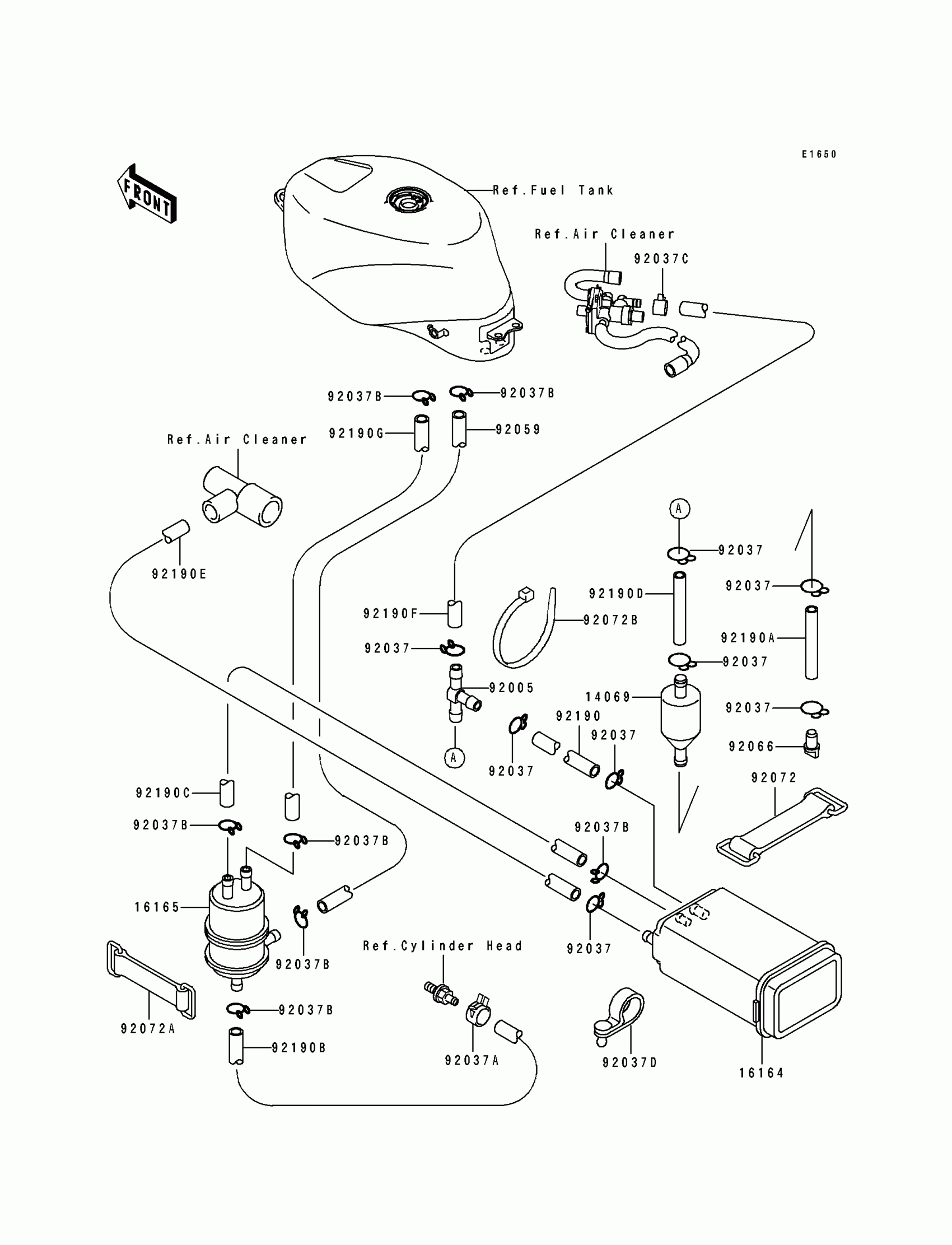

Kawasaki Ninja® ZX™-7R Fuel Evaporative System Diagram

Description

Price

14069

BREATHER

14069-1051

$10.19

16164

CANISTER

16164-1064

$145.44

16165

SEPARATOR

16165-1001

$90.01

92005

FITTING,T-TYPE

92005-1119

$24.61

92037

CLAMP-HOSE

92037-1104

$1.45

92037A

CLAMP,TUBE

92037-1461

$3.88

92037B

CLAMP,TUBE

92037-147

$7.34

92037C

CLAMP

92037-1861

$9.21

92037D

CLAMP,SPEED,L=80.5

92037-1903

$7.84

92059

TUBE,5X10X230,RED

92059-1497

$23.01

92066

PLUG,DRAIN

92066-1211

$8.51

92072

BAND,L=142.1

92072-006

$12.76

92072A

BAND,L=50

92072-066

$16.08

92072B

BAND,L=202

92072-1195

$1.56

92190

TUBE,7X12X840,YELLOW

92190-1176

$41.13

92190A

TUBE,7X12X160

92190-1201

$12.96

92190B

TUBE,5X10X438,WHITE

92190-1216

$18.05

92190C

TUBE,5X10X668,BLUE

92190-1228

$18.66

92190D

TUBE,7X12X110

92190-1242

$12.96

92190E

TUBE,7X12X1130,GREEN

92190-1251

$41.13

92190F

TUBE,L=440,YELLOW

92190-1338

$15.31

92190G

TUBE

92190-1412

$5.54
