Description

Price

41080

DISC,FR,GRAY

41080-1351-FF

$426.87

43020

PISTON-COMP-BRAKE

43020-1085

$53.59

43020A

PISTON-COMP-BRAKE

43020-1086

$74.26

43041

CALIPER-ASSY,FR,LH,M.F.GRAY

43041-1499-FE

$511.69

43041A

CALIPER-ASSY,FR,RH,M.F.GRAY

43041-1500-FE

$511.69

43045

SHAFT-CALIPER

43045-007

$6.51

43049

PACKING,SEAL,6.5X11.5X2.2

43049-1004

$6.16

43049A

PACKING,PISTON SEAL

43049-1054

$12.42

43049B

PACKING,PISTON

43049-1055

$11.29

43049C

PACKING,PISTON SEAL

43049-1056

$13.10

43049D

PACKING,PISTON

43049-1057

$12.65

43056

BREATHER

43056-003

$24.57

43056A

BREATHER-BRAKE

43056-1054

$24.57

43057

CAP-BREATHER

43057-003

$2.45

43082

PAD-ASSY-BRAKE

43082-1142

$63.94

43084

CLAMP,PAD

43084-003

$4.31

92001

BOLT,DISC PLATE,8X30

92001-1951

$4.69

92009

SCREW,4X6

92009-1569

$2.78

92144

SPRING

92144-1399

$30.84

92144A

SPRING,FR CALIPER,RH

92144-1400

$25.29

92150

BOLT,SOCKET,10X37

92150-1261

$11.13

92150A

BOLT,SOCKET,8X40

92150-1272

$6.15

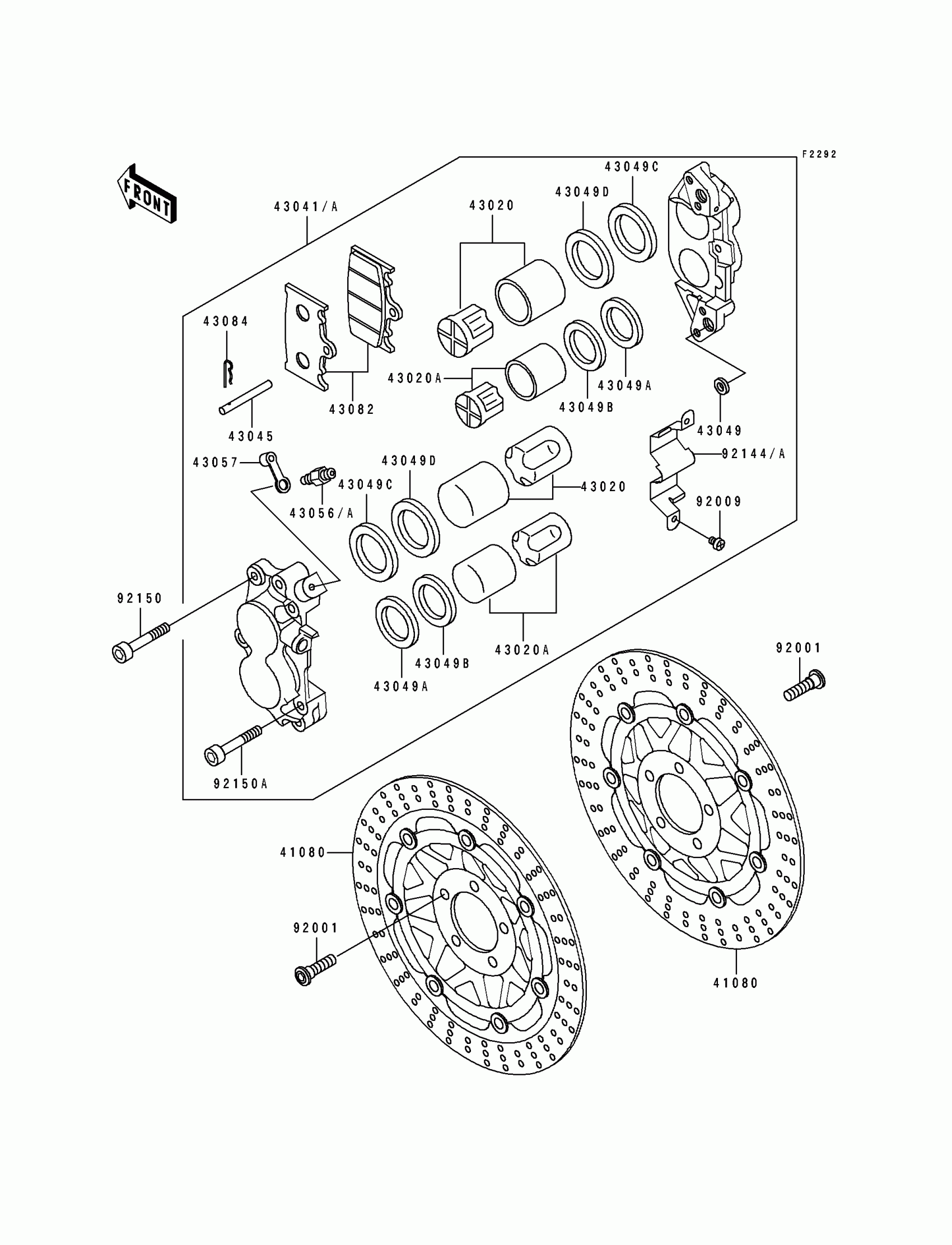

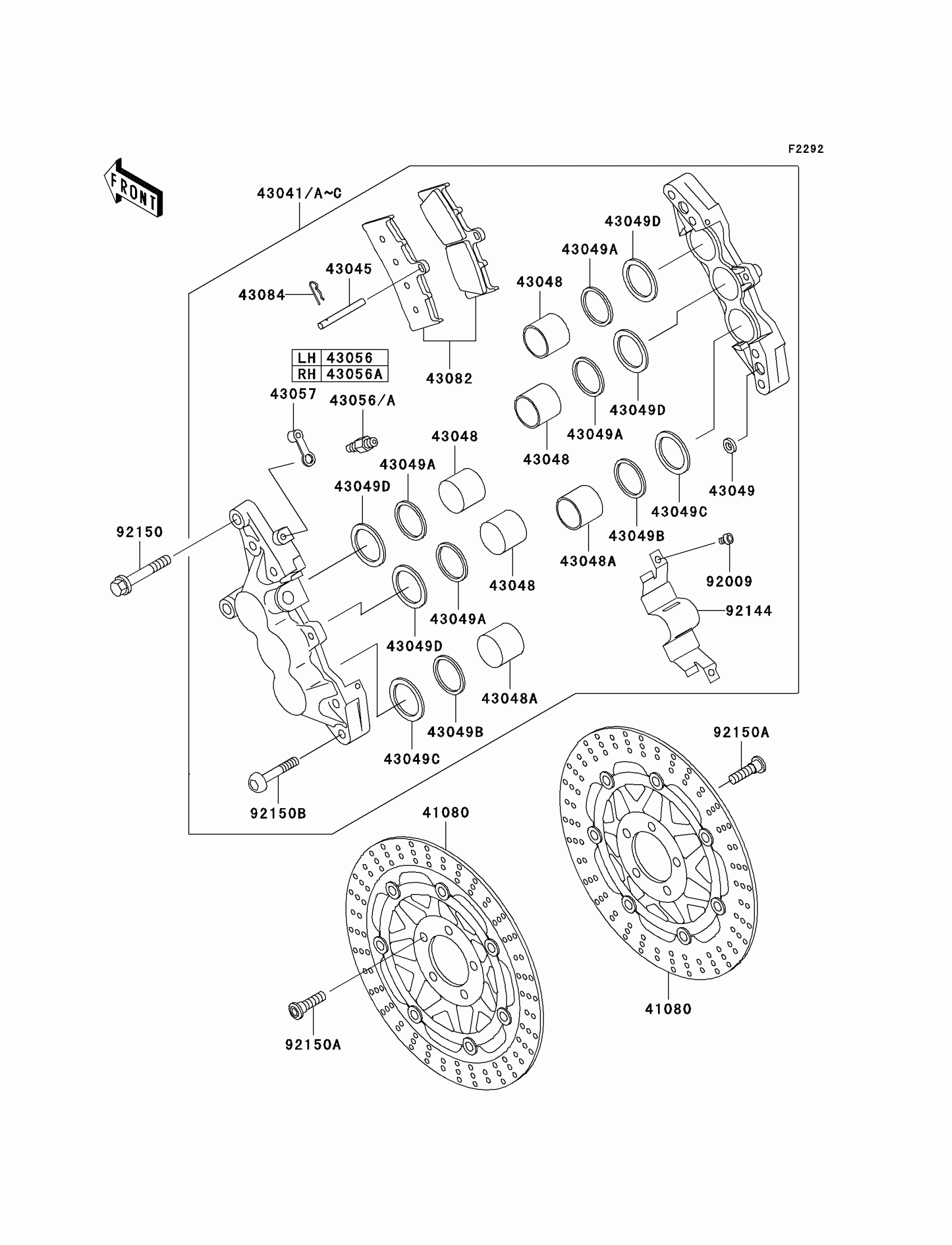

Kawasaki Ninja® ZX™-7R Front Brake Diagram

DISC,FR,GRAY

PISTON-COMP-BRAKE

PISTON-COMP-BRAKE

CALIPER-ASSY,FR,LH,M.F.GRAY

CALIPER-ASSY,FR,RH,M.F.GRAY

SHAFT-CALIPER

PACKING,SEAL,6.5X11.5X2.2

PACKING,PISTON SEAL

PACKING,PISTON

PACKING,PISTON SEAL

PACKING,PISTON

BREATHER

BREATHER-BRAKE

CAP-BREATHER

PAD-ASSY-BRAKE

CLAMP,PAD

BOLT,DISC PLATE,8X30

SCREW,4X6

SPRING

SPRING,FR CALIPER,RH

BOLT,SOCKET,10X37

BOLT,SOCKET,8X40
