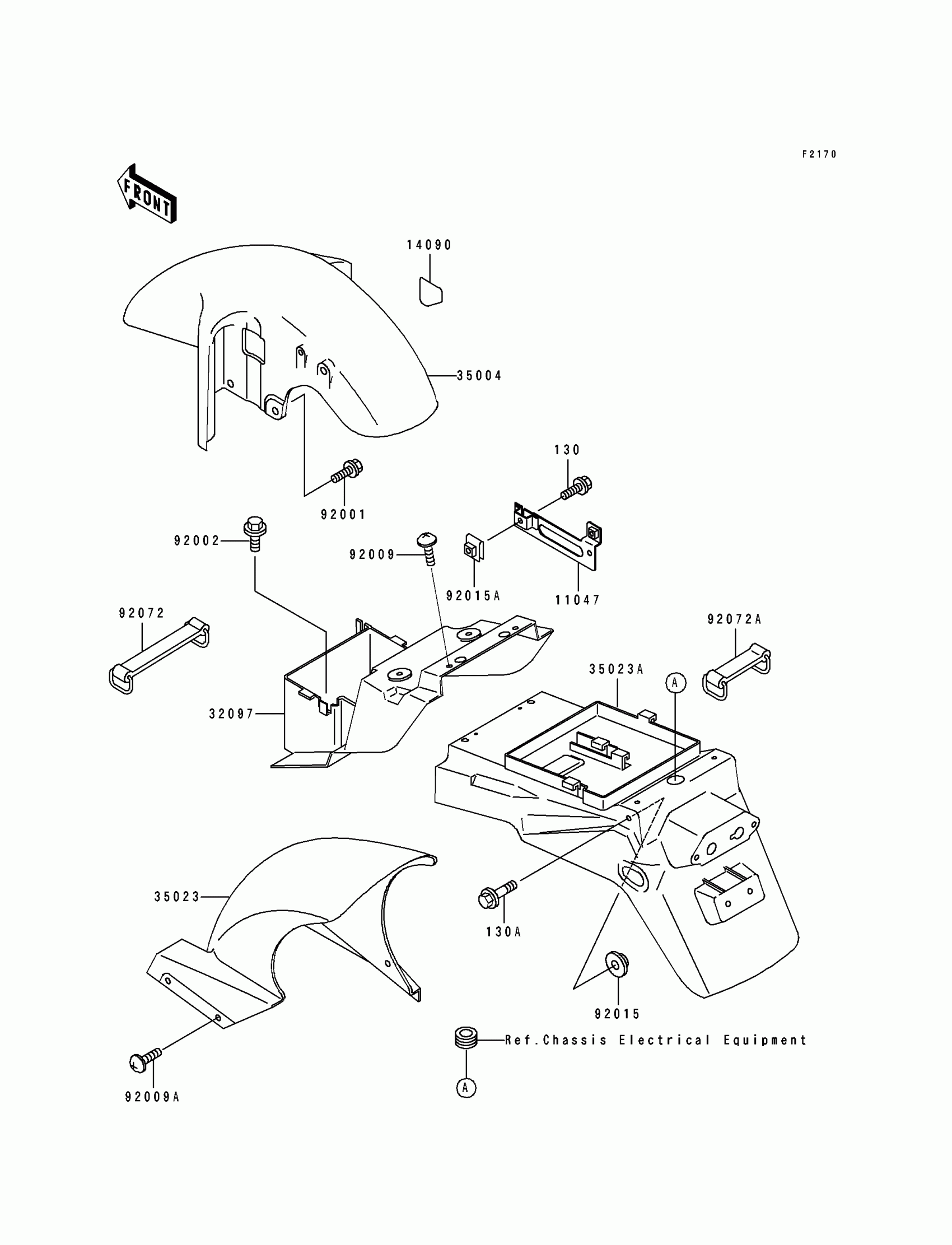

Kawasaki Ninja® ZX™-7R Fenders Diagram

Description

Price

11047

BRACKET,ELECTRIC BASE

11047-1846

Unavailable

14090

COVER,FRONT FENDER

14090-1151

Unavailable

32097

CASE-BATTERY

32097-1140

Unavailable

35004

FENDER-FRONT,L.GREEN

35004-1316-7F

$241.75

35023

FENDER-REAR,FR

35023-1309

Unavailable

35023A

FENDER-REAR,RR

35023-1314

Unavailable

92001

BOLT,W/SP,6X16

92001-1763

$3.43

92002

BOLT,UPSET-WP,6X12

92002-1884

$3.68

92009

SCREW,6X20

92009-1289

$3.29

92009A

SCREW,6X10

92009-1402

$1.73

92015

NUT,6MM

92015-1321

$11.86

92015A

NUT,CLAMP,6MM

92015-1531

$4.18

92072

BAND,L=142.1

92072-006

$9.70

92072A

BAND,TOOL,L=82

92072-1294

$14.14

130

BOLT-FLANGED,6X14,BLACK

130J0614

Unavailable

130A

BOLT-FLANGED,6X40

130J0640

Unavailable
