Description

Price

11012

CAP

11012-1725

$4.37

11047

BRACKET,UPP COWLING

11047-1270

Unavailable

11047A

BRACKET,MIRROR,BLACK

11047-1271-10

Unavailable

14073

DUCT,AIR INTAKE

14073-1463

Unavailable

14090

COVER,INNER COWLING,LH

14090-1060

Unavailable

14090A

COVER,INNER COWLING,RH

14090-1061

Unavailable

14090B

COVER,RADIATOR,LH

14090-1090

Unavailable

14090C

COVER,RADIATOR,RH

14090-1091

Unavailable

14090D

COVER,INNER COWLING,LH

14090-1094

Unavailable

14090E

COVER,INNER COWLING,RH

14090-1095

Unavailable

39154

WINDSHIELD

39154-1116

Unavailable

53044

TRIM,L=150

53044-1248

Unavailable

55049

COWLING.,UPP,GREEN/WHITE

55049-5018-CK

Unavailable

56001

MIRROR-ASSY,LH,P.WHITE

56001-1376-6F

$94.15

56001A

MIRROR-ASSY,RH,P.WHITE

56001-1377-6F

$94.15

92002

BOLT,8X35

92002-1198

$5.23

92009

SCREW,6X10

92009-1402

$2.41

92009A

SCREW,6X14

92009-1555

$3.52

92009B

SCREW,5X16,BLACK

92009-1654

$3.13

92009C

SCREW,5X20,BLACK

92009-1656

$3.96

92015

NUT,CAP,6MM,BLACK

92015-1170

$0.64

92015A

NUT,CAP,8MM,BLACK

92015-1174

$5.00

92015B

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,NYLON,5.3X11.5X1.5

92022-1521

$3.92

92072

BAND,RESERVOIR TANK

92072-1091

$22.07

92143

COLLAR

92143-1026

$6.52

92160

DAMPER,MIRROR

92160-1089

$7.29

92160A

DAMPER

92160-1141

$4.69

130

BOLT-FLANGED,6X16,BLACK

130J0616

$1.92

220

SCREW-PAN-CROS,5X16,BLACK

220C0516

$1.71

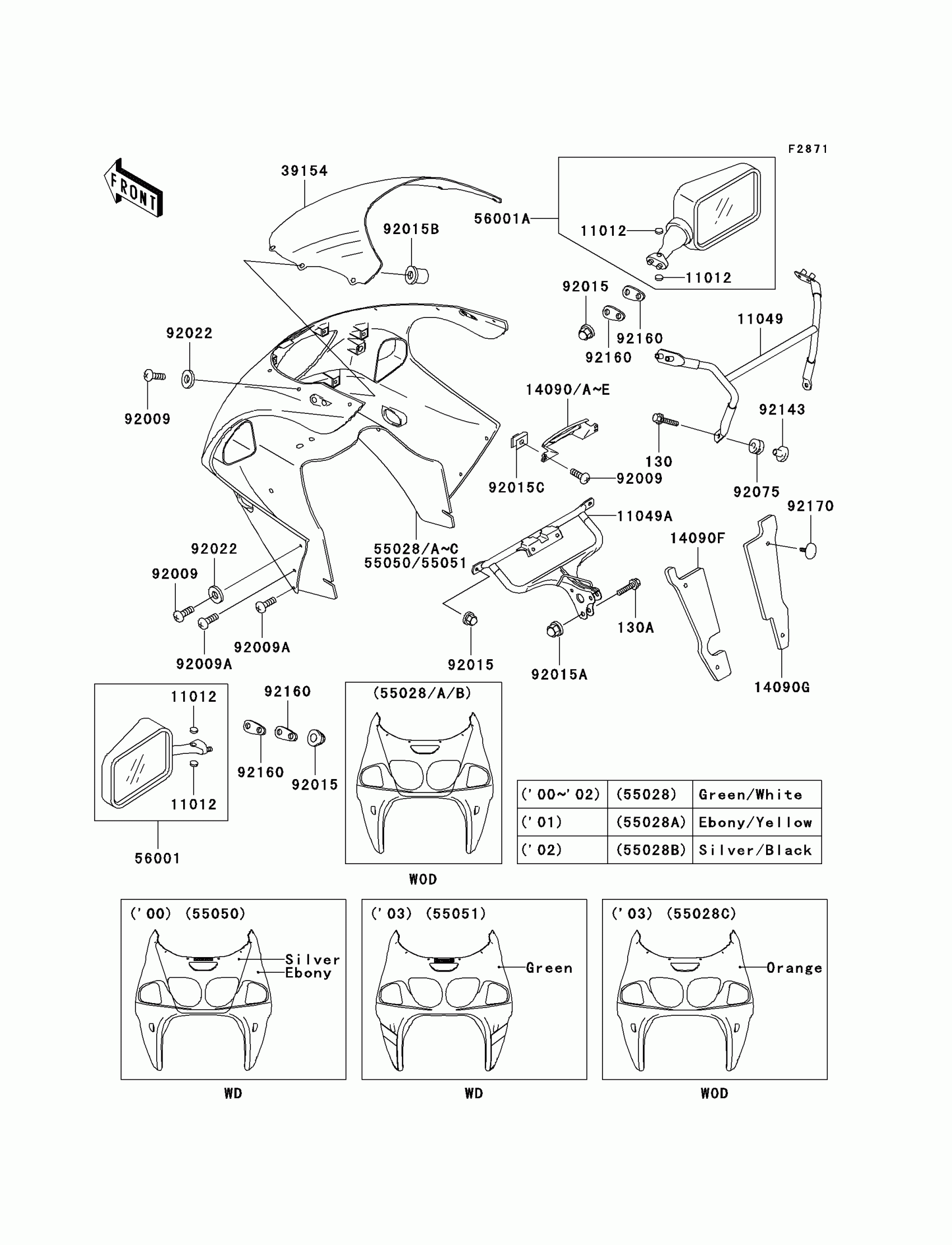

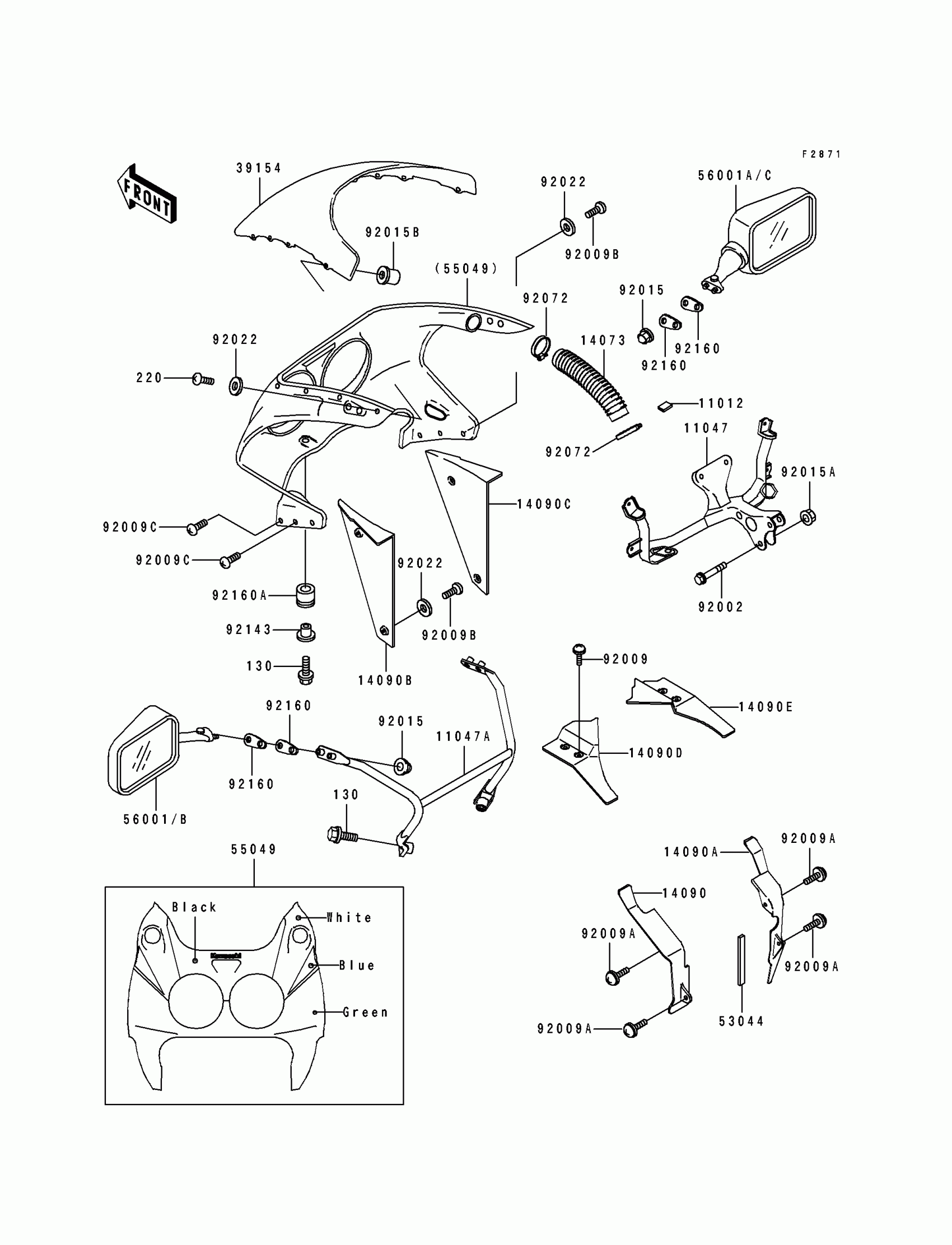

Kawasaki Ninja® ZX™-7R Cowling Diagram

CAP

BRACKET,UPP COWLING

BRACKET,MIRROR,BLACK

DUCT,AIR INTAKE

COVER,INNER COWLING,LH

COVER,INNER COWLING,RH

COVER,RADIATOR,LH

COVER,RADIATOR,RH

COVER,INNER COWLING,LH

COVER,INNER COWLING,RH

WINDSHIELD

TRIM,L=150

COWLING.,UPP,GREEN/WHITE

MIRROR-ASSY,LH,P.WHITE

MIRROR-ASSY,RH,P.WHITE

BOLT,8X35

SCREW,6X10

SCREW,6X14

SCREW,5X16,BLACK

SCREW,5X20,BLACK

NUT,CAP,6MM,BLACK

NUT,CAP,8MM,BLACK

NUT,WELL,5MM

WASHER,NYLON,5.3X11.5X1.5

BAND,RESERVOIR TANK

COLLAR

DAMPER,MIRROR

DAMPER

BOLT-FLANGED,6X16,BLACK

SCREW-PAN-CROS,5X16,BLACK
