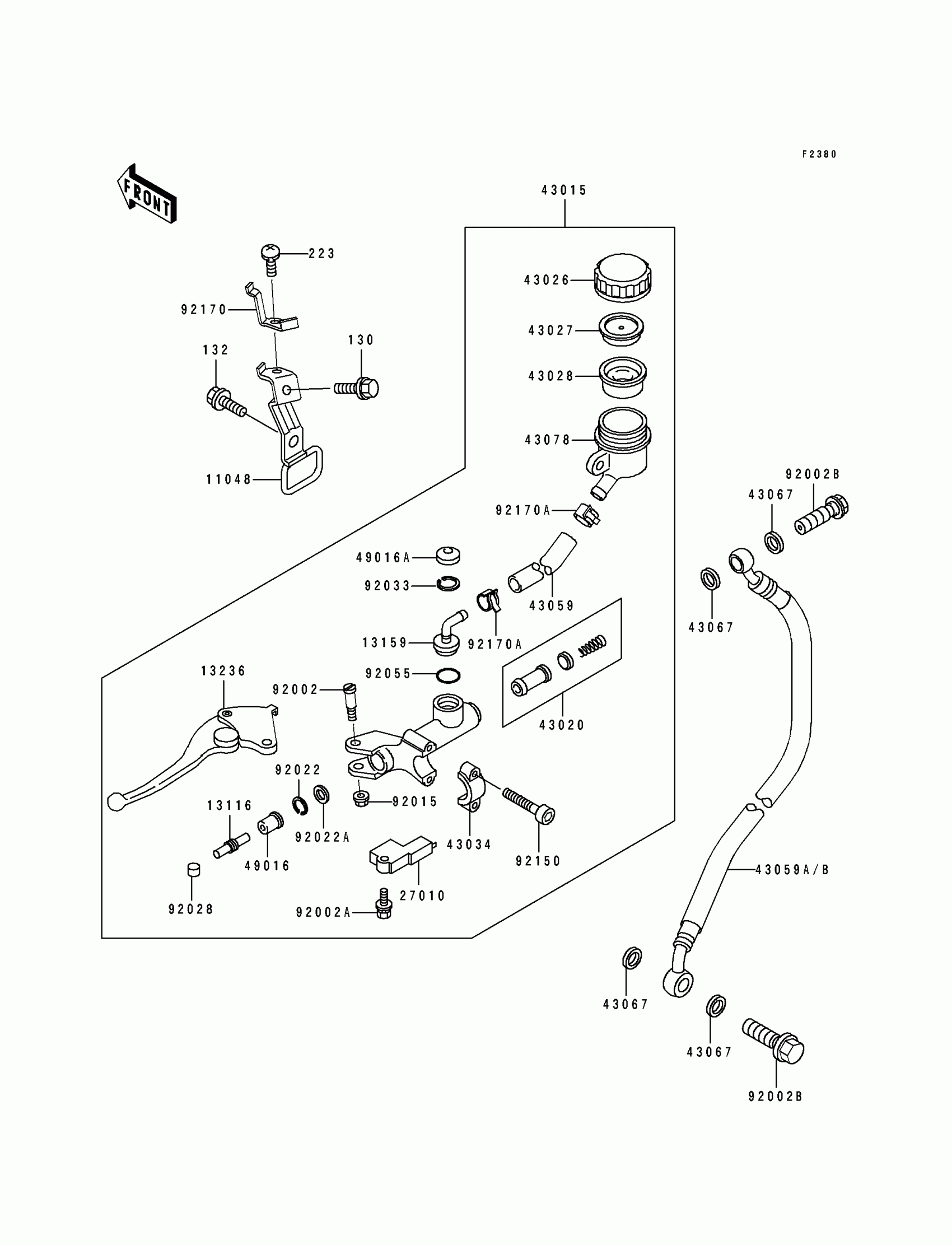

Kawasaki Ninja® ZX™-7R Clutch Master Cylinder Diagram

#

Description
Price

11046

BRACKET,RESERVOIR TANK

11046-1756

$10.74

13116

ROD-PUSH,MASTER CYLINDER

13116-1110

$32.77

13159

CONNECTOR

13159-1061

$12.96

13236

LEVER-COMP,CLUTCH

13236-1186

$55.77

27010

SWITCH,CLUTCH

27010-1171

$36.01

43015

CYLINDER-ASSY-MASTER,CLUTCH

43015-1394

$462.58

43020

PISTON-COMP-BRAKE,CLUTCH

43020-1055

$65.22

43026

CAP-BRAKE

43026-1070

$33.90

43027

PLATE-DIAPHRAGM

43027-1054

$5.67

43028

DIAPHRAGM

43028-1073

$19.45

43034

HOLDER-BRAKE,MASTER CYLINDER

43034-1016

$19.45

43059

HOSE-BRAKE,M/CYLINDER

43059-1548

$19.09

43059A

HOSE-BRAKE,CLUTCH

43059-1676

$134.22

43078

RESERVOIR

43078-1102

$28.25

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

49016A

COVER-SEAL

49016-1147

$6.29

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

SCREW,4X16

92002-1325

$7.99

92002B

BOLT,OIL,L=23

92002-1888

$5.48

92015

NUT,FLANGED,6MM,BLACK

92015-1233

$5.52

92022

WASHER,10.5X15X1.5

43067-001

$2.15

92022A

CIRCLIP

92022-1605

$5.00

92022B

WASHER,PISTON

92022-1606

$4.69

92028

BUSHING,MASTER CYLINDER

92028-1310

$14.76

92033

RING-SNAP,20.5MM

92033-1186

$4.96

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92150

BOLT

92150-1328

$5.00

92170

CLAMP

92170-1087

$7.43

92170A

CLAMP,HOSE

92170-1091

$5.00

130

BOLT-FLANGED,6X14

130H0614

Unavailable

132

BOLT-FLANGED-SMALL,6X12

132J0612

$1.92

223

SCREW-PAN-WS-CROS,4X8

223D0408

$1.28
