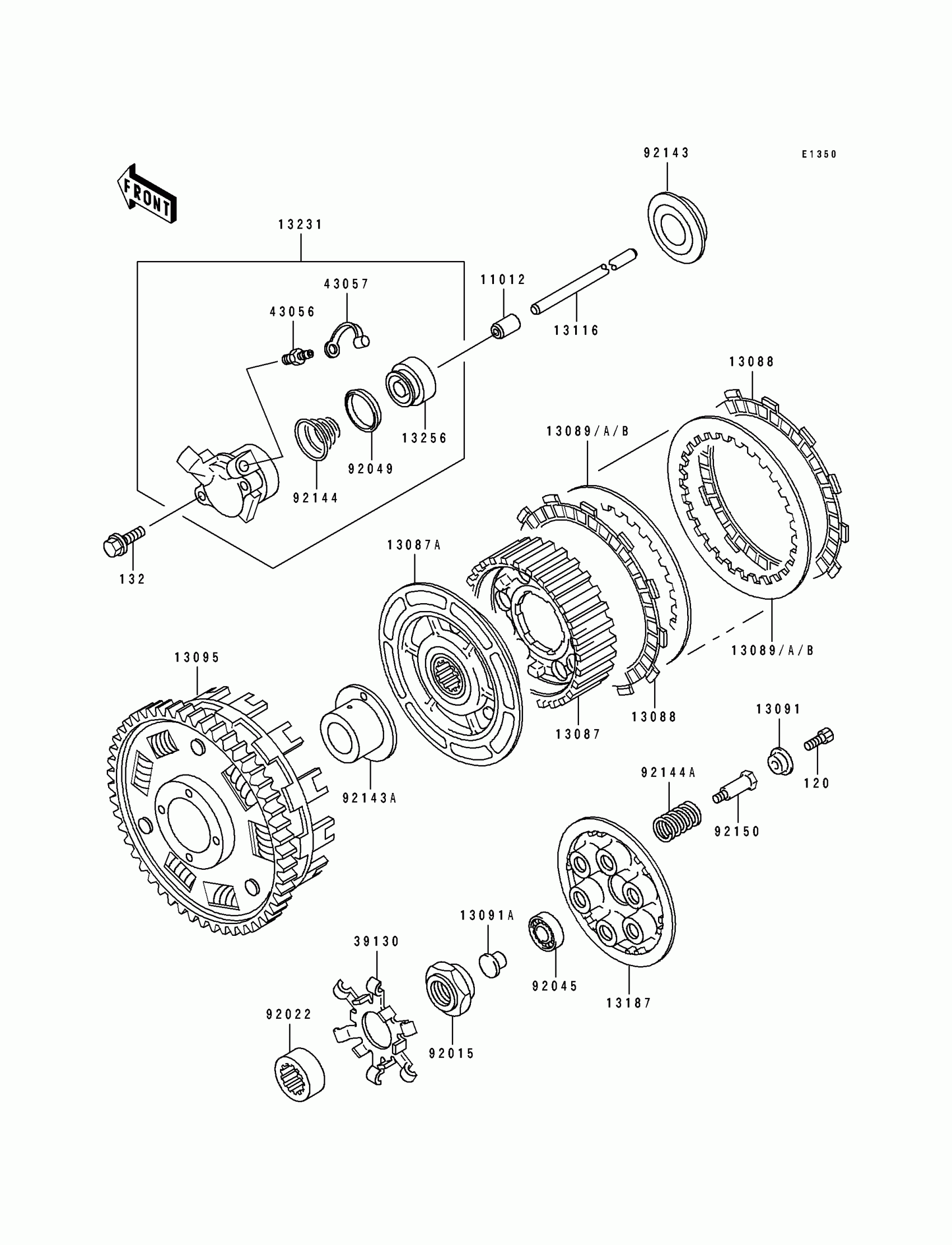

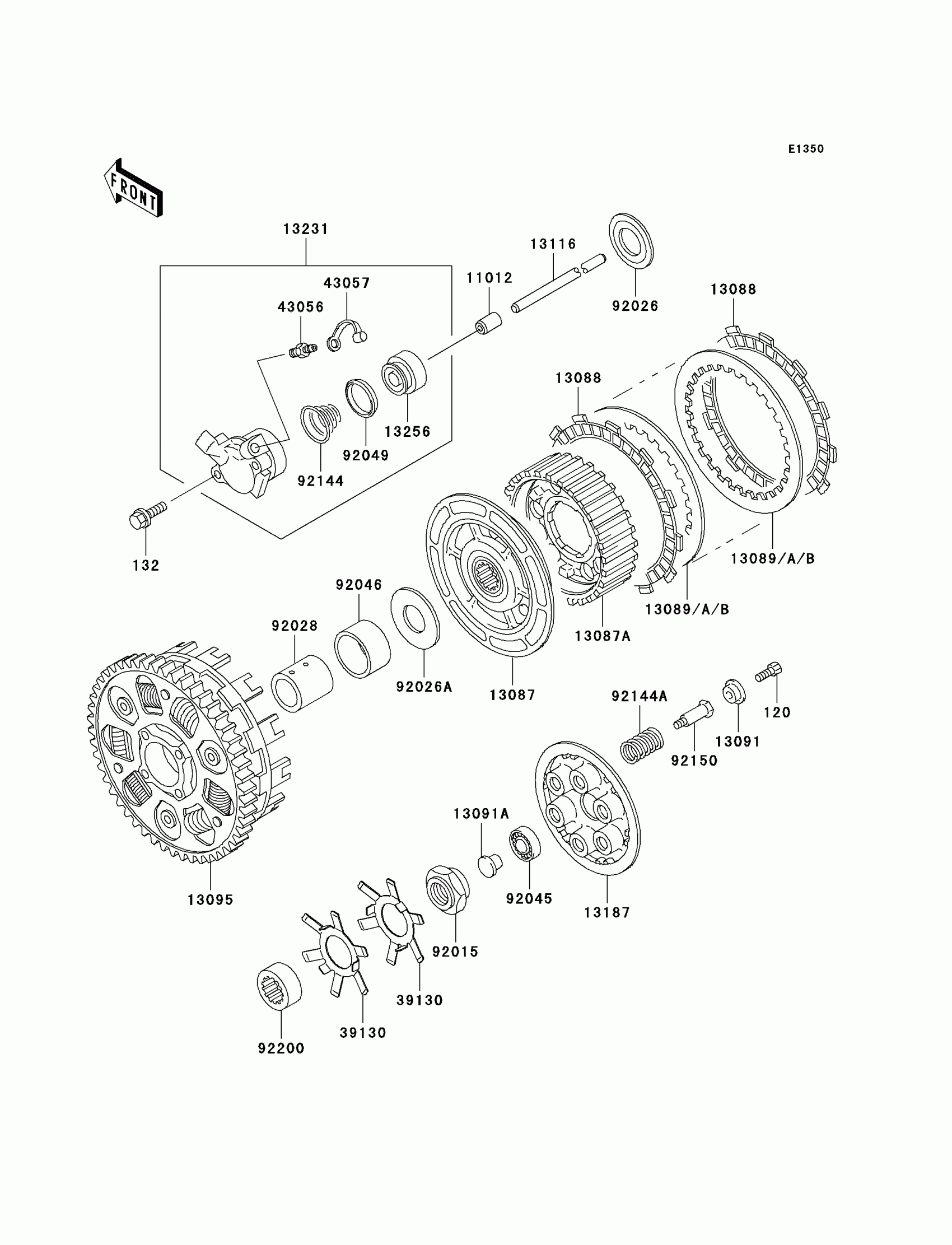

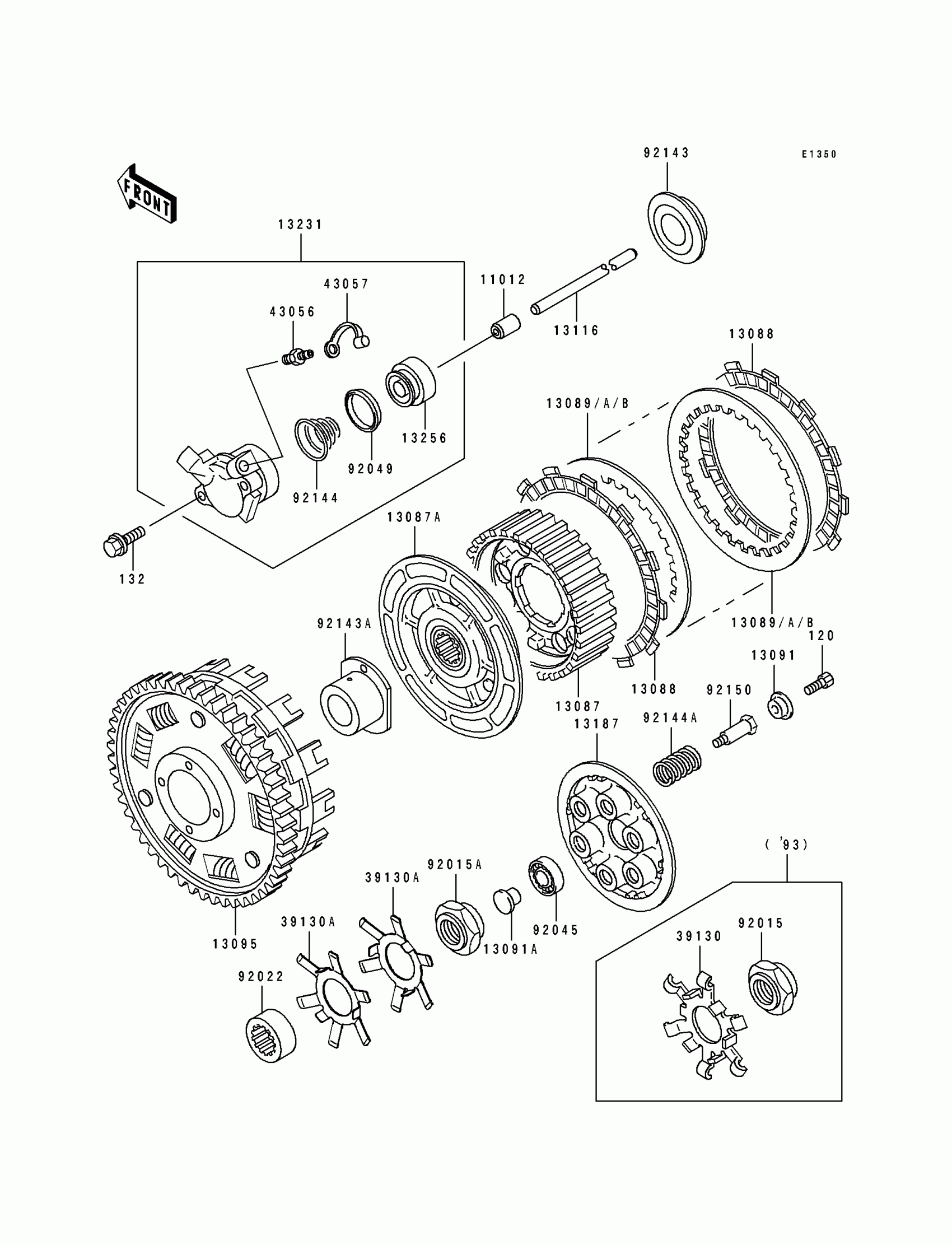

Kawasaki Ninja® ZX™-7R Clutch Diagram
#
Description
Price
11012
CAP,PUSHROD
11012-1569
$8.72
13087
HUB-CLUTCH
13087-1130
Unavailable
13087A
HUB-CLUTCH
13087-1132
Unavailable
13088
PLATE-FRICTION
13088-1087
$20.06
13089
PLATE-CLUTCH,T=2.0
13089-026
Unavailable
13089A
PLATE-CLUTCH,T=2.3
13089-1004
Unavailable
13089B
PLATE-CLUTCH,T=2.6
13089-1067
Unavailable
13091
HOLDER,CLUTCH SPRING
13091-1041
$12.23
13091A
HOLDER,CLUTCH PUSH ROD
13091-1085
$9.80
13095
HOUSING-COMP-CLUTCH
13095-1262
Unavailable
13116
ROD-PUSH
13116-1141
$40.14
13187
PLATE-CLUTCH OPERATING
13187-1067
$90.19
13231
RELEASE-ASSY-CLUTCH
13231-1065
$152.25
13256
PISTON
13256-1052
$59.07
39130A
SPRING-LEAF
39130-1071
$11.06
43056
BREATHER
43056-1052
$14.30
43057
CAP-BREATHER
43057-1001
$4.91
92015A
NUT
92015-1929
$25.27
92022
WASHER,TOOTHED,21.7X36X15.5
92022-1782
Unavailable
92045
BEARING-BALL,6001C3ML01
92045-1235
$16.25
92049
SEAL-OIL,PISTON
92049-1165
$19.64
92143
COLLAR
92143-1468
Unavailable
92143A
COLLAR
92143-1638
$79.73
92144
SPRING,CLUTCH RELEASE
92144-1084
$8.51
92144A
SPRING,CLUTCH
92144-1630
$11.68
92150
BOLT,CLUTCH
92150-1477
$8.10
120
BOLT-SOCKET,6X16
120Q0616
Unavailable
132
BOLT-FLANGED-SMALL,6X25
132J0625
$2.62
