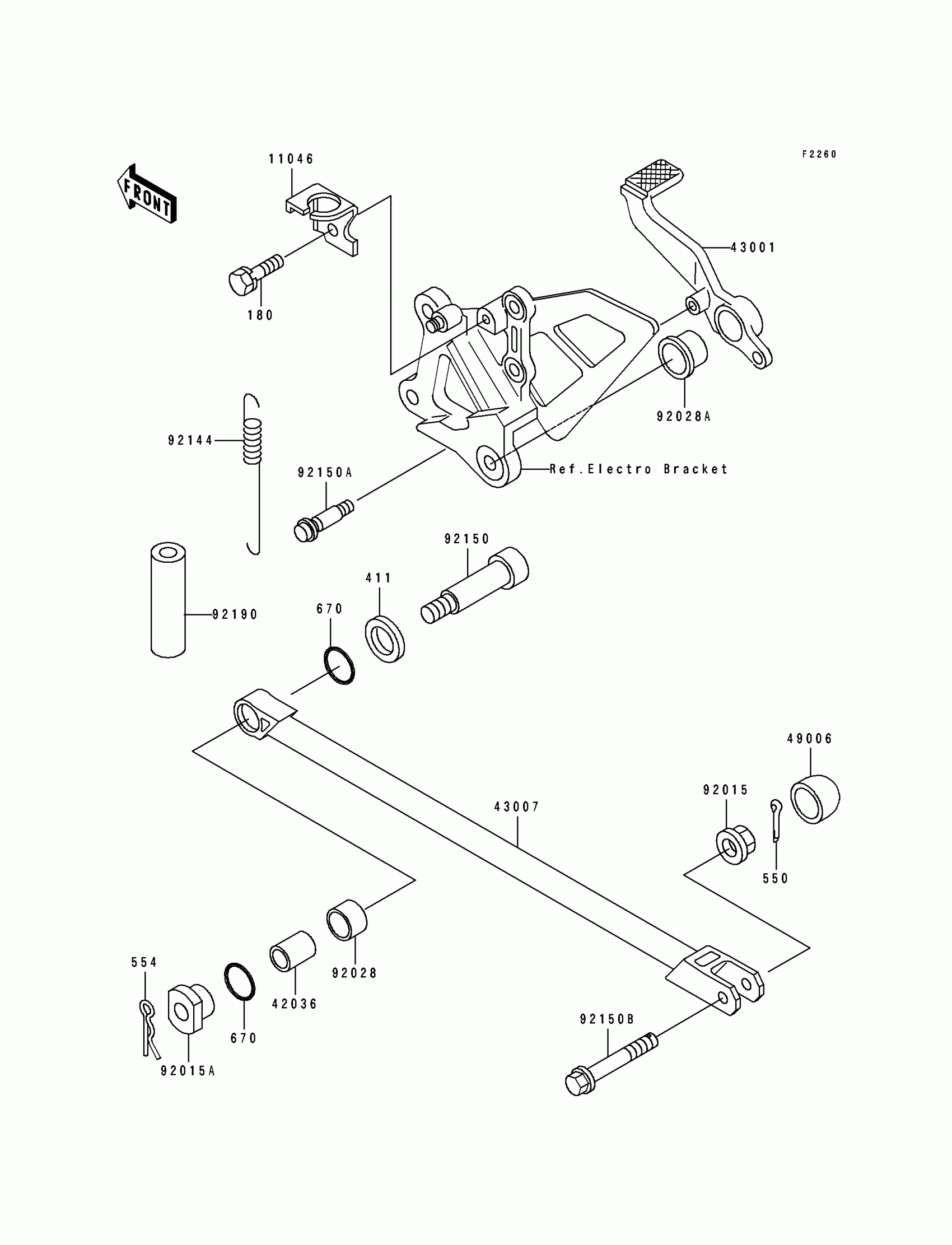

Kawasaki Ninja® ZX™-7R Brake Pedal/Torque Link Diagram

Description

Price

11046

BRACKET,REAR BRAKE SWITCH

11046-1252

Unavailable

42036

SLEEVE,10.1X16X20

42036-1242

$17.92

43001

LEVER-BRAKE,PEDAL

43001-1274

$133.96

43007

ROD-TORQUE,SILVER NO.30

43007-1166-KF

$109.74

49006

BOOT

49006-1218

$5.05

92015

NUT,8MM

92015-1432

$4.93

92015A

NUT,8MM

92015-1747

$17.32

92028

BUSHING

92028-1468

$10.00

92028A

BUSHING

92028-1576

$13.87

92144

SPRING,BRAKE PEDAL RETURN

92144-1421

Unavailable

92150

BOLT,SOCKET,8X61

92150-1167

Unavailable

92150A

BOLT

92150-1439

Unavailable

92150B

BOLT,FLANGED,8X47

92150-1539

Unavailable

92190

TUBE,AIR SWITCH VALVE

92190-1170

Unavailable

180

BOLT-UPSET-WS,6X14

180H0614

Unavailable

411

WASHER-PLAIN,10MM

411D1000

$4.25

550

PIN COTTER 2.0X15

550D2015

Unavailable

554

PIN-SNAP,8MM

554A0800

Unavailable

670

O RING,16MM

670B2016

$1.04
