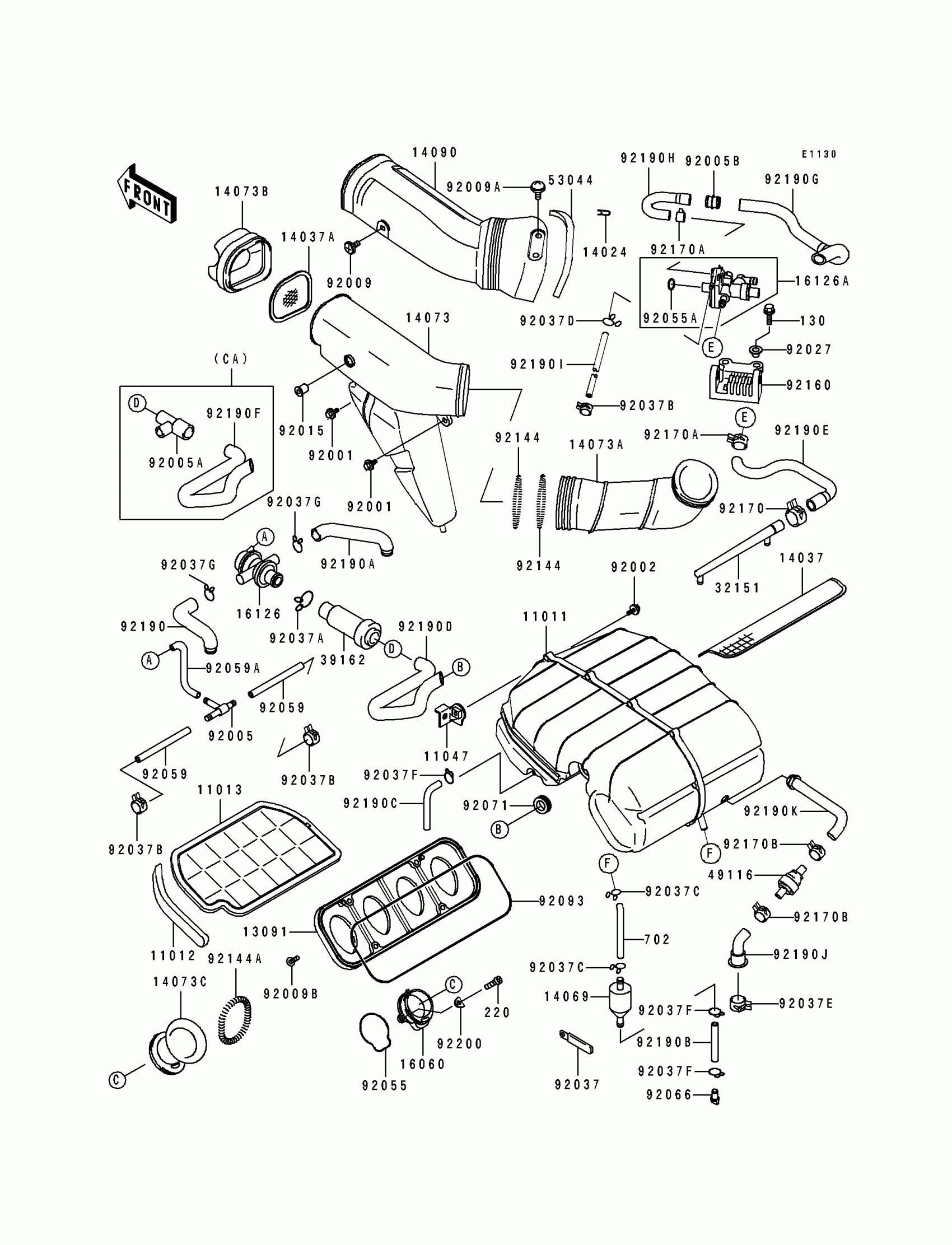

Kawasaki Ninja® ZX™-7R Air Cleaner Diagram

#

Description
Price

11011

CASE-AIR FILTER

11011-1391

Unavailable

11012

CAP,AIR FILTER ELEMENT

11012-1828

Unavailable

11013

ELEMENT-AIR FILTER

11013-1224

$46.23

11047

BRACKET,AIR FILTER

11047-1968

Unavailable

13091

HOLDER,AIR FILTER

13091-1813

Unavailable

14024

COVER,TRIM END

14024-1730

$3.88

14037

SCREEN,AIR FILTER

14037-1161

Unavailable

14037A

SCREEN,AIR DUCT

14037-1162

Unavailable

14069

BREATHER

14069-1051

$7.76

14073

DUCT,AIR INTAKE,CNT

14073-1540

$100.53

14073A

DUCT,AIR INTAKE,RR

14073-1541

Unavailable

14073B

DUCT,AIR INTAKE,FR

14073-1543

Unavailable

14073C

DUCT

14073-1579

$34.75

14090

COVER,AIR DUCT

14090-1250

Unavailable

16060

PIPE-INTAKE

16060-1069

$21.38

16126

VALVE,AIR SWITCH

16126-1104

$197.28

16126A

VALVE,CANISTER

16126-1272

Unavailable

32151

PIPE

32151-1317

Unavailable

39162

SILENCER-INTAKE

39162-1003

$69.57

49116

VALVE-ASSY

49116-1116

Unavailable

53044

TRIM,AIR DUCT COVER

53044-1265

$11.49

92001

BOLT,6X16

92001-1950

$3.29

92002

BOLT,6X16

92002-1136

Unavailable

92005

FITTING,TUBE,T-TYPE

92005-1017

Unavailable

92005A

FITTING,SILENCER

92005-1207

Unavailable

92005B

FITTING

92005-1247

$5.73

92009

SCREW,6X18,BLACK

92009-1181

$1.98

92009A

SCREW,6X10

92009-1402

$1.73

92009B

SCREW,TAPPING,6X25

92009-1640

$4.61

92015

NUT

92015-1700

$6.55

92027

COLLAR

92027-1767

$4.18

92037

CLAMP,WIRING HARNESS,L=60

92037-1069

Unavailable

92037A

CLAMP,TUBE

92037-1076

$7.14

92037B

CLAMP,TUBE

92037-1461

$2.93

92037C

CLAMP,TUBE

92037-147

$5.61

92037D

CLAMP

92037-1712

$3.81

92037E

CLAMP

92037-1730

$8.39

92037F

CLAMP,TUBE

92037-1972

$3.29

92037G

CLAMP,TUBE

92037-213

$3.29

92055

RING-O

92055-1492

$4.50

92055A

RING-O

92055-1524

$4.10

92059

TUBE,FUEL,4X9X140

92059-1230

$14.40

92059A

TUBE,4X9X705,WHITE

92059-1690

$14.40

92066

PLUG,DRAIN

92066-1211

$6.48

92071

GROMMET,AIR FILTER

92071-1028

$5.55

92093

SEAL,AIR FILTER

92093-1320

Unavailable

92144

SPRING,DUCT

92144-1563

$10.05

92144A

SPRING

92144-1564

$11.77

92160

DAMPER,VALVE

92160-1241

$21.97

92170

CLAMP

92170-1060

$7.93

92170A

CLAMP,FUEL PUMP

92170-1185

$5.69

92170B

CLAMP,BRAKE HOSE

92170-1434

$11.81

92190

TUBE,HEAD-AIR SWITCH,LH

92190-1197

Unavailable

92190A

TUBE,HEAD-AIR SWITCH,RH

92190-1198

Unavailable

92190B

TUBE,7X12X160

92190-1201

Unavailable

92190C

TUBE,BREATHER

92190-1243

Unavailable

92190D

TUBE,AIR VALVE,L=347

92190-1329

Unavailable

92190E

TUBE,CARBURETOR,L=260

92190-1336

Unavailable

92190F

TUBE,AIR VALVE,L=309

92190-1337

Unavailable

92190G

TUBE,CARBURETOR,L=309

92190-1373

Unavailable

92190H

TUBE,VALVE,L=134

92190-1384

Unavailable

92190I

TUBE,L=550

92190-1405

$16.29

92190J

TUBE,BREATHER

92190-1482

Unavailable

92190K

TUBE

92190-1483

Unavailable

92200

WASHER,DUCT

92200-1058

$3.55

130

BOLT-FLANGED

130J0620

Unavailable

220

SCREW PAN HEAD 5X8

220B0508

Unavailable

702

TUBE-RUBBER

702A07360

Unavailable
