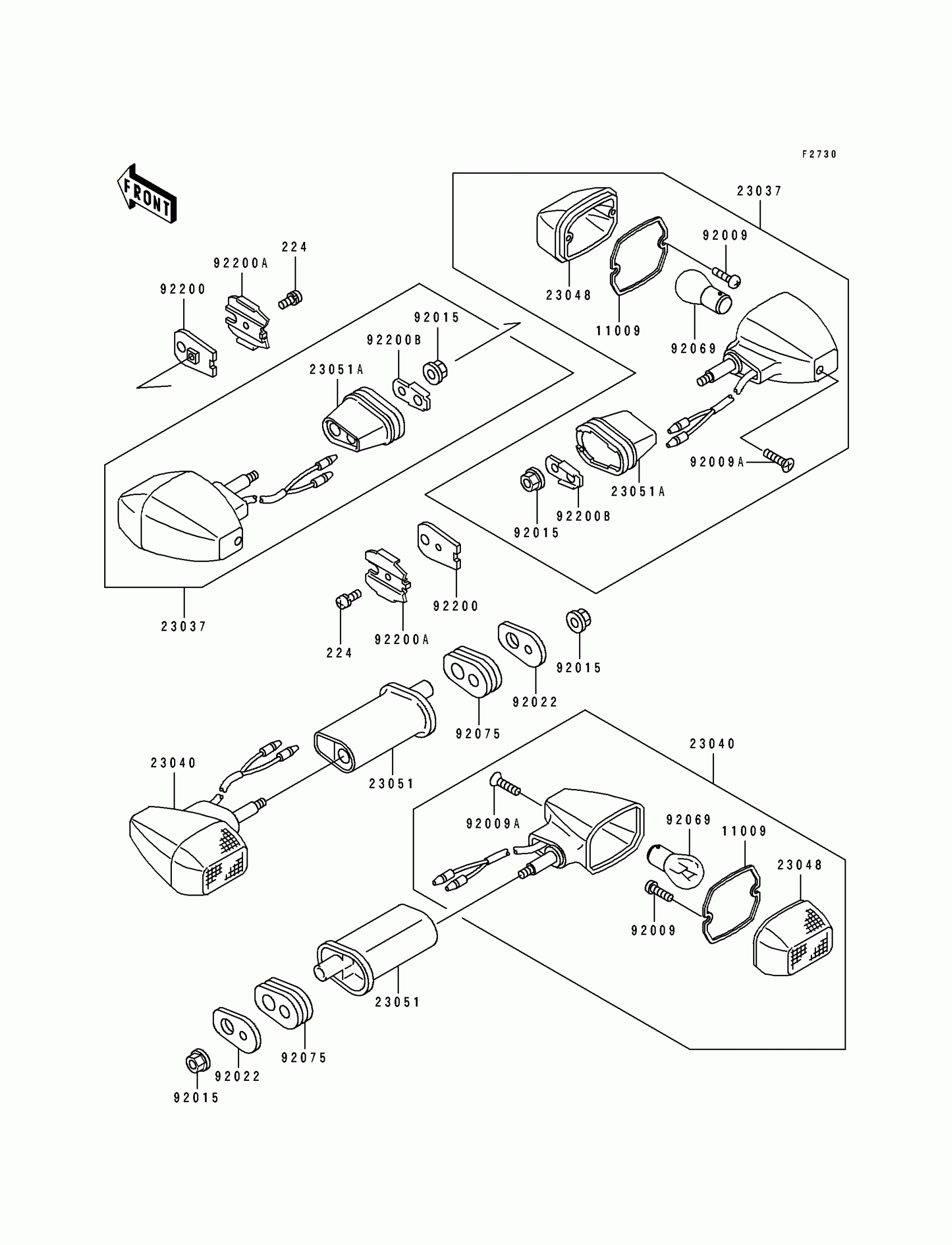

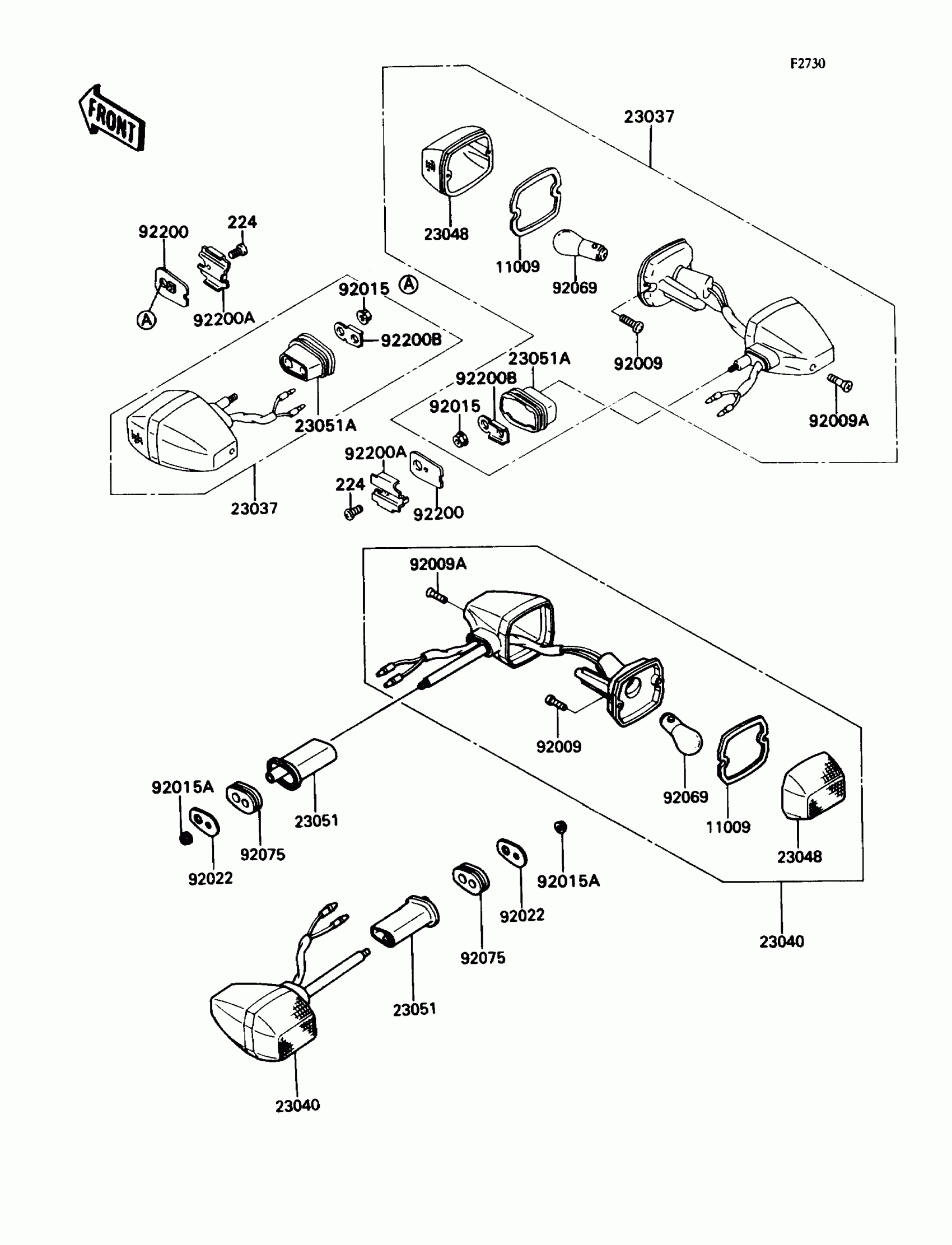

Kawasaki Ninja® ZX™-7 Turn Signals Diagram

Description

Price

11009

GASKET,SIGNAL LAMP

11009-1402

$5.54

23037

LAMP-ASSY-SIGNAL,FR

23037-1257

$65.08

23040

LAMP-SIGNAL,RR

23040-1195

$60.18

23048

LENS-SIGNAL LAMP

23048-1054

$10.47

23051

BRACKET-SIGNAL LAMP

23051-1164

$11.44

23051A

BRACKET-SIGNAL LAMP,FR

23051-1207

$20.04

92009

SCREW,TAPPING,3X16

92009-1115

$1.76

92009A

SCREW,TAPPING,4X20

92009-1304

$4.80

92015

NUT,FLANGED,6MM

92015-1193

Unavailable

92015A

NUT,FLANGED,6MM

92015-1367

$3.69

92022

WASHER,SIGNAL LAMP

92022-1672

$5.59

92069

BULB,12V 32CP(23W)

92069-055

$5.18

92075

DAMPER,SIGNAL LAMP

92075-1698

$9.57

92200

WASHER,SIGNAL LAMP

92200-1015

$6.29

92200A

WASHER,SIGNAL LAMP

92200-1016

$7.62

92200B

WASHER

92200-1021

$7.62

224

SCREW-PAN-WP-CROS,4X8

224C0408

$3.67
