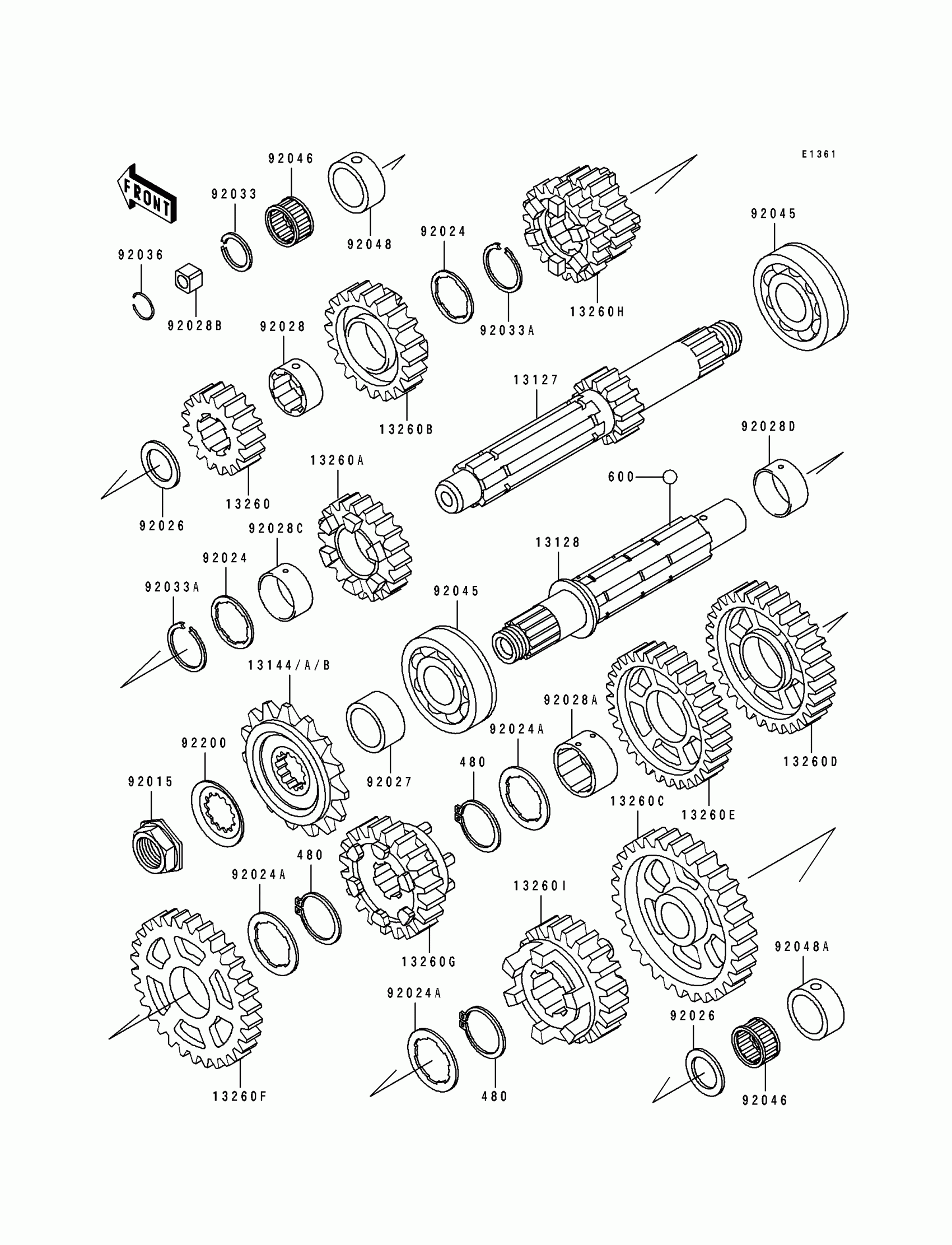

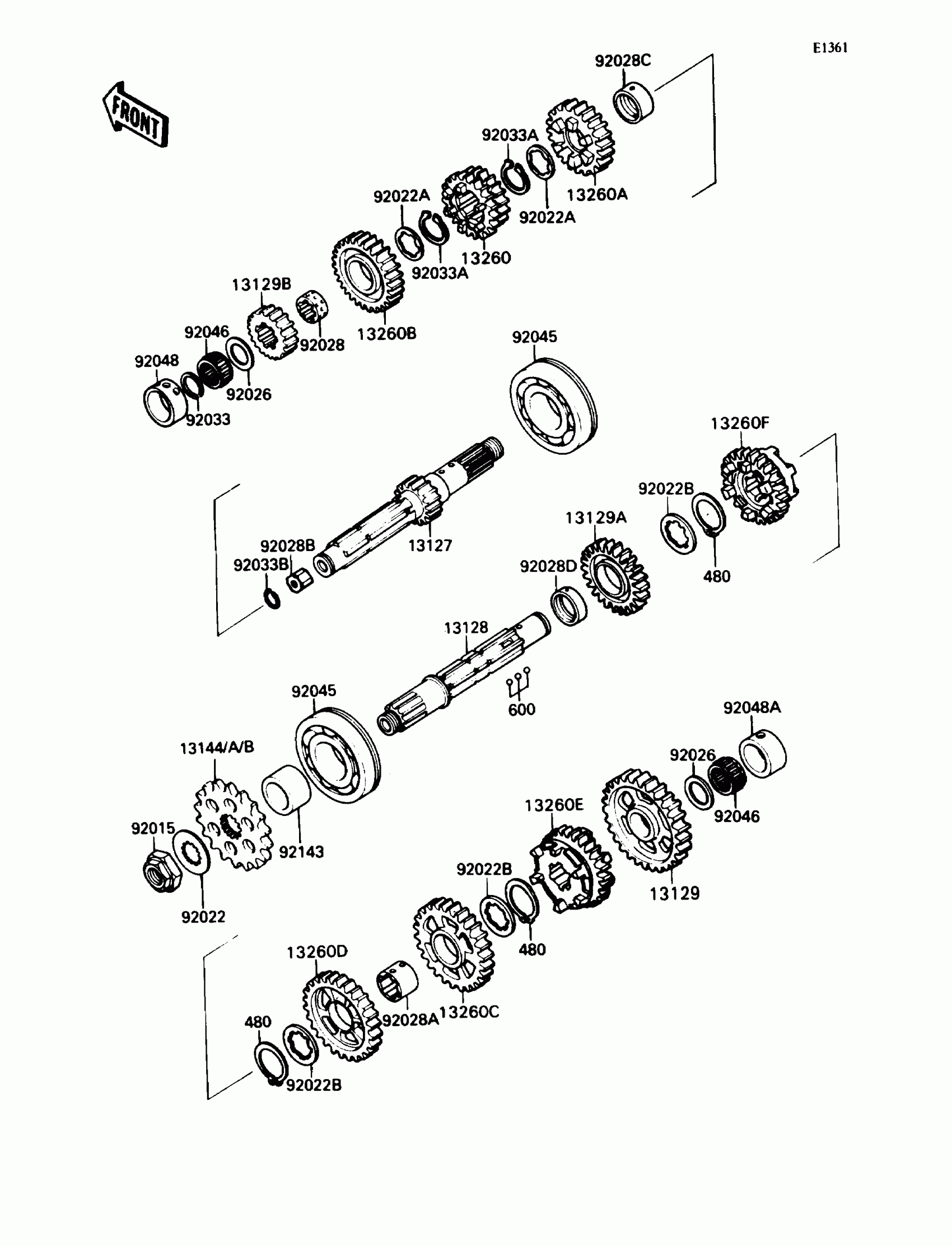

Kawasaki Ninja® ZX™-7 Transmission Diagram

SHAFT-TRANSMISSION INPUT,13T

13127-1182

Unavailable

SHAFT-TRANSMISSION OUTPUT

13128-1168

Unavailable

GEAR,OUTPUT LOW,38T

13129-1814

Unavailable

GEAR,OUTPUT 2ND,34T

13129-1898

Unavailable

GEAR,INPUT 2ND,16T

13129-1971

Unavailable

SPROCKET-OUTPUT,17T(#530)

13144-1009

Unavailable

SPROCKET-OUTPUT,15T(#530)

13144-1117

Unavailable

SPROCKET-OUTPUT,16T

13144-1129

Unavailable

GEAR,INPUT 3RD&4TH,21T&21T

13260-1025

Unavailable

GEAR,INPUT 5TH,23T

13260-1026

Unavailable

GEAR,INPUT TOP,24T

13260-1027

Unavailable

GEAR,OUTPUT 3RD,35T

13260-1028

Unavailable

GEAR,OUTPUT 4TH,29T

13260-1029

$208.26

GEAR,OUTPUT 5TH,28T

13260-1030

Unavailable

GEAR,OUTPUT TOP,26T

13260-1031

Unavailable

NUT,20MM

92015-1254

$14.90

WASHER,TOOTHED,25.5X42X1

92022-1076

$6.63

WASHER,TOOTHED,28.3X33.5X1

92022-1139

$7.22

WASHER,TOOTHED,30.3X40X1.5

92024-043

$13.07

SPACER,22X35.5X2.1

92026-1224

$9.57

BUSHING,INPUT TOP GEAR

92028-1255

$40.34

BUSHING,OUTPUT 3RD&4TH

92028-1363

$45.49

BUSHING

92028-1448

Unavailable

BUSHING,INPUT GEAR

92028-1449

$25.59

BUSHING,OUTPUT 2ND

92028-1450

$28.99

RING-SNAP,20X25.5X1.2

92033-025

$4.96

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

RING-SNAP

92036-005

$4.07

BEARING-BALL,6305N2SH2

92045-1224

$36.90

BEARING-NEEDLE,FWF-223014

92046-031

$19.72

RACE,NEEDLE BEARING

92048-1066

$34.85

RACE,0RZ30X38X17PX1

92048-1067

$51.46

COLLAR,25X32X25.9

92143-1293

$26.63

CIRCLIP

480J2900

$6.22

BALL-STEEL,5/32

600A0500

$0.81
