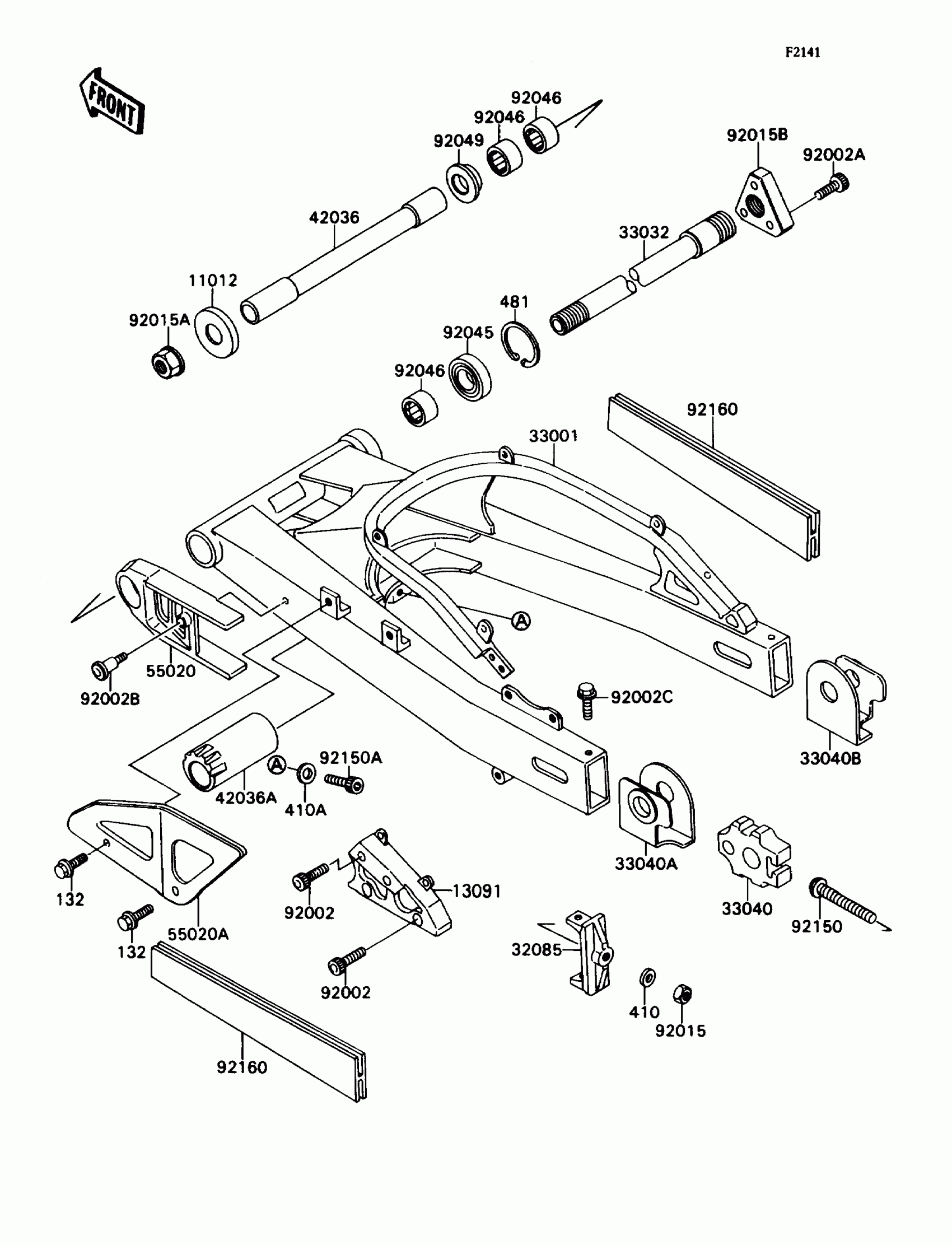

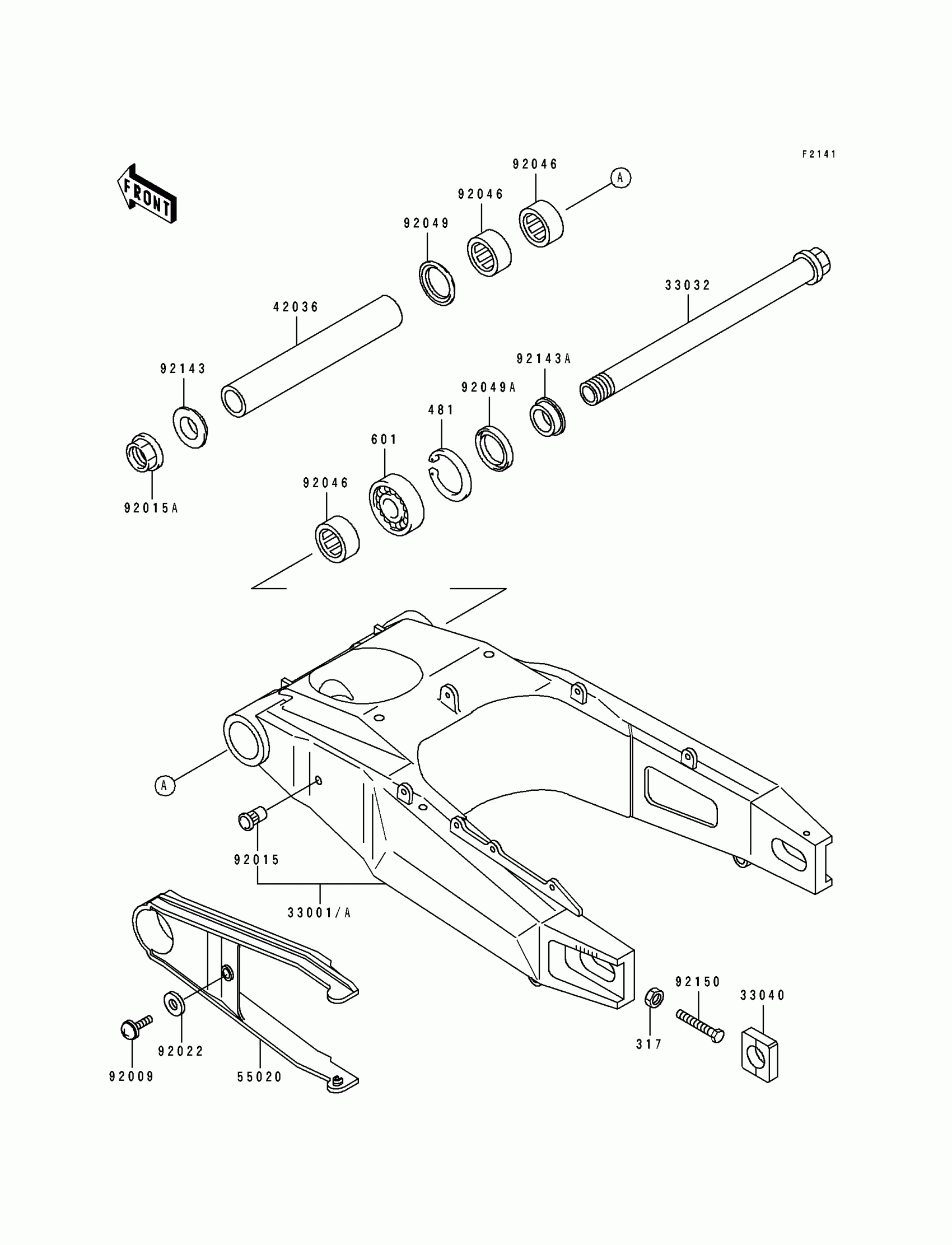

Kawasaki Ninja® ZX™-7 Swingarm Diagram

#

Description
Price

11012

CAP

11012-1658

$8.68

13091

HOLDER,SWING ARM,SILVER NO.25

13091-1605-CE

Unavailable

32085

STOPPER,CHAIN ADJUSTER

32085-1319

$22.53

33001

ARM-COMP-SWING,SILVER NO.25

33001-1334-CE

$655.62

33032

SHAFT-SWING ARM

33032-1150

$81.84

33040

ADJUSTER-CHAIN

33040-1101

Unavailable

33040A

ADJUSTER-CHAIN,LH

33040-1102

$19.41

33040B

ADJUSTER-CHAIN,RH

33040-1105

$19.41

42036

SLEEVE,SWING ARM,L=241.7

42036-1252

$45.82

42036A

SLEEVE,SWING ARM,L=84

42036-1253

$84.58

55020

GUARD,CHAIN

55020-1307

Unavailable

55020A

GUARD

55020-1348

$43.41

92002

BOLT,SOCKET,8X20

92002-1178

$5.05

92002A

BOLT,SOCKET,8X22

92002-1334

$4.50

92002B

BOLT,SOCKET,6MM

92002-1616

$12.76

92002C

BOLT

92002-1626

$4.44

92015

NUT,10MM

92015-1413

$0.59

92015A

NUT,FLANGED,20MM

92015-1724

$14.90

92015B

NUT

92015-1771

$51.72

92045

BEARING-BALL

92045-1148

$33.68

92046

BEARING-NEEDLE,BM2817

92046-1111

$21.86

92049

SEAL-OIL,28X34X5.7

92049-1181

$9.28

92150

BOLT,10X69

92150-1260

$8.52

92150A

BOLT,SOCKET,10X25

92150-1267

Unavailable

92160

DAMPER,SWING ARM

92160-1157

$35.51

132

BOLT-FLANGED-SMALL,6X12

132E0612

$4.41

410

WASHER,PLAIN,10MM (Canada)

410D1000

Unavailable

410A

W-PLAIN-S

410E1000

$0.59

481

CIRCLIP-TYPE-C,42MM

481J4200

$6.16
