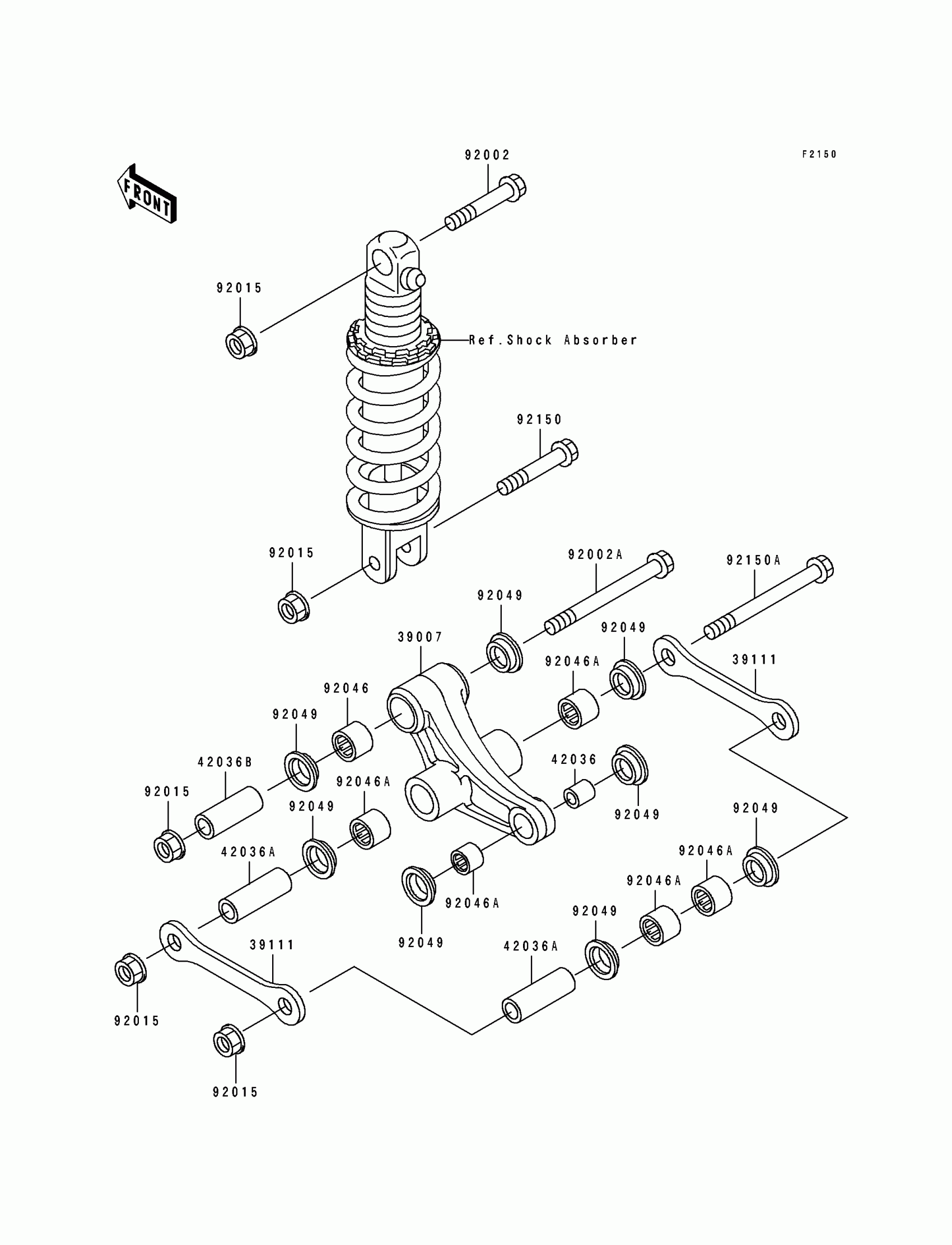

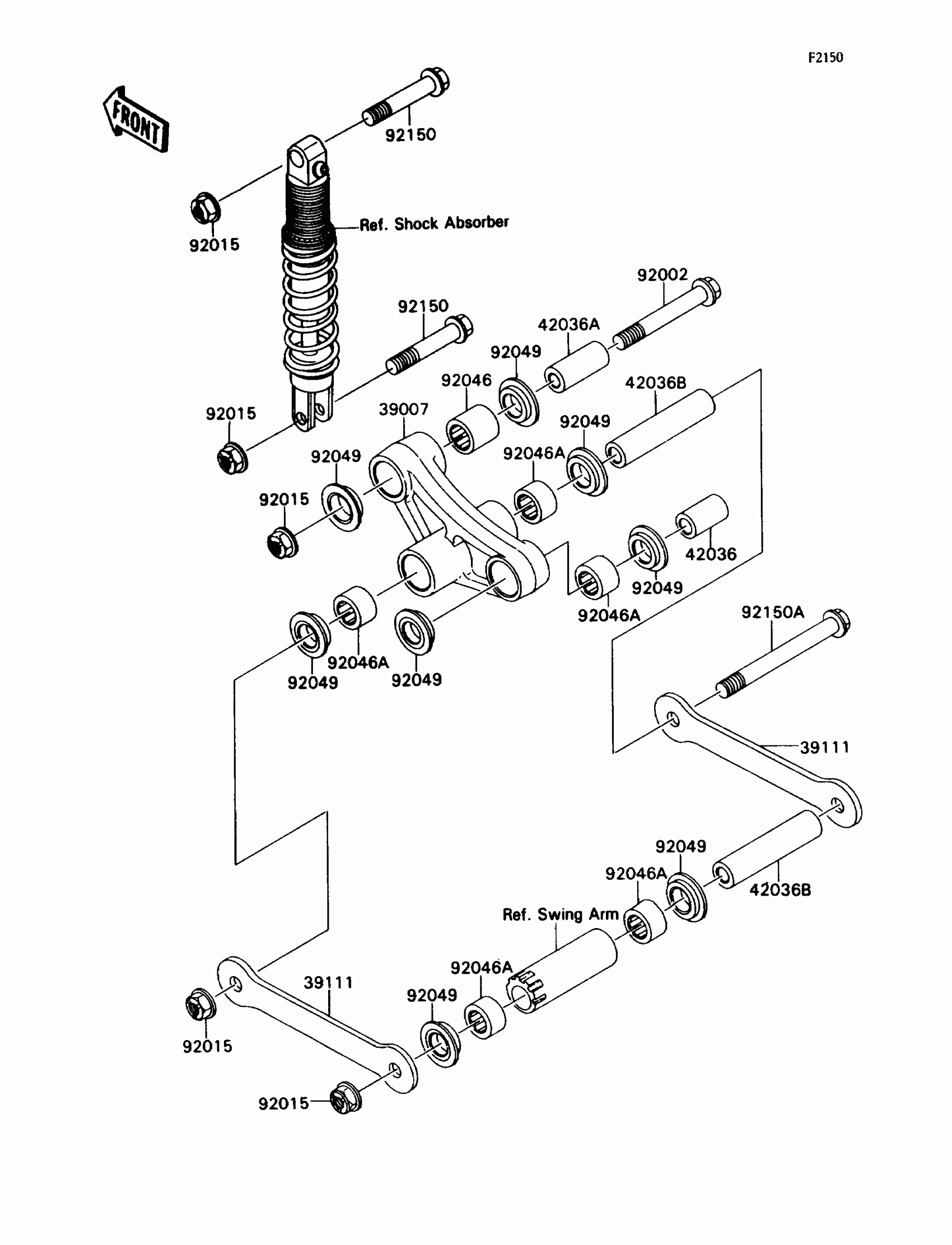

Kawasaki Ninja® ZX™-7 Rear Suspension Diagram

Description

Price

39007

ARM-SUSP,UNI TRAK

39007-1174

$241.61

39111

ROD-TIE

39111-1097

$23.98

42036

SLEEVE,12.1X20X32

42036-1077

$15.76

42036A

SLEEVE,12.1X20X44

42036-1129

Unavailable

42036B

SLEEVE,12.1X20X88

42036-1250

$33.38

92002

BOLT,12X85

92002-1255

$17.07

92015

NUT,LOCK,FLANGED,12MM

92015-1433

$6.75

92046

BEARING-NEEDLE,BM202726

92046-1110

$18.91

92046A

BEARING-NEEDLE,BM202715

92046-1112

$16.90

92049

SEAL-OIL,ARM

92049-1109

$7.08

92150

BOLT,FLANGED,12X63

92150-1258

$9.66

92150A

BOLT,FLANGED,12X112

92150-1259

Unavailable
