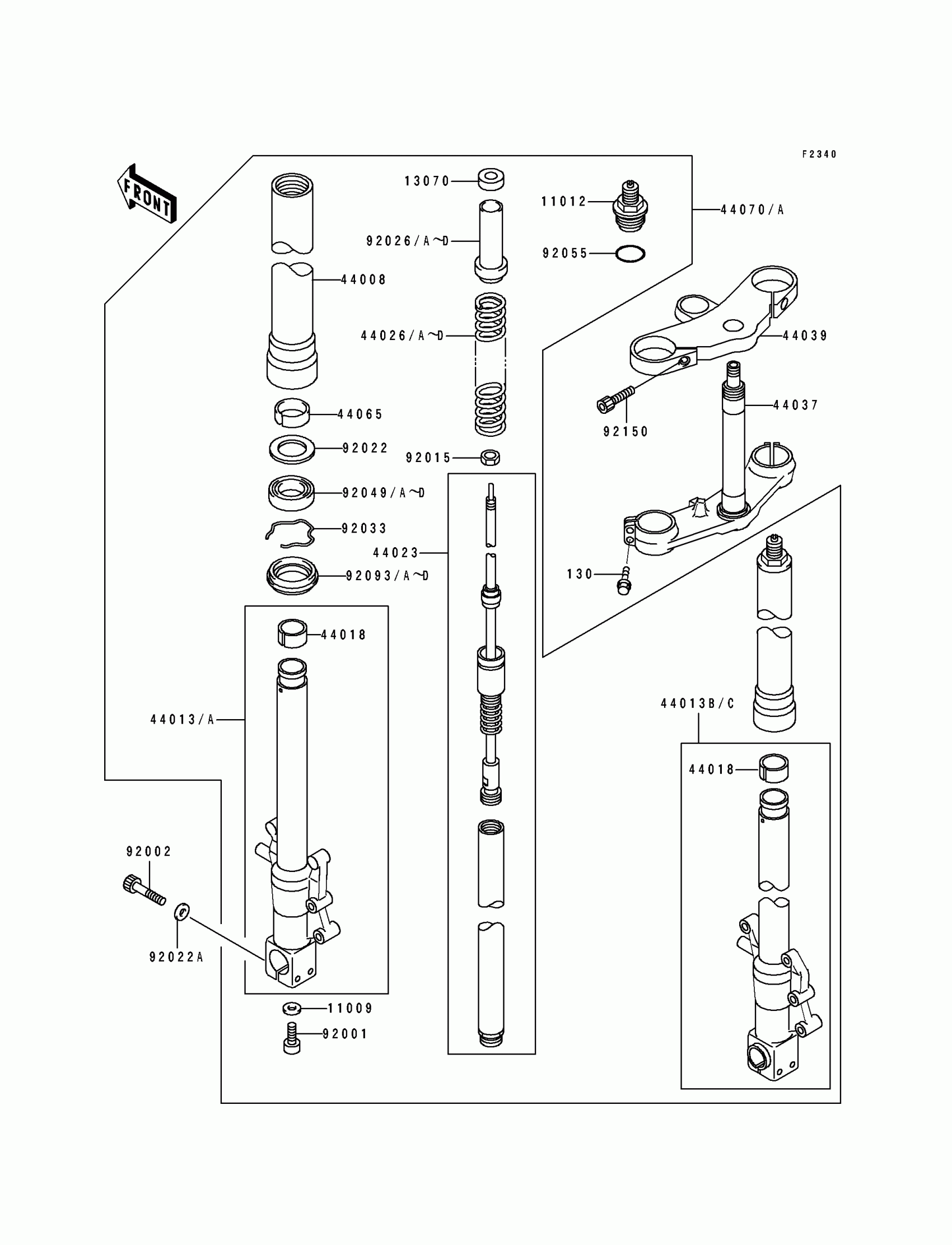

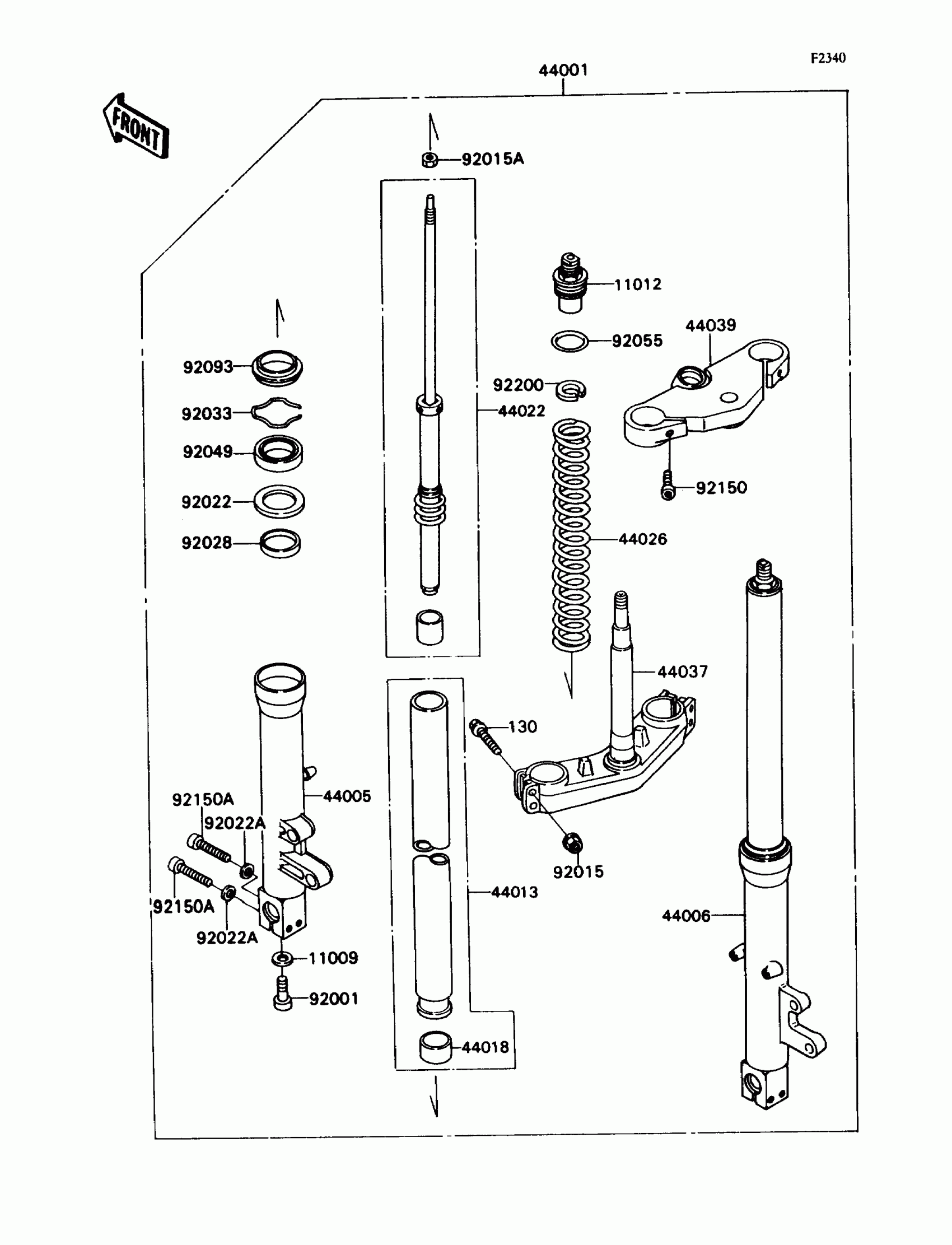

Kawasaki Ninja® ZX™-7 Front Fork Diagram

#

Description
Price

11009

GASKET,FORK CYLINDER BOLT

11009-1127

$3.95

11012

CAP

11012-1716

Unavailable

44001

FORK-FRONT

44001-1720

$2,098.42

44005

PIPE-LEFT FORK OUTER

44005-1294

$439.27

44006

PIPE-RIGHT FORK OUTER

44006-1291

$439.27

44013

PIPE-FORK INNER

44013-1297

Unavailable

44018

PISTON-FORK,INNER PIPE

44018-1053

$25.19

44022

CYLINDER-FORK

44022-1242

$138.47

44026

SPRING-FRONT FORK

44026-1435

$91.27

44037

HOLDER-FORK UNDER

44037-1250

$406.17

44039

HOLDER-FORK UPPER

44039-1187

$288.43

92001

BOLT,FORK CYLINDER

92001-1309

$5.81

92015

NUT,FLANGED,8MM

92015-1485

$4.26

92015A

NUT

92015-1795

$4.85

92022

WASHER

92022-1299

$6.55

92022A

WASHER

92022-1598

$8.20

92028

BUSHING

92028-1553

$17.61

92033

RING-SNAP

92033-1077

$3.78

92049

SEAL-OIL

92049-1342

$23.37

92055

RING-O

92055-1123

$4.67

92093

SEAL

92093-1285

$19.36

92150

BOLT,SOCKET,8X25

92150-1172

$1.49

92150A

BOLT,SOCKET,8X40

92150-1194

$1.98

92200

WASHER

92200-1023

Unavailable

130

BOLT-FLANGED,8X50

130G0850

Unavailable
