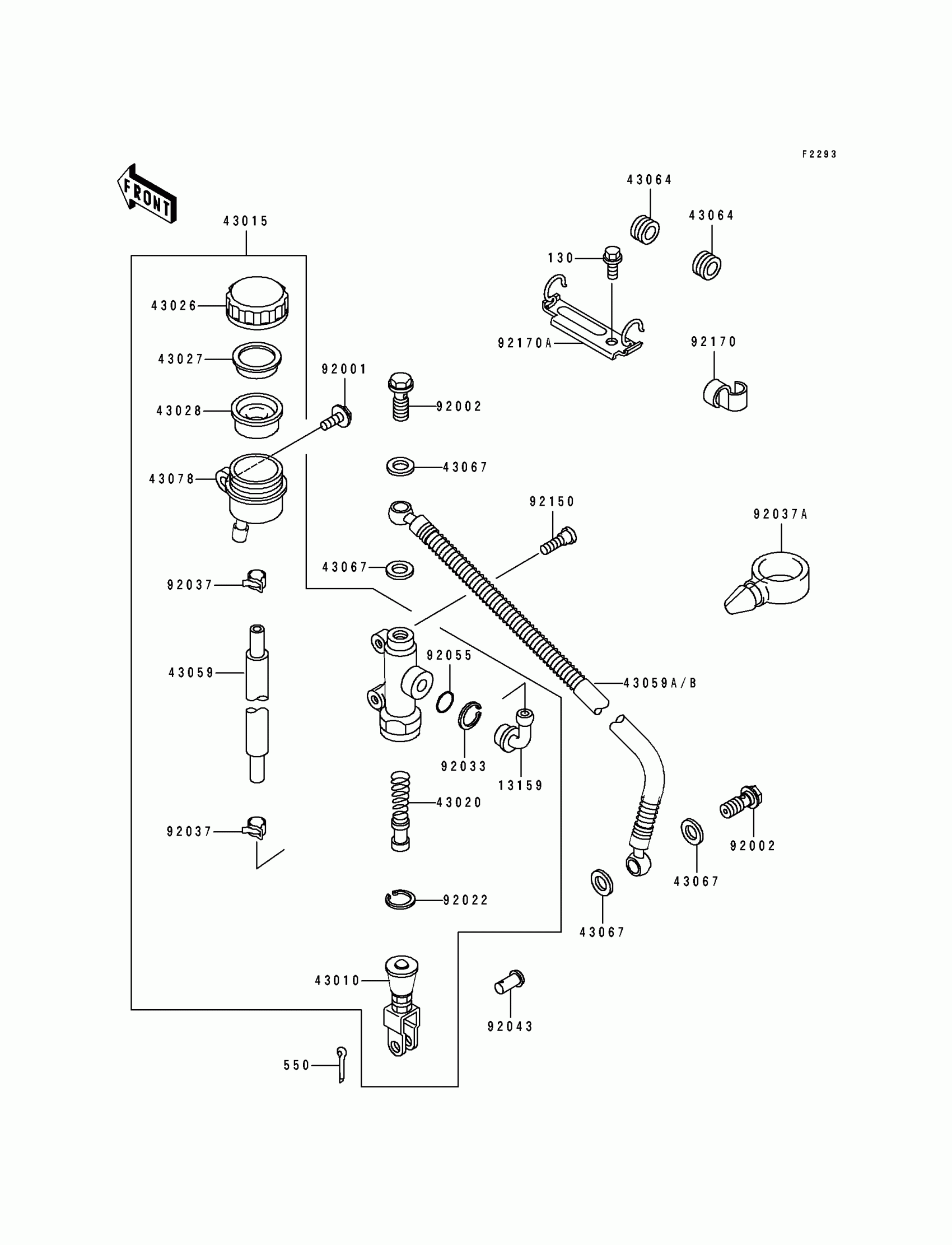

Kawasaki Ninja® ZX™-7 Rear Master Cylinder Diagram

#

Description
Price

11046

BRACKET,RESERVOIR

11046-1542

Unavailable

13159

CONNECTOR,RR MASTER CYLINDER

13159-1052

$13.39

43010

ROD-ASSY-BRAKE

43010-1055

$70.35

43015

CYLINDER-ASSY-MASTER,RR

43015-1393

$424.38

43020

PISTON-COMP-BRAKE

43020-1057

$58.51

43026

CAP-BRAKE

43026-1051

$30.63

43027

PLATE-DIAPHRAGM

43027-1051

$4.04

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$14.40

43059

HOSE-BRAKE,RR

43059-1480

Unavailable

43059A

HOSE-BRAKE

43059-1487

$18.27

43078

RESERVOIR,RR MASTER CYLINDER

43078-1058

$30.87

92001

BOLT,6X20

92001-1460

$2.99

92002

BOLT,OIL,L=23

92002-1888

$4.15

92022

WASHER,10.5X15X1.5

43067-001

$1.57

92022A

WASHER,CIRCRIP

92022-1601

Unavailable

92033

RING-SNAP,20.5MM

92033-1186

$3.78

92037

CLAMP,BRAKE HOSE

92037-1547

$11.81

92037A

CLAMP,HOSE

92037-1827

$5.69

92043

PIN,8MM

92043-1303

$2.98

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92081

SPRING,MASTER CYLINDER

92081-1737

$11.69

92144

SPRING,BRAKE HOSE

92144-1057

$14.68

130

BOLT-FLANGED

130H0608

Unavailable

130A

BOLT-FLANGED,6X12

130H0612

Unavailable

132

BOLT-FLANGED-SMALL,8X30

132J0830

Unavailable

550

PIN COTTER 2.0X15

550D2015

Unavailable
