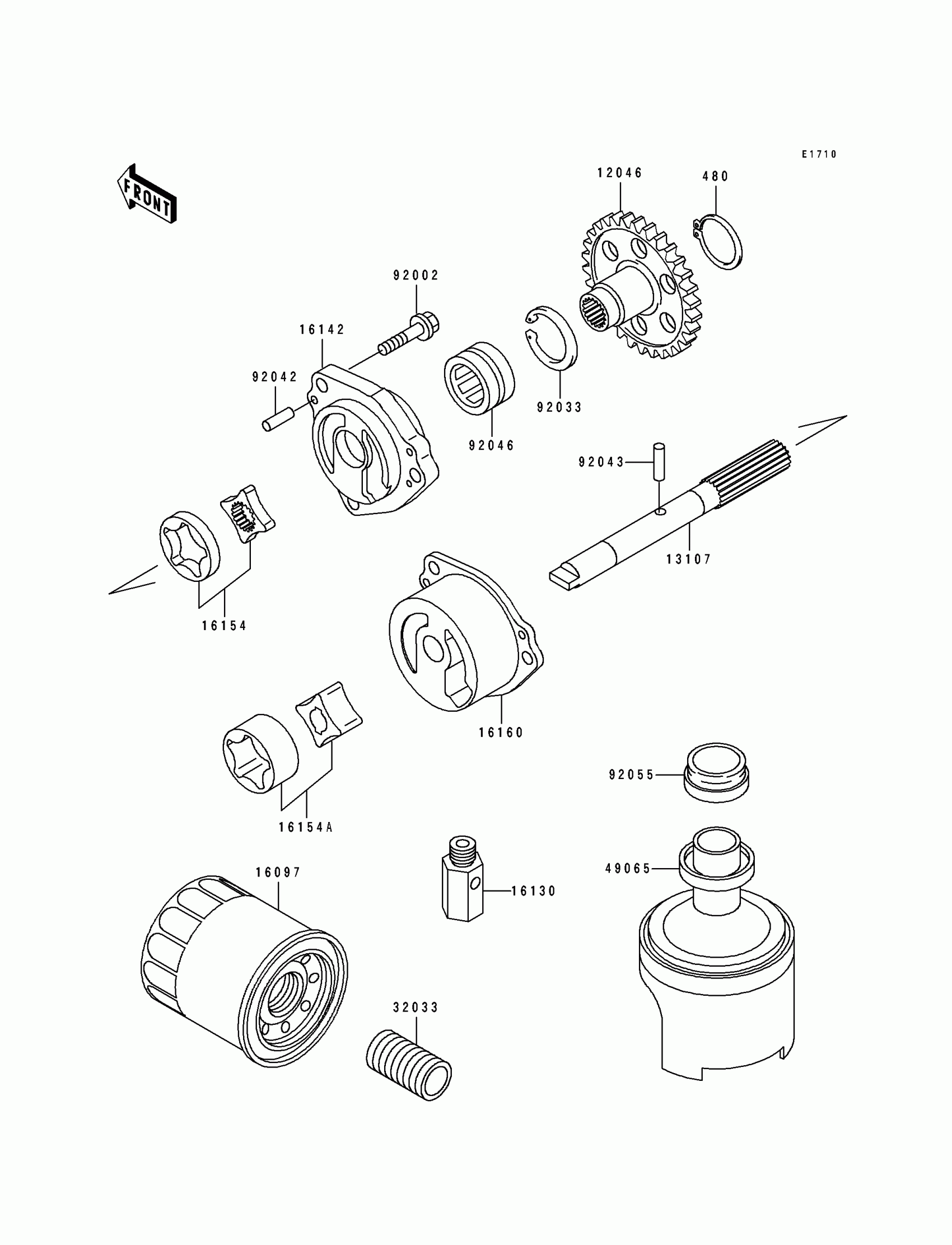

Kawasaki Ninja® ZX™-7 Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,25T

12046-1093

Unavailable

13091

HOLDER,OIL PUMP

13091-1439

Unavailable

13107

SHAFT

13107-1199

Unavailable

16082

PUMP-ASSY-OIL

16082-1083

$215.81

16130

VALVE-ASSY-RELIEF

16130-1054

$43.03

16142

COVER-PUMP

16142-1075

Unavailable

16154

ROTOR-PUMP

16154-1063

$59.74

49065

FILTER-OIL

49065-1062

Unavailable

92002

BOLT,6X38

92002-1431

$4.85

92002A

BOLT,6X30

92002-1797

$5.71

92002B

BOLT,6X14

92002-1859

Unavailable

92026

SPACER

92026-1284

$5.47

92043

PIN,6.2X8X21

92043-1335

$3.41

92043A

92043-1353

$4.63

92043B

92043-1354

$4.39

92055

RING-O,19.5MM

92055-077

$4.47

92055A

RING-O,16.3X3.5

92055-1353

Unavailable

92055B

RING-O,OIL FILTER

92055-1354

$7.25

92066

PLUG,ROCKER SHAFT

92066-1188

$15.88

220

SCREW-PAN-CROS,6X16

220B0616

Unavailable

220A

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

670

O RING,20MM

670B2020

$0.97
