1989 Kawasaki Ninja® ZX™-7 Oil Filter Diagram

← All diagrams

Find the part on the Oil Filter diagram for your 1989 Kawasaki Ninja® ZX™-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

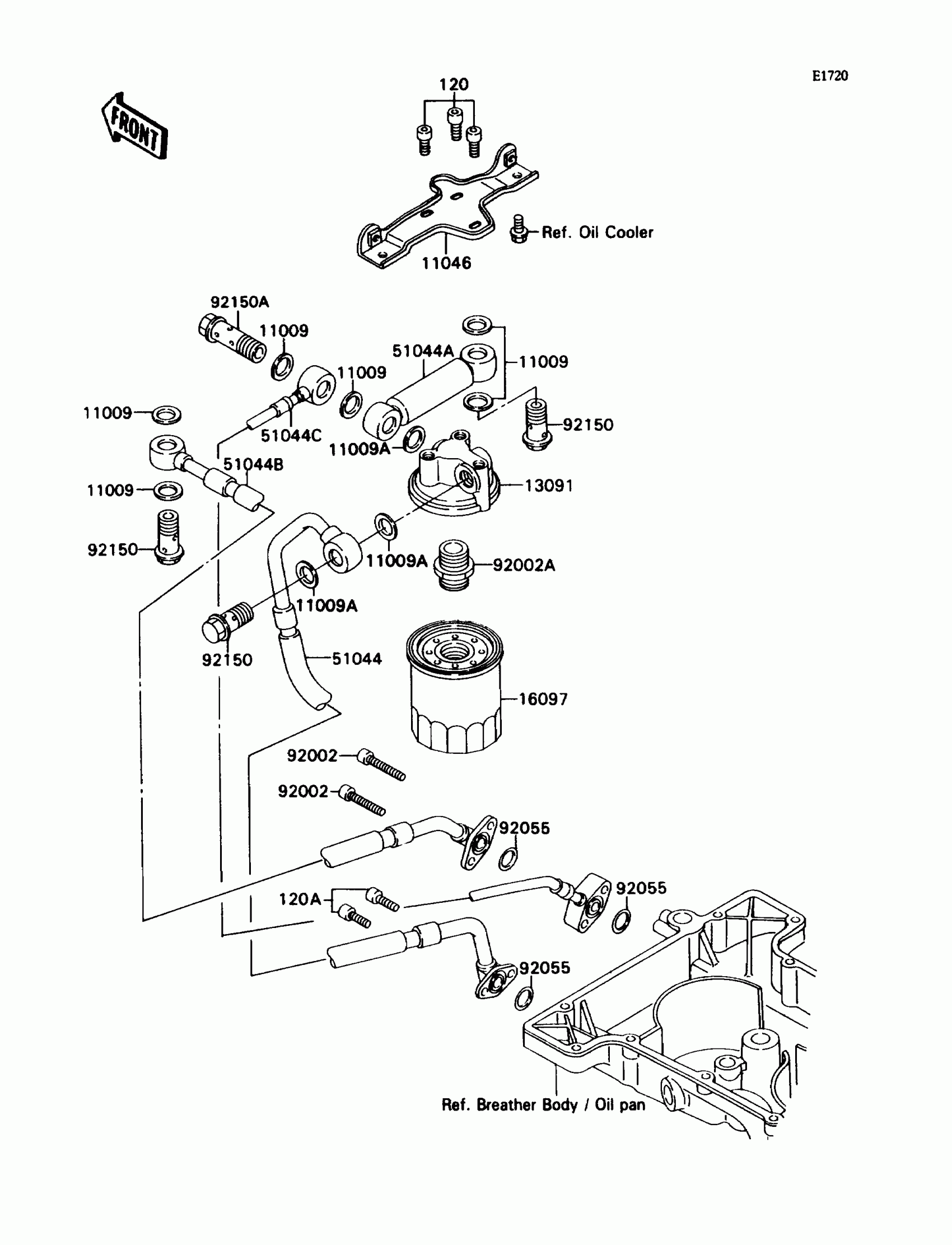

1989 Kawasaki Ninja® ZX™-7 Oil Filter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,14X19.5X1.4

11009-1461

1

$4.23

In stock

11009A

GASKET,14X21.5X1.4

11009-1877

1
Out of stock

11046

BRACKET,OIL FILTER

11046-1578

1
Out of stock

13091

HOLDER,OIL FILTER

13091-1599

1
Out of stock

16097

FILTER-ASSY-OIL

16097-1061

1

$11.46

In stock

51044

1

$271.86

In stock

51044A

1

$108.92

In stock

51044B

1

$271.86

In stock

51044C

TUBE-ASSY

51044-1111

1

$159.00

In stock

92002

BOLT,6X35

92002-1270

1

$4.59

In stock

92002A

BOLT,OIL FILTER

92002-1899

1
Out of stock

92055

RING-O,1.9X15.8

92055-1460

1
Out of stock

92150

BOLT,BANJO,14X28.5

92150-1242

1

$9.68

In stock

92150A

BOLT,BANJO,14X46

92150-1324

1

$23.75

In stock

120

BOLT-SOCKET,6X14

120S0614

1
Out of stock

120A

BOLT-SOCKET,6X16

120S0616

1
Out of stock
