1989 Kawasaki Ninja® ZX™-7 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 1989 Kawasaki Ninja® ZX™-7, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

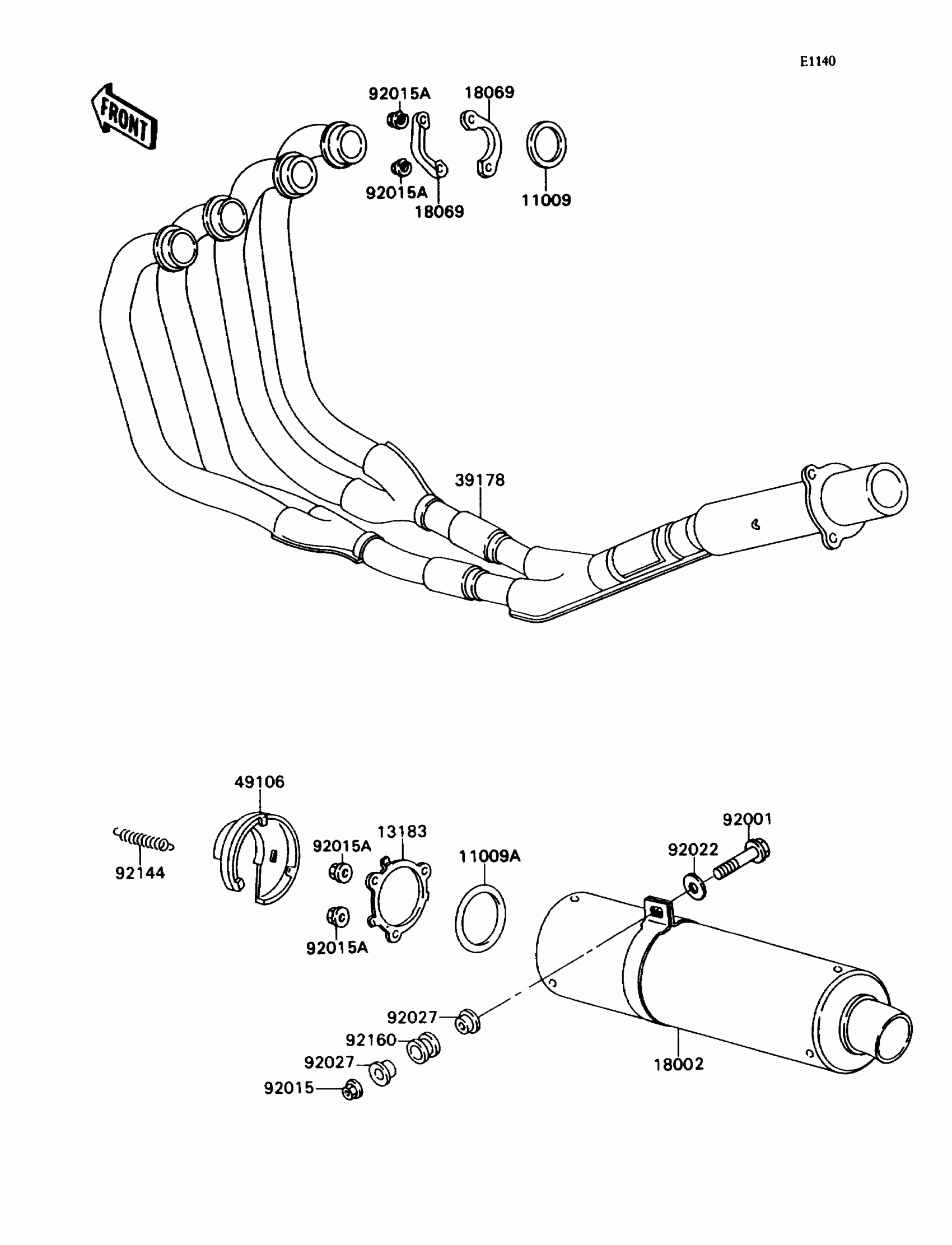

1989 Kawasaki Ninja® ZX™-7 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

GASKET,EXHAUST PIPE

11009-1906

1
Out of stock

11009A

GASKET,MUFFLER CONNECTING

11009-1907

1
Out of stock

13183

PLATE

13183-1473

1
Out of stock

18002

BODY-COMP-MUFFLER

18002-1923

1
Out of stock

18069

HOLDER-EXHAUST PIPE

18069-1072

1
Out of stock

39178

1

$853.67

In stock

49106

COVER-MUFFLER

49106-1113

1
Out of stock

92001

BOLT,FLANGED,8X35

92001-1910

1
Out of stock

92015

NUT,8MM

92015-1143

1
Out of stock

92015A

NUT,LOCK,8MM

92015-1380

1
Out of stock

92022

WASHER,8.5X19X1.2

92022-3730

1
Out of stock

92027

COLLAR,FLANGED,8.8X10.6

92027-1653

1
Out of stock

92144

SPRING,MUFFLER CONNECTING,IN

92144-1386

1
Out of stock

92160

DAMPER,MUFFLER MOUNT

92160-1116

1
Out of stock
