Partiron

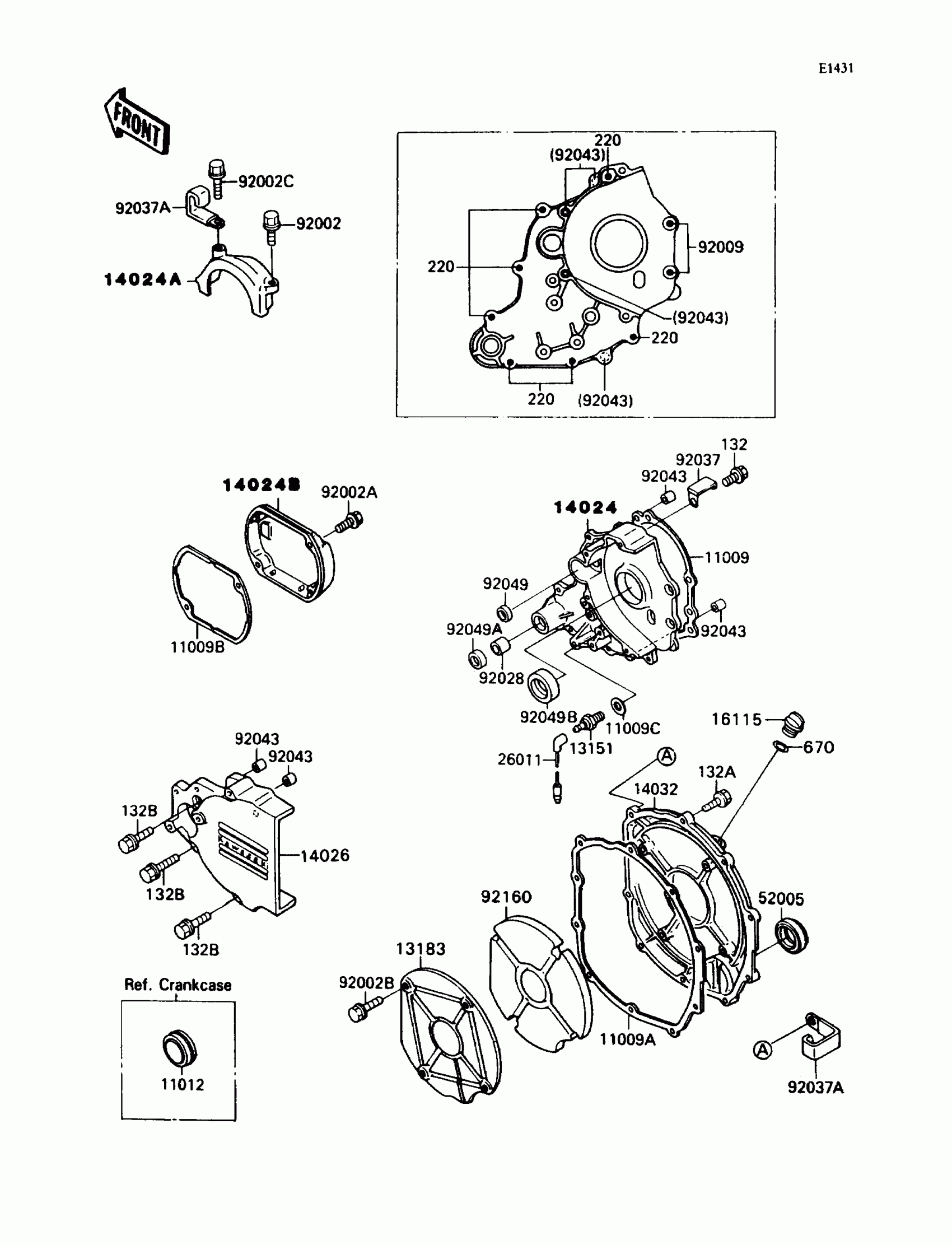

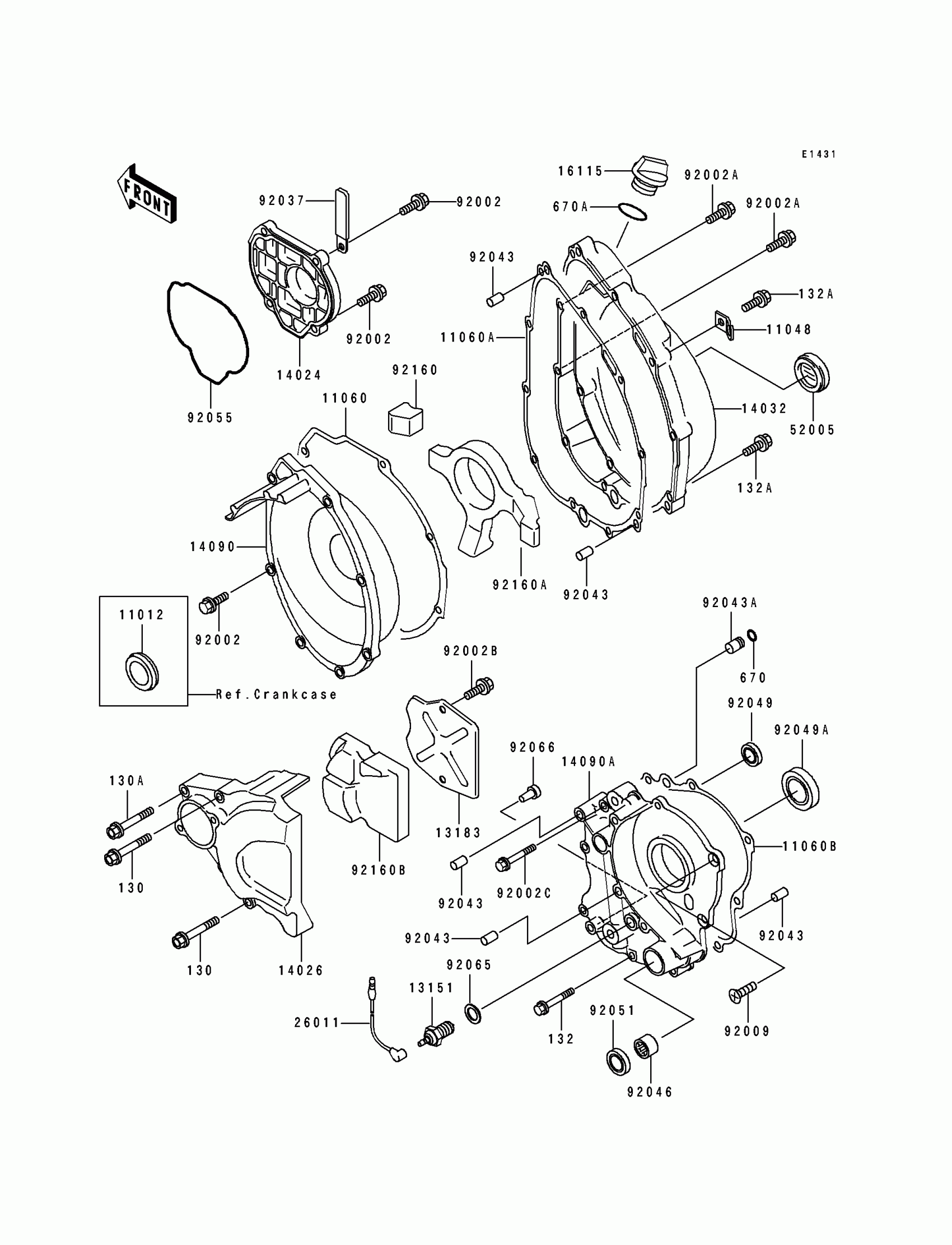

Kawasaki Ninja® ZX™-7 Engine Cover(s) Diagram

#

Description
Price

11009

GASKET,TRANSMISSION COVER

11009-1901

$20.61

11009A

GASKET,CLUTCH

11009-1902

Unavailable

11009B

GASKET,PULSING COIL COVER

11009-1904

Unavailable

11009C

GASKET,10.5X16X1

92065-058

$3.03

11012

CAP,LH,RCA378

11012-1540

Unavailable

13151

SWITCH-COMP,NEUTRAL

13151-1007

Unavailable

13183

PLATE

13183-1366

Unavailable

14024

COVER,TRANSMISSION

14024-1305

Unavailable

14024A

COVER,GENERATOR,UPP

14024-1836

Unavailable

14024B

COVER,RH

14024-1926

Unavailable

14026

COVER-CHAIN

14026-1144

Unavailable

14032

COVER-CLUTCH

14032-1270

$191.12

16115

CAP-OIL FILLER

16115-1053

$9.28

26011

WIRE-LEAD

26011-1384

Unavailable

52005

GAUGE,OIL LEVEL

52005-1057

$20.45

92002

BOLT,6X20

92002-1343

$5.71

92002A

BOLT,6X25

92002-1344

Unavailable

92002B

BOLT,6X10

92002-1449

$3.68

92002C

BOLT,6X30

92002-1534

$5.42

92009

SCREW,6X20

92009-1447

Unavailable

92028

BUSHING,13X15X20

92028-1251

$12.03

92037

CLAMP,LEAD WIRE

92037-1876

Unavailable

92037A

CLAMP

92037-1877

$5.71

92043

PIN,DOWEL,6.3X8X14

92042-007

$4.31

92049

SEAL-OIL,SD-8187

92049-1017

$7.87

92049A

SEAL-OIL,TB13205

92049-1186

$6.46

92049B

SEAL-OIL,TC32488

92049-1361

$5.18

92160

DAMPER,SOUND ARRESTER

92160-1117

$146.50

132

BOLT-FLANGED-SMALL,6X10

132J0610

Unavailable

132A

BOLT-FLANGED-SMALL,6X20

132J0620

Unavailable

132B

BOLT-FLANGED-SMALL

132J0645

Unavailable

220

SCREW-PAN-CROS,6X20,WHITE

220B0620

$4.40

670

O RING,20MM

670B2020

$0.97
