Description

Price

11048

BRACKET,FUEL TAP

11048-1150

Unavailable

14025

COVER,TANK CAP

14025-1913

$21.55

14090

COVER,FUEL TANK

14090-1338

$5.90

32052

BRACKET-TANK,RR

32052-1367

Unavailable

39156

PAD,FUEL TANK,FR

39156-1312

$22.59

39156A

PAD,FUEL TANK,RR

39156-1313

$17.85

39156B

PAD,FUEL TANK,SIDE,RH

39156-1314

$15.31

39156C

PAD,FUEL TANK,SIDE,LH

39156-1315

$13.96

43049

PACKING,TAP VALVE

43049-1066

$7.26

49019

FILTER-FUEL

49019-1070

$18.46

49019A

FILTER-FUEL,"ON"

49019-1074

Unavailable

51023

TAP-ASSY,FUEL

51023-1203

Unavailable

51049

CAP-TANK,FUEL

51049-1091

$115.45

51080

TANK-COMP-FUEL,GREEN/WHITE

51080-5052-CK

$1,223.90

51080B

TANK-COMP-FUEL,EBONY/VIOLET

51080-5054-74

Unavailable

51080D

TANK-COMP-FUEL,GREEN/WHITE

51080-5064-CK

$1,158.56

51080E

TANK-COMP-FUEL,EBONY/VIOLET

51080-5065-74

$1,158.56

53044

TRIM,COWLING COVER

53044-1106

$34.47

53044A

TRIM,L=50

53044-1277

$5.82

53044B

TRIM,L=100

53044-3728

$5.59

92027

COLLAR,L=14.1

92027-1920

$6.57

92027A

COLLAR,6.8X10X14

92027-1966

$5.00

92037

CLAMP,TUBE

92037-147

$7.34

92037A

CLAMP,TUBE

92037-1972

$4.31

92055

RING-O,ID=9.5

92055-1386

$3.92

92055A

RING-O,11.5X1.5

92055-1387

$3.92

92055B

RING-O,TAP LEVER

92055-1419

$5.00

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92140

BALL,STAINLESS,5/32"

92140-1051

$4.74

92143

COLLAR

92143-1515

$20.04

92144

SPRING,FUEL TAP KNOB

92144-1212

$4.35

92160

DAMPER

92160-1162

$5.00

92160A

DAMPER

92160-1513

$7.40

92190

TUBE,FUEL,"ON"

92190-1349

Unavailable

92190A

TUBE,FUEL,"RES"

92190-1350

Unavailable

92190B

TUBE,DRAIN

92190-1418

$22.59

120

BOLT-SOCKET,5X12

120S0512

$1.71

130

BOLT-FLANGED,6X10

130H0610

$1.17

130A

BOLT-FLANGED,6X30,BLACK

130J0630

$4.04

130B

BOLT-FLANGED,6X45,BLACK

130J0645

$4.35

132

BOLT-FLANGED-SMALL,8X20

132J0820

$3.84

220

SCREW-PAN-CROSS

220C0508

$0.55

220A

SCREW-PAN-CROS,6X25,B

220C0625

$3.41

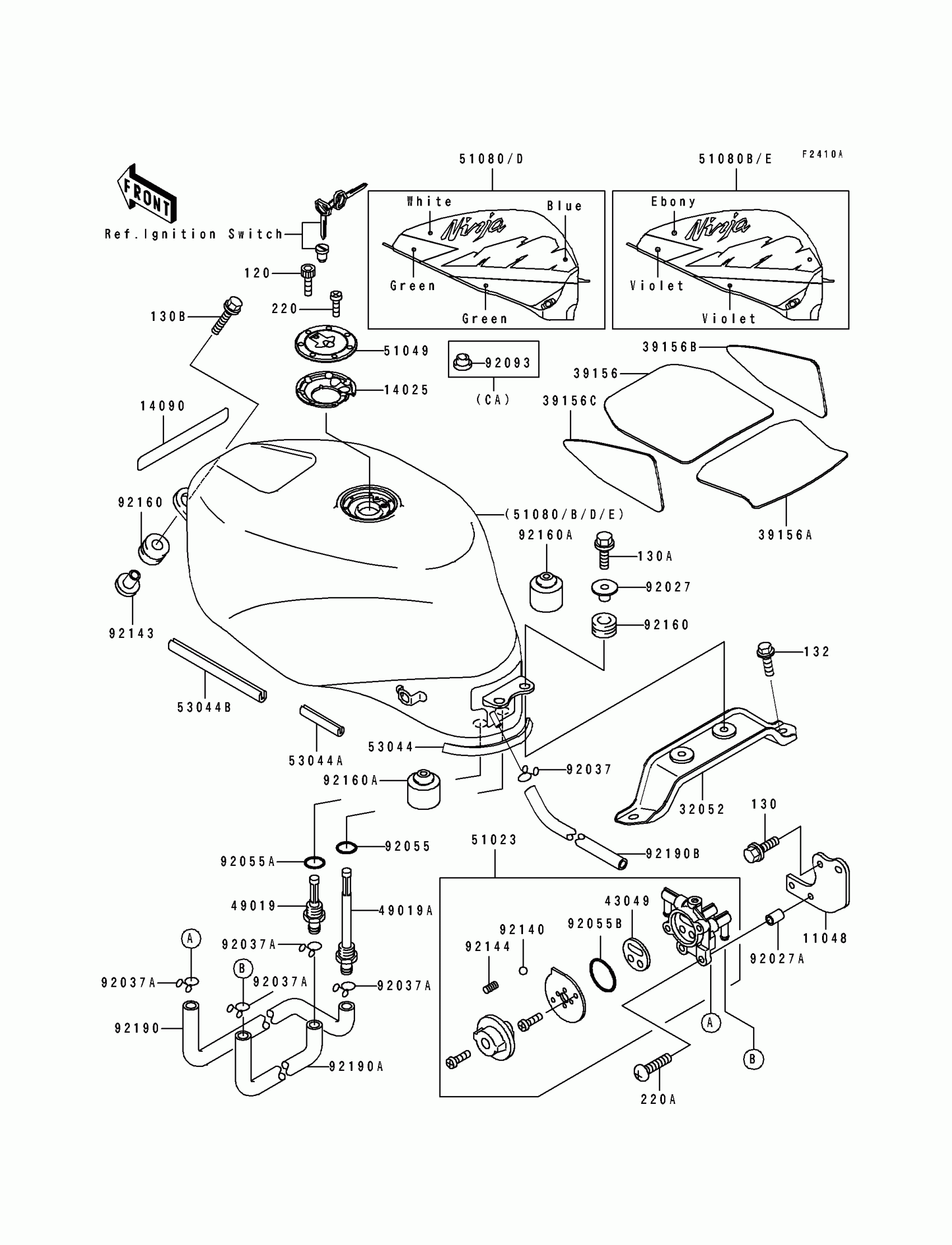

Kawasaki Ninja® ZX™-7 Fuel Tank(ZX750-L2) Diagram

BRACKET,FUEL TAP

COVER,TANK CAP

COVER,FUEL TANK

BRACKET-TANK,RR

PAD,FUEL TANK,FR

PAD,FUEL TANK,RR

PAD,FUEL TANK,SIDE,RH

PAD,FUEL TANK,SIDE,LH

PACKING,TAP VALVE

FILTER-FUEL

FILTER-FUEL,"ON"

TAP-ASSY,FUEL

CAP-TANK,FUEL

TANK-COMP-FUEL,GREEN/WHITE

TANK-COMP-FUEL,EBONY/VIOLET

TANK-COMP-FUEL,GREEN/WHITE

TANK-COMP-FUEL,EBONY/VIOLET

TRIM,COWLING COVER

TRIM,L=50

TRIM,L=100

COLLAR,L=14.1

COLLAR,6.8X10X14

CLAMP,TUBE

CLAMP,TUBE

RING-O,ID=9.5

RING-O,11.5X1.5

RING-O,TAP LEVER

SEAL,FUEL TANK CAP

BALL,STAINLESS,5/32"

COLLAR

SPRING,FUEL TAP KNOB

DAMPER

DAMPER

TUBE,FUEL,"ON"

TUBE,FUEL,"RES"

TUBE,DRAIN

BOLT-SOCKET,5X12

BOLT-FLANGED,6X10

BOLT-FLANGED,6X30,BLACK

BOLT-FLANGED,6X45,BLACK

BOLT-FLANGED-SMALL,8X20

SCREW-PAN-CROSS

SCREW-PAN-CROS,6X25,B
