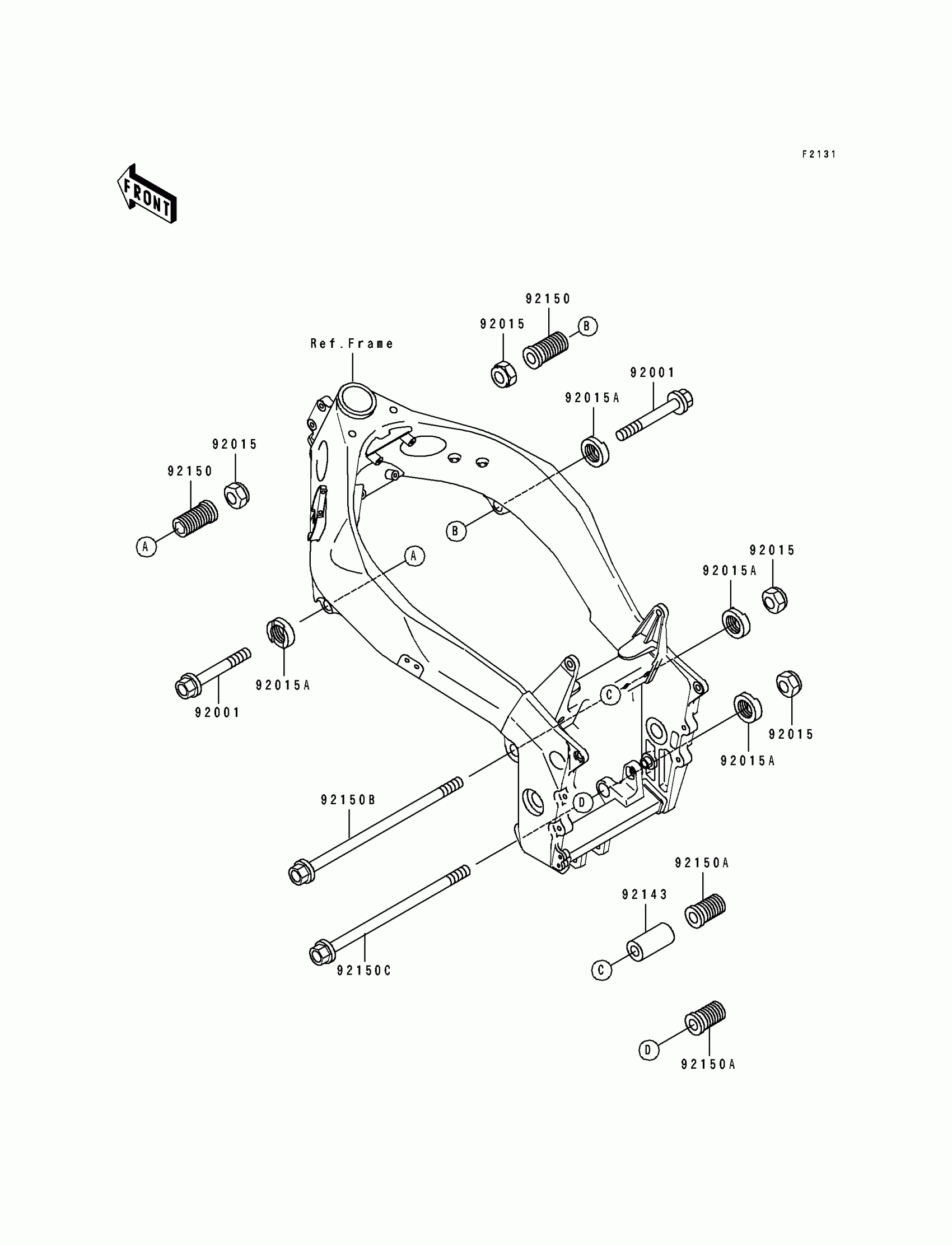

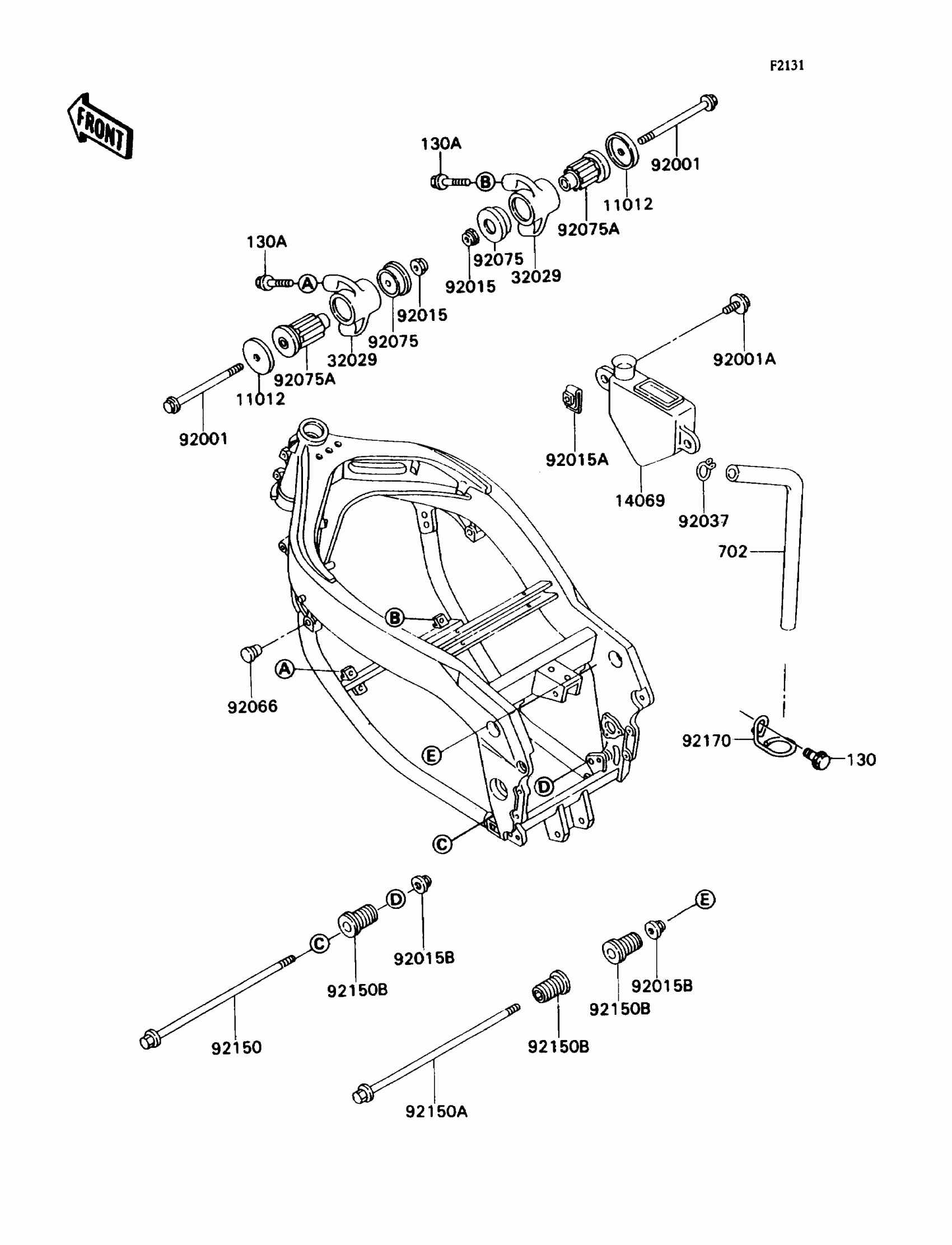

Kawasaki Ninja® ZX™-7 Frame Fittings Diagram

Description

Price

11012

CAP,ENGINE BRACKET

11012-1228

$7.49

14069

BREATHER

14069-1054

Unavailable

32029

BRACKET-ENGINE,FR

32029-1698

Unavailable

92001

BOLT,FLANGED,10X105,BLACK

92001-1751

$8.10

92001A

BOLT,6X20

92001-1826

$2.99

92015

NUT,10MM

92015-1429

$5.15

92015A

NUT,6MM

92015-1602

$5.61

92015B

NUT,10MM

92015-1720

$3.98

92037

CLAMP,TUBE

92037-147

$5.61

92066

PLUG

92066-1220

$4.39

92075

DAMPER,ENGINE MOUNT,SIDE

92075-1274

$16.49

92075A

DAMPER,ENGINE MOUNT,MAIN

92075-1377

$31.41

92150

BOLT,FLANGED,10X220

92150-1189

Unavailable

92150A

BOLT,FLANGED,10X235

92150-1263

Unavailable

92150B

BOLT,20X30

92150-1264

$18.75

92170

CLAMP,HOSE

92170-1117

$5.81

130

BOLT-FLANGED

130J0610

Unavailable

130A

BOLT-FLANGED,8X25,BLACK

130J0825

Unavailable

702

TUBE-RUBBER,7X10X430

702A07430

$10.11
